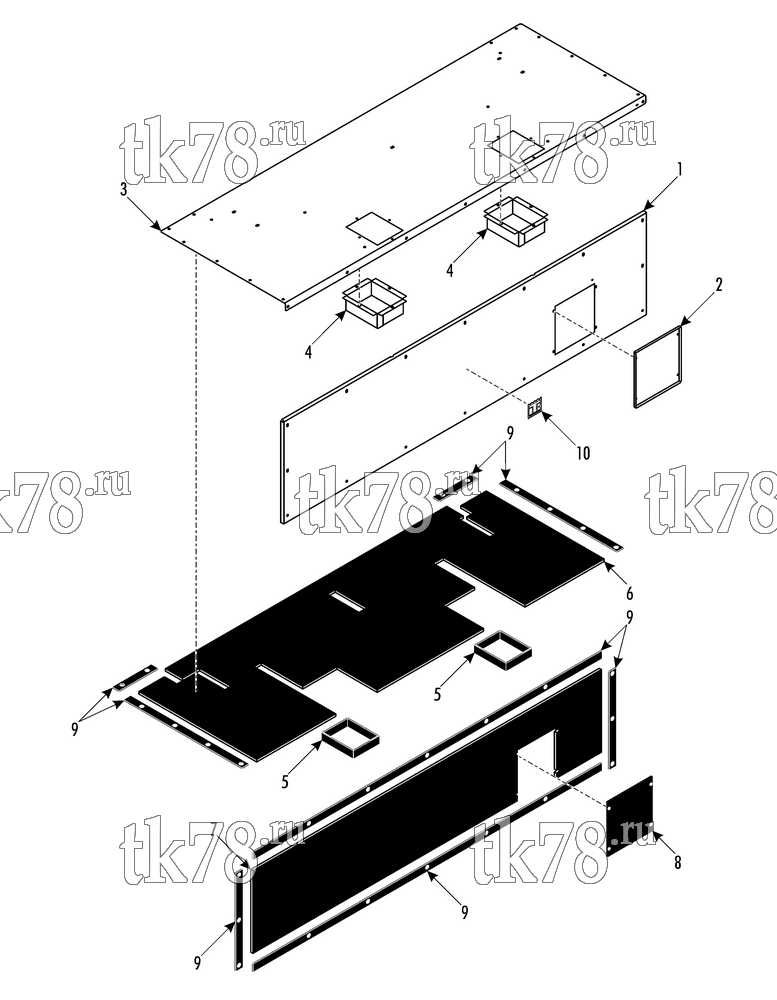

Установкa Thermo King TDD GO TRANSIT схема COVERS & INSULATION – 265G4
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9236 | COVER - back | 1 | |
| 55-6994 | SCREW - cover | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 55-5970 | WASHER - sealing | 16 | ||
| 2 | 93-914 | COVER - door | 1 | |
| 55-7035 | SCREW - cover | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 3 | 98-9237 | COVER - top | 1 | |
| 55-7373 | NUT - captive | 7 | ||
| 55-6994 | SCREW - cover | 19 | ||
| 55-7170 | LOCKWASHER | 19 | ||
| 55-5970 | WASHER - sealing | 14 | ||
| 55-4414 | FLATWASHER | 5 | ||
| 4 | 93-915 | DUCT - blower | 2 | |
| 55-6994 | SCREW - duct | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-5970 | WASHER - sealing | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 5 | 33-2420 | STRIP - neoprene | 2 | |
| 6 | 93-916 | INSULATION - cover top | 1 | |
| 7 | 93-917 | INSULATION - cover back | 1 | |
| 8 | 93-115 | INSULATION | A/R | |
| 9 | 33-2420 | STRIP - neoprene | A/R | |
| 10 | 99-2789 | NAMEPLATE - TK logo | 1 |
