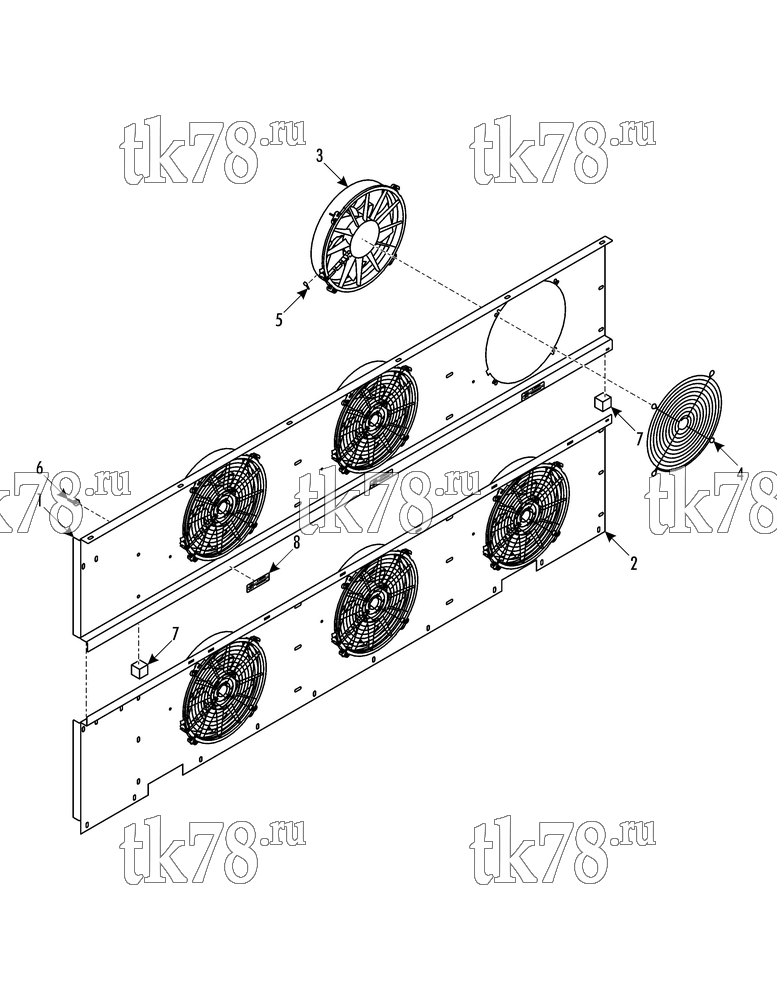

Установкa Thermo King TDD GO TRANSIT схема CONDENSER FAN PANEL – 265G3
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9234 | PANEL - mounting | 1 | |
| 55-6994 | SCREW - panel | 18 | ||
| 55-7170 | LOCKWASHER | 18 | ||
| 51-167 | FLATWASHER | 18 | ||
| 2 | 98-9235 | PANEL - mounting | 1 | |
| 55-6994 | SCREW - panel | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 51-167 | FLATWASHER | 16 | ||
| 55-6994 | SCREW - panel | 7 | ||
| 55-7170 | LOCKWASHER | 7 | ||
| 55-4414 | FLATWASHER | 7 | ||
| 3 | 78-1460 | FAN (24VDC) | 6 | |
| 4 | 98-5425 | GUARD - fan | 6 | |
| 55-7372 | SCREW - guard | 24 | ||
| 55-9190 | LOCKWASHER | 24 | ||
| 51-167 | FLATWASHER | 24 | ||
| 55-7373 | NUT - captive | 24 | ||
| 5 | 56-2330 | BANDWRAP | 6 | |
| 6 | 51-1631 | STRAP - cable | 6 | |
| 7 | 92-4931 | BLOCK - foam | 2 | |
| 8 | 99-6141 | NAMEPLATE - Caution, Fan | 3 |
