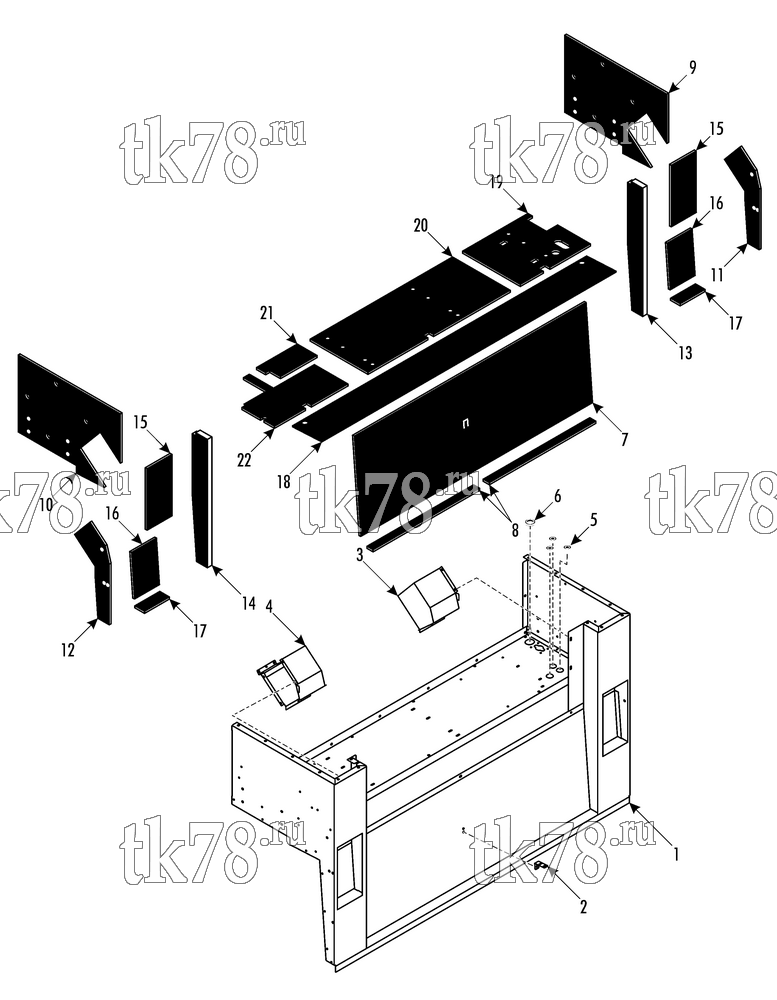

Установкa Thermo King TDD GO TRANSIT схема FRAME - EVAPORATOR – 265G1
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9253 | FRAME - weldment | 1 | |
| 55-7373 | NUT - captive | 29 | ||
| 55-6994 | SCREW - frame | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 55-7075 | FLATWASHER | 16 | ||
| 55-7373 | NUT - captive | 16 | ||
| 2 | 93-920 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 3 | 93-1082 | DUCT - blower extension | 1 | |
| 4 | 93-1083 | DUCT - blower extension | 1 | |
| 55-6994 | SCREW - duct | 14 | ||
| 55-7170 | LOCKWASHER | 14 | ||
| 55-7075 | FLATWASHER | 14 | ||
| 55-7373 | NUT - captive | 12 | ||
| 5 | 33-452 | GROMMET (0.875 id) | 3 | |
| 6 | 33-1770 | GROMMET (1.500 id) | 1 | |
| 7 | 93-1084 | INSULATION | 1 | |
| 8 | 93-1085 | INSULATION | 2 | |
| 9 | 93-1086 | INSULATION | 1 | |
| 10 | 93-1087 | INSULATION | 1 | |
| 11 | 93-1088 | INSULATION | 1 | |
| 12 | 93-1089 | INSULATION | 1 | |
| 13 | 93-1090 | INSULATION | 1 | |
| 14 | 93-1091 | INSULATION | 1 | |
| 15 | 93-1092 | INSULATION | 2 | |
| 16 | 93-1093 | INSULATION | 2 | |
| 17 | 93-1094 | INSULATION | 2 | |
| 18 | 93-1095 | INSULATION | 1 | |
| 19 | 93-1096 | INSULATION | 1 | |
| 20 | 93-1097 | INSULATION | 1 | |
| 21 | 93-1098 | INSULATION | 1 | |
| 22 | 93-1099 | INSULATION | 1 |
