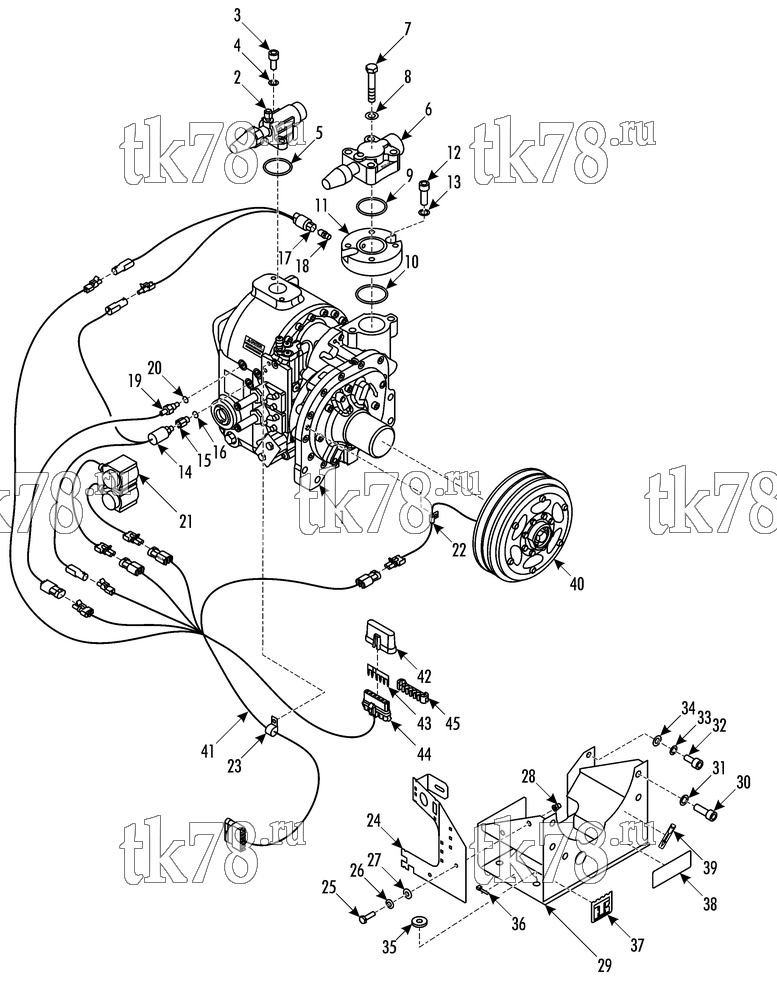

Установкa Thermo King TDD GO TRANSIT схема COMPRESSOR GROUP – 265B7
Обновление от: 3/20/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-915 | COMPRESSOR QS616 (see 193H8) | 1 | |
| 2 | 66-5492 | VALVE - discharge | 1 | |
| 3 | 55-9727 | SCREW - valve | 2 | |
| 4 | 55-4625 | FLATWASHER | 2 | |
| 5 | 33-230 | O-RING | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 6 | 61-1977 | VALVE - suction | 1 | |
| 7 | 55-7414 | SCREW - valve | 4 | |
| 8 | 55-5914 | FLATWASHER | 4 | |
| 9 | 33-3708 | O-RING (2.125 id) | 1 | |
| 10 | 33-3707 | O-RING (2.125 id) | 1 | |
| 11 | 22-1171 | SPACER - suction valve | 1 | |
| 12 | 55-9726 | SCREW - spacer | 2 | |
| 13 | 55-7024 | FLATWASHER | 2 | |
| 14 | 41-4146 | SWITCH - high pressure cutout | 1 | |
| 15 | 55-9730 | ADAPTER | 1 | |
| 16 | 33-3381 | O-RING (2.125 id) | 1 | |
| 17 | 41-4147 | SWITCH - low pressure cutout | 1 | |
| 18 | 55-7213 | BODY - valve | 1 | |
| 19 | 41-3827 | SENSOR | 1 | |
| 20 | 33-3381 | O-RING (2.125 id) | 1 | |
| 21 | 67-2798 | COIL | 2 | |
| 22 | 55-9811 | CLAMP | 1 | |
| 55-736 | SCREW - clamp | 1 | ||
| 56-2964 | LOCKWASHER | 1 | ||
| 56-2001 | FLATWASHER | 1 | ||
| 23 | 55-9702 | CLAMP - 0.625 dia | 1 | |
| 55-7172 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 24 | 92-5704 | BRACKET | 1 | |
| 25 | 55-2957 | SCREW - bracket | 2 | |
| 26 | 55-1800 | LOCKWASHER | 2 | |
| 27 | 55-2086 | FLATWASHER | 2 | |
| 28 | 55-8979 | INSERT | 2 | |
| 29 | 92-1309 | BRACKET - mount | 1 | |
| 30 | 55-9726 | SCREW - bracket | 4 | |
| 31 | 55-6283 | LOCKWASHER | 4 | |
| 32 | 55-9727 | SCREW - bracket | 3 | |
| 33 | 55-1173 | LOCKWASHER | 3 | |
| 34 | 55-7072 | FLATWASHER | 3 | |
| 35 | 55-4931 | FLATWASHER | 4 | |
| 36 | 56-2330 | BANDWRAP | 1 | |
| 37 | 91-3247 | NAMEPLATE - TK Logo | 1 | |
| 38 | 91-7846 | NAMEPLATE - R407C | 1 | |
| 39 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 40 | 107-368 | CLUTCH - assembly (see 240A7) | 1 | |
| 41 | 41-5209 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 42 | 41-1787 | COVER - connector | 1 | |
| 43 | 41-4280 | BUSBAR (6 pin, w/ diode) | 1 | |
| 44 | 41-1789 | CONNECTOR - tower (6 pin) | 1 | |
| 45 | 41-1790 | LOCK - secondary (6 pin connector) | 1 |
