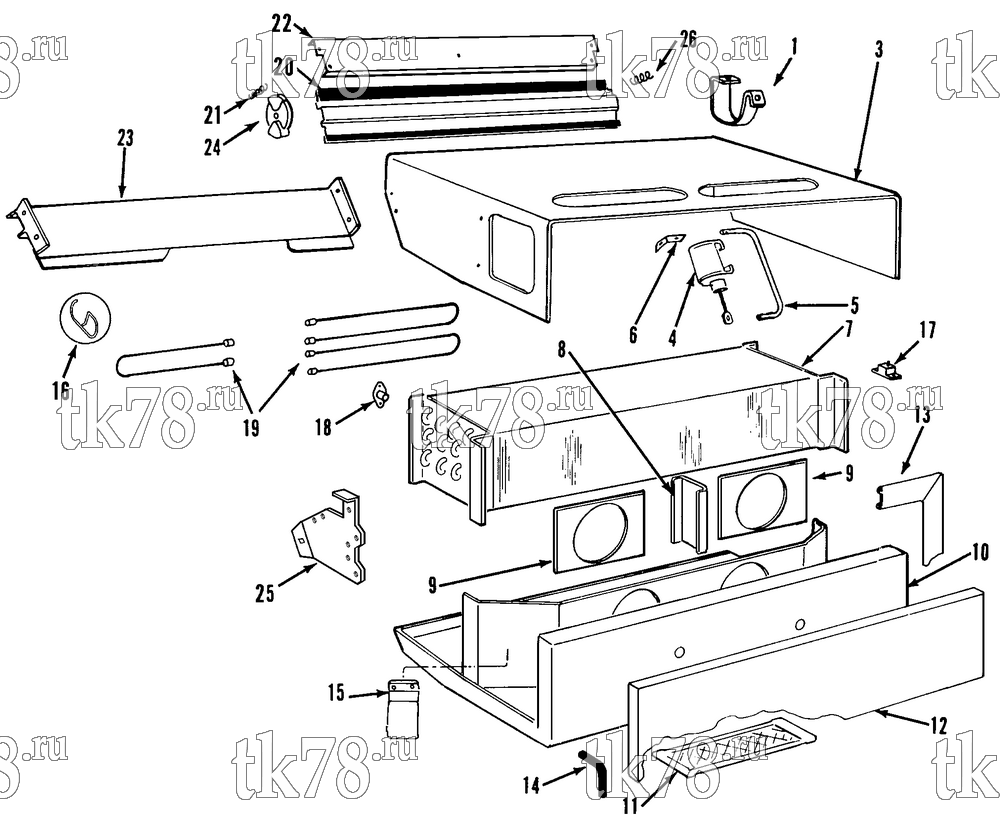

Установкa Thermo King TD-II & TD-II MAX схема EVAPORATOR COMPARTMENT – 90F3
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-9469 | BRACKET - heat exchanger | 2 | |
| 2 | 55-2550 | PIN - cotter | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 98-3731 | HOUSING - evaporator | 1 | |
| 98-4495 | HOUSING - evaporator (EMEIA) | 1 | ||
| 90-214 | KIT - evaporator support | 1 | ||
| 4 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 91-3095 | BOOT - plunger | 1 | ||
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 55-2762 | BOLT - eye | 1 | ||
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 91-1726 | BRACKET - solenoid | 4 | ||
| 55-5972 | SCREW - solenoid | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 91-1717 | NUTSTRIP - solenoid | 2 | ||
| 5 | 99-9953 | ROD - damper solenoid | 1 | |
| 6 | 99-2244 | STRAP - ground (solenoid) | 1 | |
| 7 | 67-930 | COIL - evaporator (before 4/91) | 1 | |
| 67-1369 | COIL - evaporator (after 3/91) | 1 | ||
| 55-3059 | NUT - captive | 10 | ||
| 8 | 91-1723 | CHANNEL - evaporator support (center) | 1 | |
| 9 | 91-1725 | ORIFICE - evaporator fan | 2 | |
| 55-1587 | SCREW - orifice | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 10 | 98-4886 | BASE - evaporator drain pan | 1 | |
| 33-432 | GROMMET (3/8 id) | 1 | ||
| 33-415 | GROMMET (5/8 id) | 1 | ||
| 33-572 | GROMMET (3/4 id) | 1 | ||
| 55-3059 | NUT - captive (1/4-20) | 34 | ||
| 55-5965 | SCREW (torx head, 1/4-20 x 1) | 24 | ||
| 55-5972 | SCREW (torx head, 1/4-20 x 3/4) | 10 | ||
| 55-5970 | WASHER - sealing | 34 | ||
| 11 | 91-1048 | SCREEN - evaporator | 2 | |
| 55-5972 | SCREW - screen | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 12 | 98-3785 | SUPPORT - bulkhead (foamed) | 1 | |
| 33-629 | GROMMET (1 id) | 2 | ||
| 33-1371 | GROMMET (1-45/64 id) | 1 | ||
| 13 | 33-1401 | GASKET - sill | 1 | |
| 14 | 99-6336 | HOSE - evaporator drain (white) | 2 | |
| 99-9715 | PIPE - drain hose (5 in lg) | 2 | ||
| 15 | 99-9459 | BOX - junction | 1 | |
| 44-4530 | COVER - junction box (incl gasket & screws) | 1 | ||
| 55-3831 | CONNECTOR - cable | 1 | ||
| 55-3025 | SCREW - box | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT (stop) | 2 | ||
| 16 | 91-240 | RETAINER - heater | 12 | |
| 17 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5635 | SCREW - switch | 2 | ||
| 18 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 19 | 45-1374 | HEATER (750W) | 3 | |
| 20 | 91-1557 | BLADE - damper | 1 | |
| 99-9540 | ROD - blade | 2 | ||
| 55-3000 | SCREW - blade | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2112 | SCREW - special (damper shutter) | 1 | ||
| 21 | 91-861 | SPRING - damper blade | 2 | |
| 22 | 99-9804 | SUPPORT - damper | 1 | |
| 23 | 98-3730 | PANEL - damper stop | 1 | |
| 24 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 55-3623 | SCREW - bearing | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT (stop) | 4 | ||
| 25 | 91-7812 | BRACKET - support (SR) | 1 | |
| 91-5320 | BRACKET - housing support (EMEIA) | 1 |
