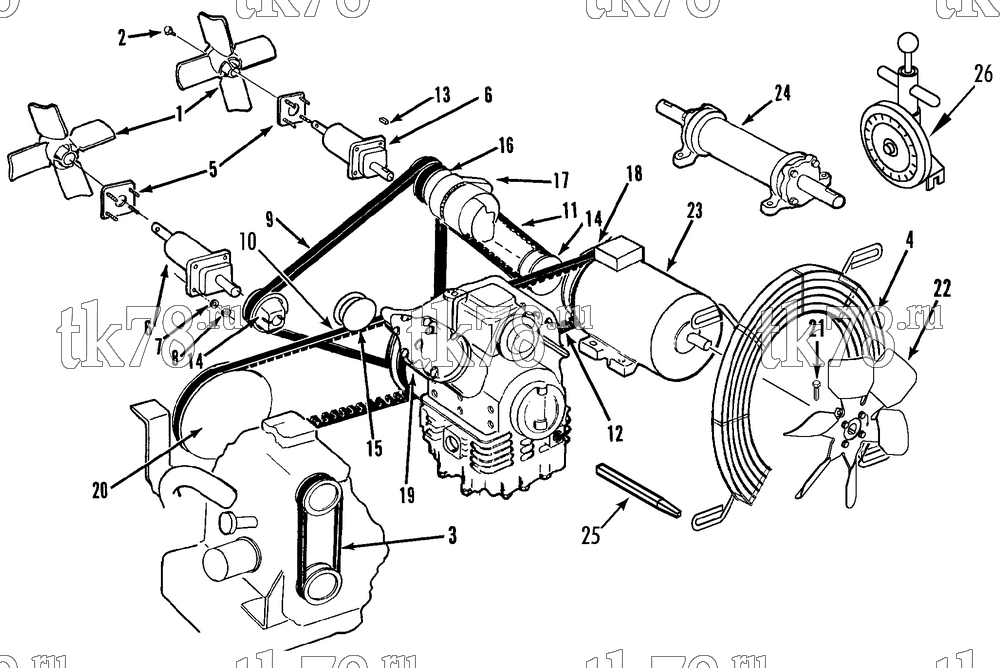

Установкa Thermo King TD-II SR w/TK 3.95 Engine схема BELTS, PULLEYS & FAN GROUP – 137C1
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-783 | FAN - evaporator | 2 | |
| 2 | 55-2307 | SCREW - fan | 4 | |
| 3 | 78-1026 | BELT - water pump (see 132C10) | 1 | |
| 10-78-1026 | Ремень водяной помпы, Yanmar 395, RD/TD-II / URD-III / TS-500/600 | 3 000 ₽ |
|
|
| PP-78-1026 | Ремень водяной помпы, Yanmar 395, RD/TD-II / URD-III / TS-500/600 | 1 260 ₽ |
|
|
| 4 | 98-3727 | GUARD - fan | 1 | |
| 55-2977 | SCREW - guard | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 5 | 99-3261 | BOLTPLATE - fanshaft | 2 | |
| 6 | 78-782 | FANSHAFT - assembly (see 90D14) | 2 | |
| 7 | 55-2641 | FLATWASHER | 8 | |
| 8 | 55-4955 | NUT - fanshaft (stop) | 8 | |
| 9 | 78-698 | BELT - evaporator fan to compressor | 1 | |
| 10-78-698 | Ремень, TD-II, RD-II (30 & 50) (R502) | 10 280 ₽ |
|
|
| 10 | 78-1051 | BELT - engine to compressor to idler | 1 | |
| 10-78-1051 | Ремень компрессора X430, TD/RD-II | 4 630 ₽ |
|
|
| 11 | 78-766 | BELT - alternator to evaporator fan | 1 | |
| 10-78-766 | Ремень генератор - вентилятор испарителя, RD/TD-II | 4 980 ₽ |
|
|
| PP-78-766 | Ремень генератор - вентилятор испарителя, RD/TD-II | 840 ₽ |
|
|
| 12 | 78-898 | BELT - motor (jackshaft to compressor) | 1 | |
| 10-78-898 | Ремень электромотора, TD/RD-II | 7 620 ₽ |
|
|
| 13 | 55-457 | KEY - pulley | 2 | |
| 14 | 77-1921 | PULLEY - evaporator fan | 2 | |
| 55-3089 | SCREW - pulley | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 15 | 70-199 | PULLEY - idler (see 131B12) | 1 | |
|
10-70-199 | Ремкомплект шкива | 17 600 ₽ |
|
| PP-70-199 | Ремкомплект шкива | 7 370 ₽ |
|
|
| 16 | 77-1924 | PULLEY - alternator | 1 | |
| 17 | 41-2194 | ALTERNATOR (23 amp, model EA, see 133B6) | 1 | |
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 18 | 77-2365 | PULLEY - motor/jackshaft | 1 | |
| 55-6220 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4164 | KEY - motor pulley | 1 | ||
| 55-3261 | KEY - jackshaft pulley | 1 | ||
| 19 | 77-1925 | PULLEY - compressor | 1 | |
| 55-9024 | KEY - pulley | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 55-4316 | SCREW - pulley (socket head, 3/8-16 x 2-1/2) | 1 | ||
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 55-375 | LOCKWASHER | 1 | ||
| 77-2498 | SPACER - pulley | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 20 | 107-349 | CLUTCH (25 & 50 units, see 145F4) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 47 550 ₽ |
|
| 77-1660 | PULLEY (30 units) | 1 | ||
| 55-5022 | SCREW - clutch | 6 | ||
| 21 | 55-2307 | SCREW - fan | 2 | |
| 22 | 78-781 | FAN - condenser | 1 | |
| 78-1264 | FAN - condenser (8/99 & after, aluminum blades, EMEIA) | 1 | ||
| 55-7555 | KEY - fan | 1 | ||
| 23 | 104-483 | MOTOR (220-230-380-460/3/50-60) | 1 | |
| 77-1167 | BEARING | 2 | ||
| 24 | 77-1011 | JACKSHAFT (see 7B12) | 1 | |
| 25 | 204-972 | TOOL - keyway alignment | 1 | |
| 26 | 204-427 | GAUGE - belt tension | 1 |
