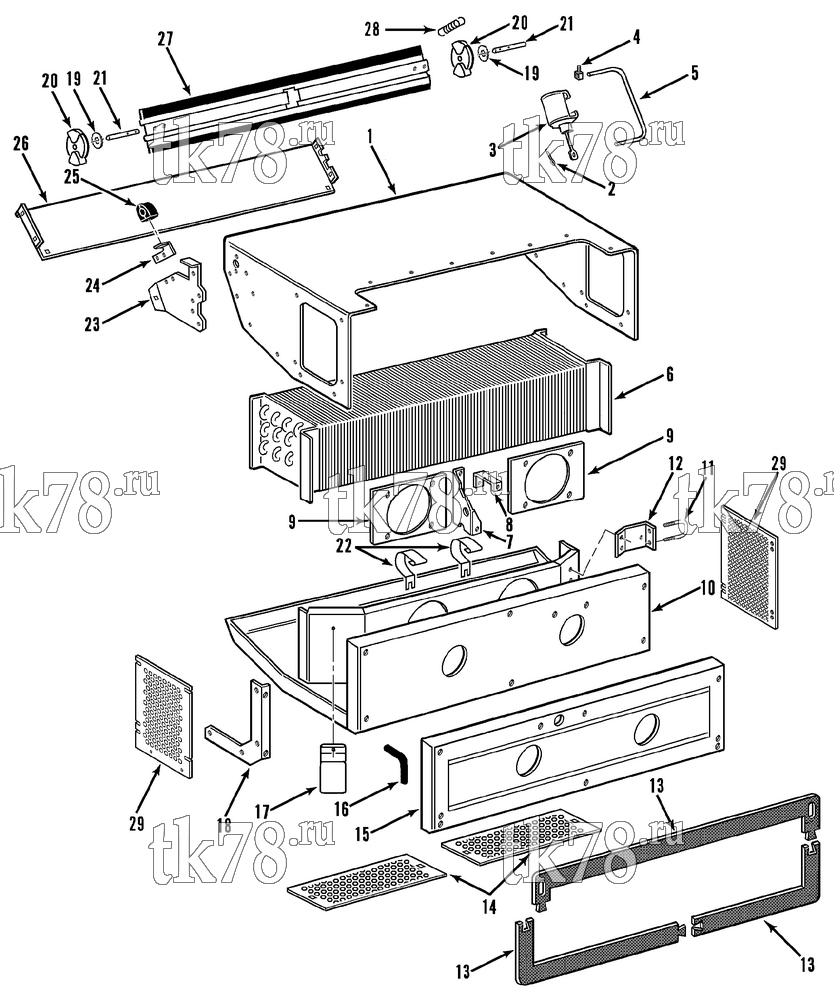

Установкa Thermo King TD-II SR w/TK 3.95 Engine схема EVAPORATOR COMPARTMENT – 133E2
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3731 | HOUSING - evaporator | 1 | |
| 55-5972 | SCREW (torx) | 30 | ||
| 55-7729 | WASHER - belleville | 30 | ||
| 2 | 55-2550 | PIN - cotter | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 91-3095 | BOOT - plunger | 1 | ||
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 55-2762 | BOLT - eye | 1 | ||
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 55-1587 | SCREW - solenoid | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 99-3337 | NUTSTRIP - solenoid | 2 | ||
| 4 | 55-2112 | SCREW - solenoid rod | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 5 | 99-9953 | ROD - damper solenoid | 1 | |
| 6 | 67-1369 | COIL - evaporator | 1 | |
| 91-4111 | NAMEPLATE - pressure | 1 | ||
| 55-6997 | NUT - captive | 10 | ||
| 55-1587 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 7 | 91-4107 | BRACKET - vertical | 1 | |
| 8 | 91-3154 | BRACKET - evaporator (horizontal) | 1 | |
| 55-3021 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 9 | 91-1725 | ORIFICE - evaporator fan (11.75 dia) | 2 | |
| 92-5209 | ORIFICE - evaporator fan (12.08 dia) | 2 | ||
| 55-1587 | SCREW - orifice | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 10 | 98-4886 | BASE - drain pan | 1 | |
| 98-7314 | BASE - drain pan | 1 | ||
| 33-432 | GROMMET (3/8 id) | 1 | ||
| 33-415 | GROMMET (5/8 id) | 1 | ||
| 33-572 | GROMMET (3/4 id) | 1 | ||
| 55-3059 | NUT - captive (1/4-20) | 34 | ||
| 55-5965 | SCREW (torx head, 1/4-20 x 1) | 24 | ||
| 55-5972 | SCREW (torx head, 1/4-20 x 3/4) | 10 | ||
| 55-5970 | WASHER - sealing | 34 | ||
| 11 | 55-3547 | U-BOLT - expansion valve | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 12 | 91-1724 | BRACKET - expansion valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 13 | 30-231 | KIT - sill gasket | 1 | |
| 14 | 91-1048 | SCREEN - evaporator | 2 | |
| 55-5972 | SCREW - screen | 4 | ||
| 55-7729 | WASHER - belleville | 4 | ||
| 15 | 98-3785 | SUPPORT - bulkhead (foamed) | 1 | |
| 33-629 | GROMMET (1 id) | 2 | ||
| 33-1371 | GROMMET (1-45/64 id) | 1 | ||
| 55-5983 | SCREW - bulkhead | 6 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-7122 | WASHER - belleville | 6 | ||
| 55-2640 | NUT | 6 | ||
| 16 | 91-2434 | HOSE - evaporator drain | 2 | |
| 17 | 99-9459 | BOX - junction | 1 | |
| 44-4530 | COVER - junction box | 1 | ||
| 55-3831 | CONNECTOR - cable | 1 | ||
| 55-3025 | SCREW - box | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 18 | 91-4109 | BRACKET (curbside) | 1 | |
| 91-4108 | BRACKET (roadside) | 2 | ||
| 55-5972 | SCREW - bracket | 30 | ||
| 55-7729 | WASHER - belleville | 30 | ||
| 19 | 55-6534 | FLATWASHER - damper blade | 2 | |
| 20 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 55-3623 | SCREW - bearing | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 21 | 99-9540 | ROD - blade | 2 | |
| 22 | 99-9469 | BRACKET - heat exchanger | 3 | |
| 55-4953 | NUT - bracket | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 23 | 91-7812 | BRACKET - support (SR) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT - bracket | 2 | ||
| 24 | 91-1848 | ANGLE - damper blade clamp | 1 | |
| 55-1587 | SCREW - angle | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 25 | 55-6558 | CLAMP - damper blade | 1 | |
| 55-3121 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 26 | 98-3730 | PANEL - damper stop | 1 | |
| 55-5972 | SCREW (torx) | 5 | ||
| 55-7729 | WASHER - belleville | 5 | ||
| 27 | 91-1843 | BLADE - damper | 1 | |
| 55-3000 | SCREW - blade | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 28 | 91-861 | SPRING - damper blade | 2 | |
| 29 | 91-6524 | SCREEN - evaporator (side, EMEIA) | 2 |
