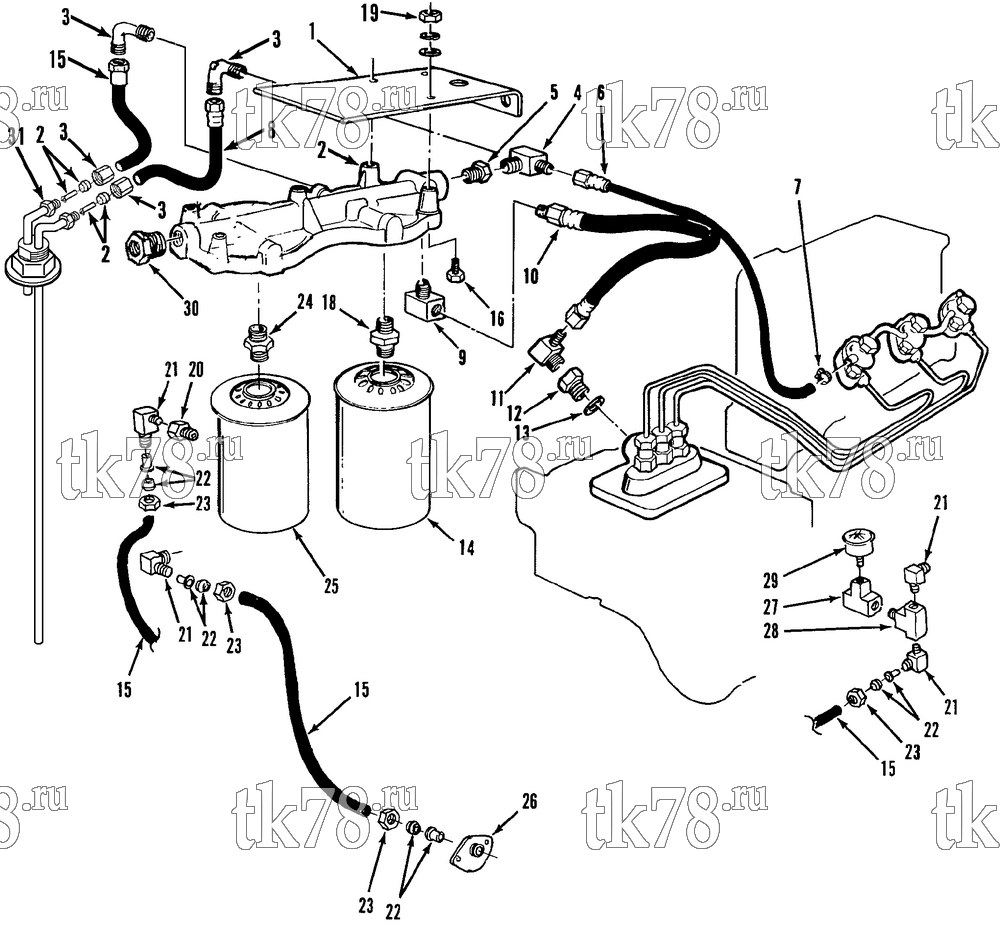

Установкa Thermo King TD-I схема FUEL & OIL FILTERS & HOSES – 70E5
Обновление от: 4/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8803 | SHIELD - heat (fuel filter bracket) | 1 | |
| 2 | 11-5941 | BRACKET - fuel filter | 1 | |
| 55-1004 | PLUG - pipe (1/4-18) | 1 | ||
| 55-433 | PLUG - pipe (1/8-27) | 1 | ||
| 3 | 11-5320 | ELBOW | 1 | |
| 4 | 55-1654 | TEE | 1 | |
| 5 | 55-4799 | BUSHING - restrictor | 1 | |
| 6 | 11-5228 | HOSE - injector to tee | 1 | |
| 7 | 55-2796 | CLAMP - hose | 1 | |
| 8 | 11-4367 | HOSE - fuel return (1/4 od x 35 ft lg) | A/R | |
| 10-243 | KIT - sleeve & eyelet (1/4) | 1 | ||
| 11-4841 | NUT - fuel hose (1/4) | 1 | ||
| 9 | 55-4244 | ELBOW | 1 | |
| 10 | 11-5229 | HOSE - filter to injection pump | 1 | |
| 11 | 55-3331 | ELBOW - hose adapter | 1 | |
| 12 | 11-5222 | ADAPTER - fuel inlet | 1 | |
| 13 | 33-1531 | GASKET | 1 | |
| 14 | 11-9098 | FILTER - fuel (secondary) | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 15 | 11-4372 | HOSE - tank to unit (3/8 od x 35 ft lg) | A/R | |
| 10-242 | KIT - sleeve & eyelet (3/8) | 1 | ||
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT - fuel line (3/8) | 1 | ||
| 16 | 55-153 | SCREW - filter bracket | 2 | |
| 17 | 11-4380 | ELBOW | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 18 | 55-3168 | ADAPTER - fuel pickup | 1 | |
| 19 | 55-371 | FLATWASHER (5/16) | 3 | |
| 55-790 | LOCKWASHER (5/16) | 3 | ||
| 55-312 | NUT | 3 | ||
| 20 | 11-5942 | FITTING - restricted oil | 1 | |
| 21 | 11-4380 | ELBOW | 2 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 22 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 23 | 11-4941 | NUT - hose (3/8) | 4 | |
| 24 | 55-3164 | ADAPTER | 1 | |
| 25 | 11-9101 | FILTER - oil (bypass EMI) | 1 | |
| 26 | 11-5945 | PLATE - oil | 1 | |
| 27 | 55-665 | TEE | 1 | |
| 28 | 55-1654 | TEE | 1 | |
| 29 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 30 | 55-2539 | BUSHING (3/8 mpt x 1/8 fpt) | 1 | |
| 31 | 11-9279 | TUBE - fuel pickup | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 |
