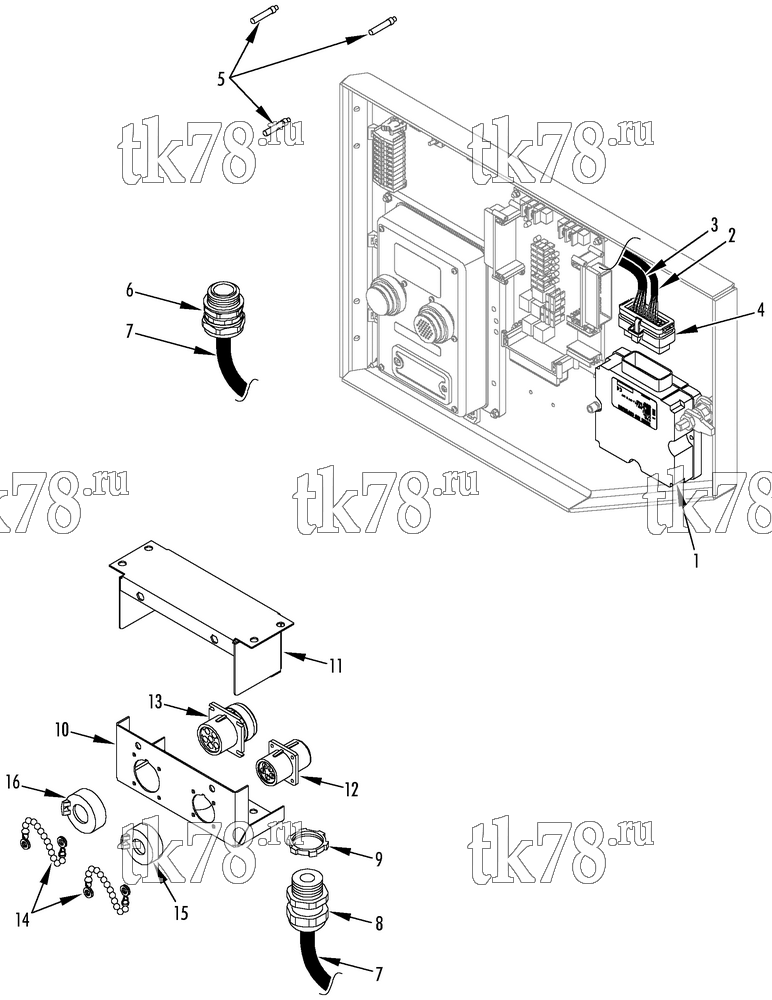

Установкa Thermo King TA-1100 & A-1050N схема DAS (TA-1100, OPTIONAL) – 192G8
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 55-8723 | SCREW - datalogger | 3 | ||
| 55-7031 | LOCKWASHER | 3 | ||
| 55-7698 | NUT | 3 | ||
| 2 | 41-5026 | HARNESS - DAS (serial link) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 6 | ||
| 41-182 | PIN (18 gauge) | 3 | ||
| 41-2457 | SOCKET (18 gauge) | 8 | ||
| 3 | 41-5027 | HARNESS - DAS (internal No. 1) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 10 | ||
| 41-2457 | SOCKET (18 gauge) | 10 | ||
| 4 | 41-3359 | PLUG - DAS (35-pin) | 1 | |
| 5 | 40-974 | KIT - sensor (graded) | 5 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 55-547 | CLAMP - sensor | 4 | ||
| 55-7698 | NUT | 3 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7663 | SCREW - clamp (12mm) | 2 | ||
| 55-8723 | SCREW - clamp (25mm) | 3 | ||
| 6 | 51-867 | GRIP - harness | 1 | |
| 7 | 41-6001 | HARNESS - DAS (comm) | 1 | |
| 44-9591 | TERMINAL - pin (16-18 ga) | 9 | ||
| 8 | 51-867 | GRIP - harness | 1 | |
| 9 | 55-2635 | NUT - grip | 1 | |
| 10 | 91-9585 | COVER - box | 1 | |
| 55-3025 | SCREW - cover | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 11 | 91-9586 | BOX - DAS | 1 | |
| 55-8752 | INSERT - threaded | 4 | ||
| 12 | 41-2405 | RECEPTACLE (5-pin) | 1 | |
| 13 | 44-8329 | RECEPTACLE (6-pin) | 1 | |
| 55-3427 | SCREW - receptacle | 8 | ||
| 55-2359 | FLATWASHER | 16 | ||
| 05-4131 | LOCKWASHER | 8 | ||
| 55-2361 | NUT | 8 | ||
| 14 | 99-3685 | CHAIN - cap | 2 | |
| 15 | 41-2406 | CAP - dust (5-pin receptacle) | 1 | |
| 16 | 44-8333 | CAP - dust (6-pin receptacle) | 1 |
