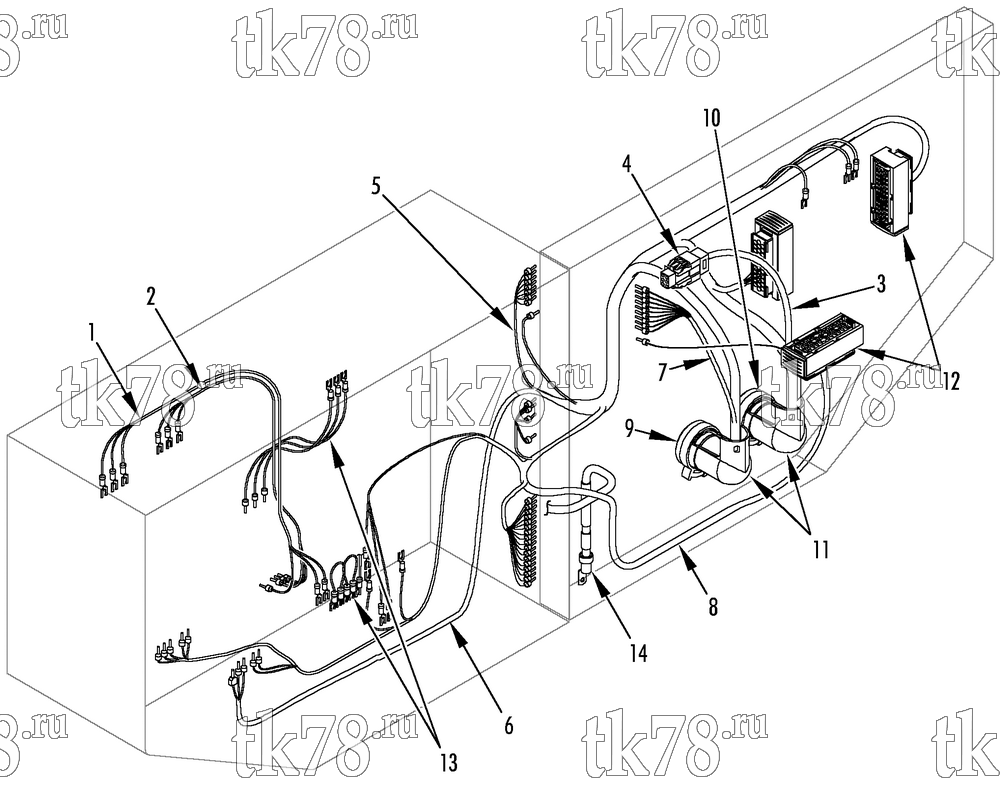

Установкa Thermo King TA-1100 & A-1050N схема CONTROL BOX HARNESSES (TA-1100) – 192G7
Обновление от: 8/19/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5019 | HARNESS - compressor supply | 1 | |
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 2 | ||
| 41-4397 | TERMINAL - pin (16 gauge) | 1 | ||
| 44-2788 | TERMINAL - fork (22-16 gauge, #6) | 3 | ||
| 2 | 41-5021 | HARNESS - evaporator fan | 1 | |
| 41-4397 | TERMINAL - pin (16 gauge) | 3 | ||
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 3 | ||
| 3 | 41-5022 | HARNESS - remote serial link | 1 | |
| 4 | 41-3882 | CONNECTOR - plug (6 socket) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 44-8539 | SOCKET (18 gauge) | 5 | ||
| 41-182 | PIN (18 gauge) | 5 | ||
| 5 | 41-5023 | HARNESS - evaporator temperature | 1 | |
| 41-4408 | TERMINAL - pin (18 gauge) | 7 | ||
| 41-182 | PIN (18 gauge) | 6 | ||
| 6 | 41-5024 | HARNESS - analogue reference | 1 | |
| 41-4408 | TERMINAL - pin (18 gauge) | 2 | ||
| 41-182 | PIN (18 gauge) | 4 | ||
| 41-4396 | TERMINAL - pin (double wire) | 1 | ||
| 7 | 41-5025 | HARNESS - analogue reference | 1 | |
| 41-182 | PIN (18 gauge) | 8 | ||
| 41-4408 | TERMINAL - pin (18 gauge) | 9 | ||
| 8 | 41-5015 | HARNESS - low voltage | 1 | |
| 9 | 41-745 | CONNECTOR (37-pin, J37) | 1 | |
| 10 | 41-744 | CONNECTOR (19-pin, J19, see 169E1) | 1 | |
| 11 | 41-225 | STRAIN RELIEF | 2 | |
| 55-7618 | CLAMP - stain relief | 2 | ||
| 12 | 41-5996 | CONNECTOR - pc board | 3 | |
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 10 | ||
| 41-4408 | TERMINAL (18 gauge) | 61 | ||
| 41-182 | PIN (18 gauge) | 21 | ||
| 41-4247 | RECEPTACLE | 103 | ||
| 13 | 41-6354 | ELECTRICAL WIRES (TA-1100) | 1 | |
| 14 | 41-6355 | GROUNDING WIRE | 1 |
