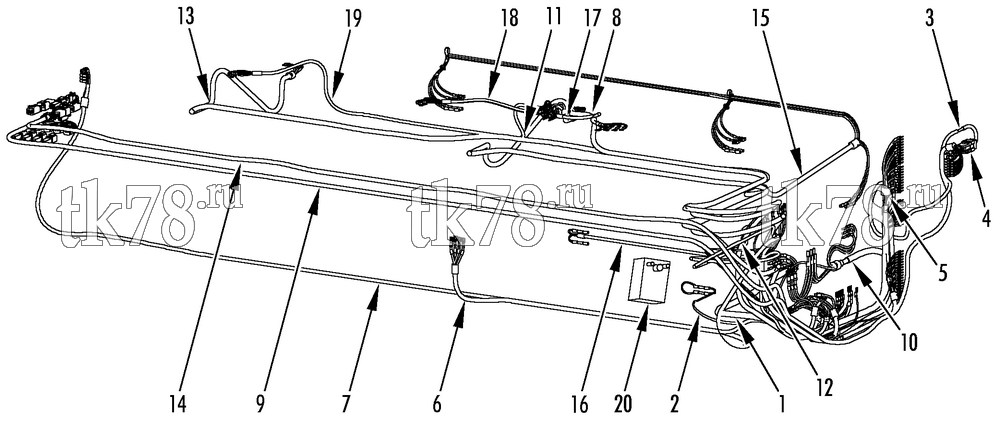

Установкa Thermo King TA-1100 & A-1050N схема HARNESS GROUP (TA-1100) – 192G6
Обновление от: 5/13/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5002 | HARNESS - return air sensor | 1 | |
| 2 | 41-5989 | HARNESS - drain tube | 1 | |
| 3 | 41-5990 | HARNESS - remote display | 1 | |
| 4 | 41-2247 | RECEPTACLE (6-pin) | 1 | |
| 41-1945 | CONNECTOR - strain relief | 1 | ||
| 41-4348 | PIN - receptacle (20-24 gauge) | 5 | ||
| 41-2244 | TERMINAL (18-24 gauge) | 5 | ||
| 5 | 41-5991 | HARNESS - DAS (outside box) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 10 | ||
| 6 | 41-5003 | HARNESS - power (water pump, 504) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 3 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 4 | ||
| 7 | 41-5004 | HARNESS - compressor power | 1 | |
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 2 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 44-7245 | TERMINAL - ring (22-16 gauge, #10) | 1 | ||
| 41-2774 | TERMINAL - special | 3 | ||
| 41-4397 | TERMINAL - pin (16 gauge) | 1 | ||
| 8 | 41-5005 | HARNESS - condenser fans | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 7 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 9 | 41-5006 | HARNESS - solenoid valves (for connectors see 112D9) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 14 | ||
| 10 | 41-5992 | HARNESS - unit power supply | 1 | |
| 41-4407 | TERMINAL - fork (12-10 gauge, #8) | 3 | ||
| 44-2793 | TERMINAL (1/4) | 1 | ||
| 44-6310 | TERMINAL - pin (10 gauge) | 7 | ||
| 41-4906 | TERMINAL - pin (8 gauge) | 3 | ||
| 11 | 41-5007 | HARNESS - evaporator (No. 1) | 1 | |
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 2 | ||
| 41-4408 | TERMINAL (18 gauge) | 5 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 12 | 41-5008 | HARNESS - evaporator heaters | 1 | |
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 2 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 5 | ||
| 41-4397 | TERMINAL - pin (16 gauge) | 1 | ||
| 13 | 41-5010 | HARNESS - evaporator (No. 2) | 1 | |
| 41-280 | TERMINAL - fork (22-16 gauge, #6) | 2 | ||
| 41-4408 | TERMINAL (18 gauge) | 5 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 14 | 41-5011 | HARNESS - refrigeration sensors (for connectors see 112D9) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 8 | ||
| 41-4396 | TERMINAL - pin (double wire) | 2 | ||
| 44-9587 | SOCKET (18 gauge) | 3 | ||
| 44-9340 | PIN (18 gauge) | 10 | ||
| 44-8330 | SOCKET (18 gauge) | 10 | ||
| 15 | 41-5012 | HARNESS - DAS (temperature) | 1 | |
| 41-124 | SPLICE (22-18 gauge) | 6 | ||
| 41-4408 | TERMINAL (18 gauge) | 10 | ||
| 41-2774 | TERMINAL - special | 4 | ||
| 16 | 41-5013 | HARNESS - DAS (ATS) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 2 | ||
| 41-124 | SPLICE (22-18 gauge) | 2 | ||
| 17 | 41-5993 | HARNESS - condenser fan (#1) | 1 | |
| 18 | 41-5994 | HARNESS - condenser fan (#2) | 1 | |
| 19 | 41-5995 | HARNESS - condenser fan (#3) | 1 | |
| 41-4408 | TERMINAL (18 gauge) | 4 | ||
| 44-7245 | TERMINAL - ring (22-16 gauge, #10) | 1 | ||
| 44-2788 | TERMINAL - fork (22-16 gauge, #8) | 3 | ||
| 20 | 41-5999 | CHOKE - communication | 1 |
