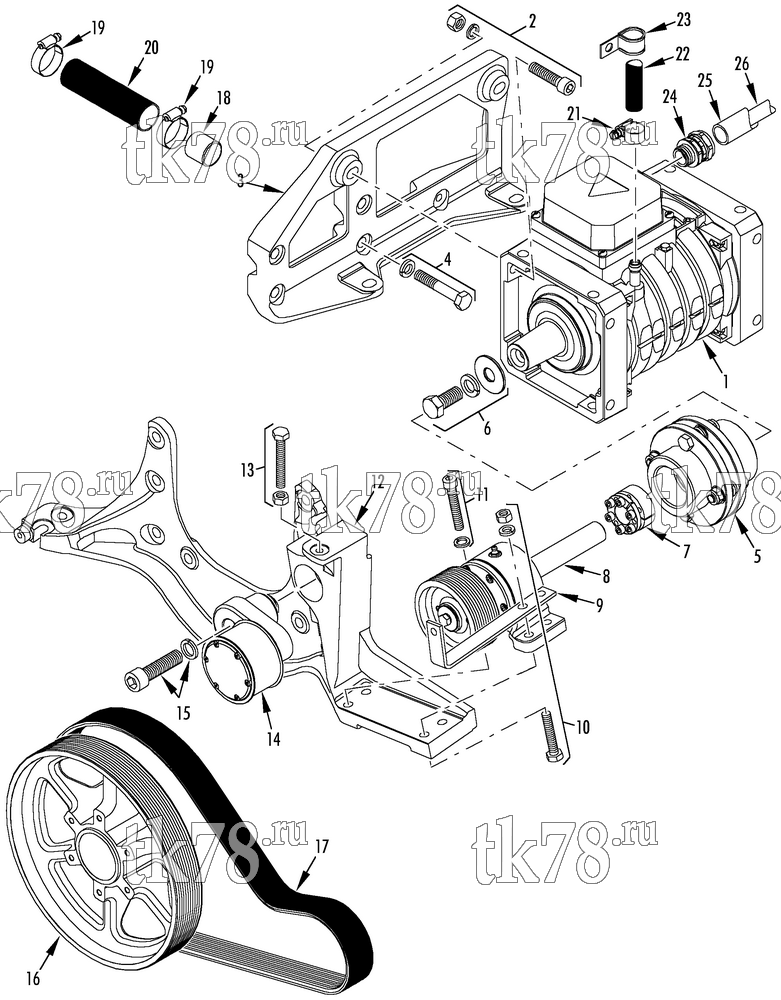

Установкa Thermo King TA-1100 & A-1050N схема ALTERNATOR - SCANIA D94 (720138) – 180B7
Обновление от: 8/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-695 | ALTERNATOR (L-S, 10 kW) | 1 | |
| 2 | 51-241 | SCREW - alternator (50 mm) | 2 | |
| 55-9869 | SCREW - alternator (40 mm) | 2 | ||
| 55-5006 | LOCKWASHER | 4 | ||
| 55-8471 | NUT | 4 | ||
| 3 | 98-6489 | BRACKET - alternator | 1 | |
| 4 | 55-7414 | SCREW - bracket | 4 | |
| 55-5006 | LOCKWASHER | 4 | ||
| 5 | 77-2735 | COUPLING | 1 | |
| 6 | 51-230 | SCREW - coupling to alternator | 1 | |
| 55-9881 | LOCKWASHER | 1 | ||
| 55-9872 | WASHER | 1 | ||
| 7 | 77-2736 | COUPLING | 1 | |
| 8 | NSS | HOUSING - bearing & shaft (see 178G0) | 1 | |
| 9 | 92-2494 | BRACKET | 1 | |
| 10 | 55-7684 | SCREW - bracket | 2 | |
| 55-5411 | LOCKWASHER | 2 | ||
| 55-6573 | NUT | 2 | ||
| 11 | 51-242 | SCREW - bracket | 2 | |
| 55-5411 | LOCKWASHER | 2 | ||
| 55-6573 | NUT | 2 | ||
| 12 | 98-6490 | BRACKET - engine | 1 | |
| 13 | 55-5419 | SCREW - adjust | 1 | |
| 55-6573 | NUT | 1 | ||
| 14 | 78-1315 | PULLEY - idler (assembly, see 178G8) | 1 | |
| 15 | 51-243 | SCREW - idler pulley | 1 | |
| 55-9881 | LOCKWASHER | 1 | ||
| 16 | 77-2737 | PULLEY (280 mm) | 1 | |
| 17 | 78-1262 | BELT | 1 | |
| 18 | 11-9610 | TUBE - connecting (Scania D94 1) | 1 | |
| 19 | 55-3401 | CLAMP (1.000 dia - 1.500 dia) | 2 | |
| 20 | 11-9611 | HOSE | 1 | |
| 21 | 55-6726 | CLAMP - hose | 4 | |
| 22 | 98-6495 | HOSE - coolant (50 ft) | A/R | |
| 23 | 55-4889 | CLAMP - hose | A/R | |
| 55-5641 | SCREW - clamp | A/R | ||
| 24 | 51-364 | GRIP - harness | 1 | |
| 25 | 41-5312 | CONDUIT - harness | 1 | |
| 26 | 41-5311 | HARNESS - alternator | 1 | |
| 44-2793 | TERMINAL - ring (1/4) | 4 |
