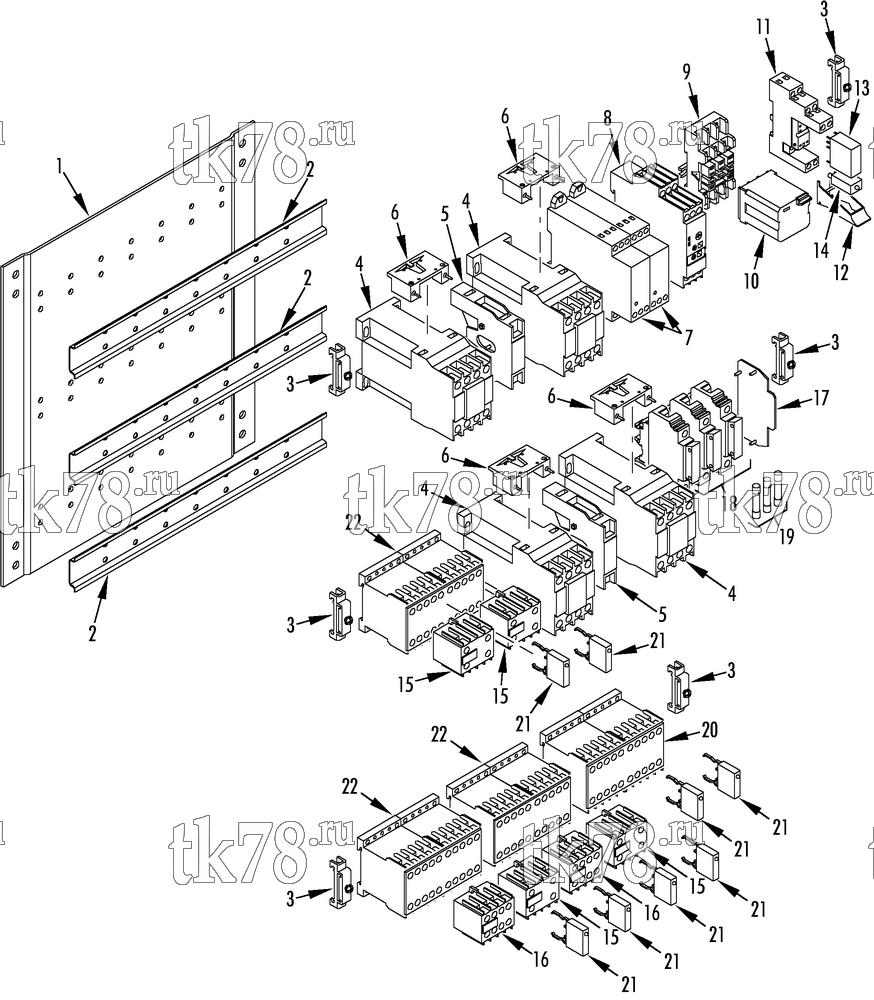

Установкa Thermo King TA-1100 & A-1050N схема CONTACTOR BOARD (A-1050N) – 178G3
Обновление от: 8/13/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2344 | SHEET - contactor | 1 | |
| 2 | 92-2345 | RAIL - contactor | 3 | |
| 55-3588 | RIVET - rail | 42 | ||
| 3 | 91-6465 | CLAMP - rail | 6 | |
| 4 | 41-4375 | CONTACTOR (KGSC, KSSC, KCP1 & 2) | 4 | |
| 5 | 41-4377 | BLOCK - inversing (SC & SPC) | 2 | |
| 6 | 41-4376 | MODULE - suppressor | 4 | |
| 7 | 41-4374 | RELAY - phase sequence (KAPS1 & 2) | 2 | |
| 8 | 41-4373 | RELAY - time (KASW) | 1 | |
| 9 | 41-4925 | SOCKET - relay | 1 | |
| 10 | 41-4926 | RELAY (KSUP) | 1 | |
| 11 | 41-4384 | SOCKET - relay | 1 | |
| 12 | 41-4385 | LOCK - socket | 1 | |
| 13 | 41-4387 | RELAY (KIDLE) | 1 | |
| 14 | 41-4386 | DIODE - suppressor | 1 | |
| 15 | 41-4381 | BLOCK - contact (KGSE, KGSH, KSSE, KSSH) | 4 | |
| 16 | 41-4382 | BLOCK - contact (KGCF & KSCF) | 2 | |
| 17 | 41-4927 | PLATE - cover | 1 | |
| 18 | 41-4928 | FUSE - holder | 3 | |
| 19 | 41-4929 | FUSE | 3 | |
| 20 | 41-4930 | CONTACTOR - reversing | 1 | |
| 21 | 41-4383 | MODULE - suppressor (w/ led) | 8 | |
| 22 | 41-4380 | CONTACTOR - reversing | 3 |
