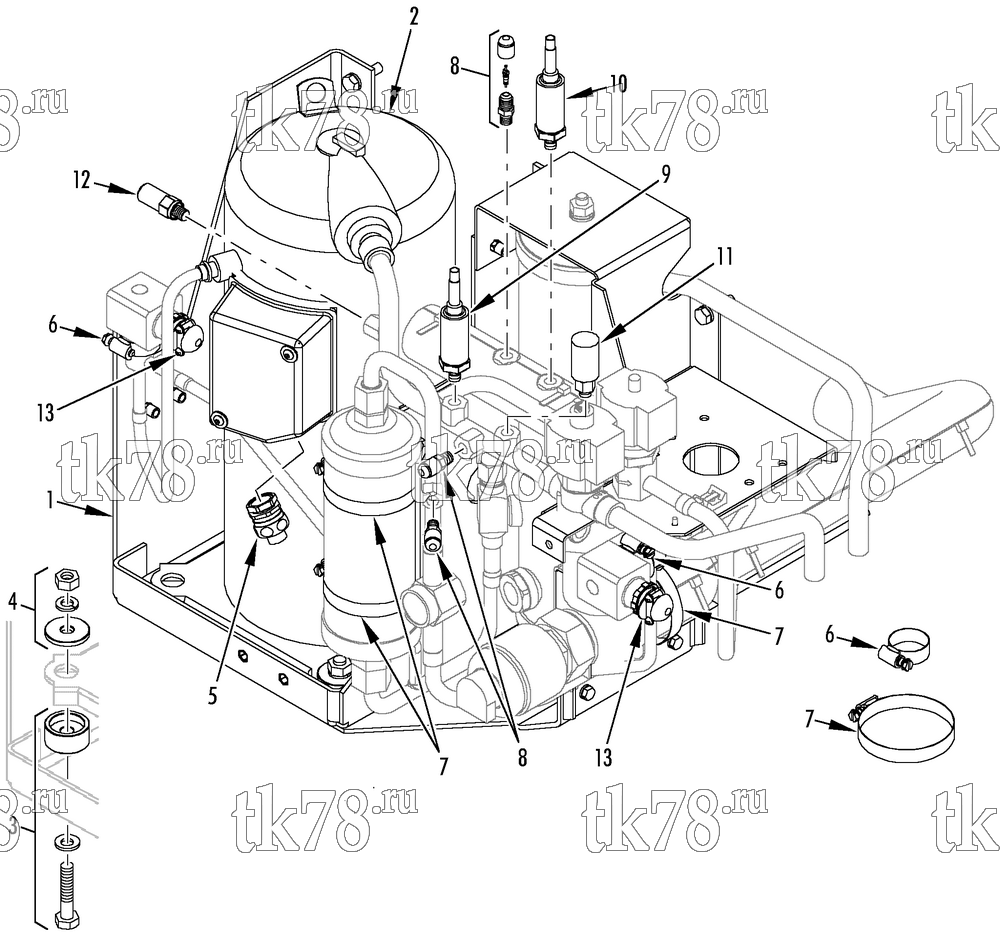

Установкa Thermo King TA-1100 & A-1050N схема REFRIGERATION SOLENOIDS & SWITCHES – 178F4
Обновление от: 1/15/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2340 | BASE - refrigeration | 1 | |
| 99-3281 | MOUNT - cable tie | 3 | ||
| 55-2260 | RIVET - mount | 9 | ||
| 55-9837 | NUT - captive | 8 | ||
| 55-6987 | SCREW - mount | 7 | ||
| 55-7342 | LOCKWASHER | 7 | ||
| 2 | 102-926 | COMPRESSOR - scroll (hermetic) | 1 | |
| 3 | 55-9845 | SCREW - compressor | 4 | |
| 55-8536 | FLATWASHER | 5 | ||
| 92-2341 | SPACER - compressor | 4 | ||
| 4 | 92-2342 | WASHER - special | 4 | |
| 55-7347 | LOCKWASHER | 5 | ||
| 55-7348 | NUT | 5 | ||
| 5 | 55-9838 | BUSHING - harness | 1 | |
| 51-171 | RING - sealing | 1 | ||
| 55-9559 | NUT - bushing | 1 | ||
| 6 | 55-1636 | CLAMP - valve | 3 | |
| 7 | 55-2688 | CLAMP - dehydrator | 3 | |
| 8 | 11-2886 | VALVE - access | 3 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 9 | 41-7956 | TRANSDUCER - discharge (AIDP) | 1 | |
| 10 | 41-7960 | TRANSDUCER - suction (AISP) | 1 | |
| 42-2284 OEM | Трансдюсер, SB/SL-400/SL-400e/SLX/SLXe | 28 170 ₽ |
|
|
| 10-42-2284 | Трансдюсер, SB/SL-400/SL-400e/SLX/SLXe | 7 480 ₽ |
|
|
| 11 | 41-3845 | SWITCH - hpco | 1 | |
| 41-3845 OEM | Выключатель HPCO, KD-II/MD-II/RD-II/MD-XXX / T/TS-Series | 10 040 ₽ |
|
|
|
PP-41-3847 | Выключатель HPCO, KD-II/MD-II/RD-II/MD-XXX / T/TS-Series | 3 080 ₽ |
|
| 12 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 99-261 | GRIP - cable | 2 | |
| 33-285 | GROMMET - grip | 2 |
