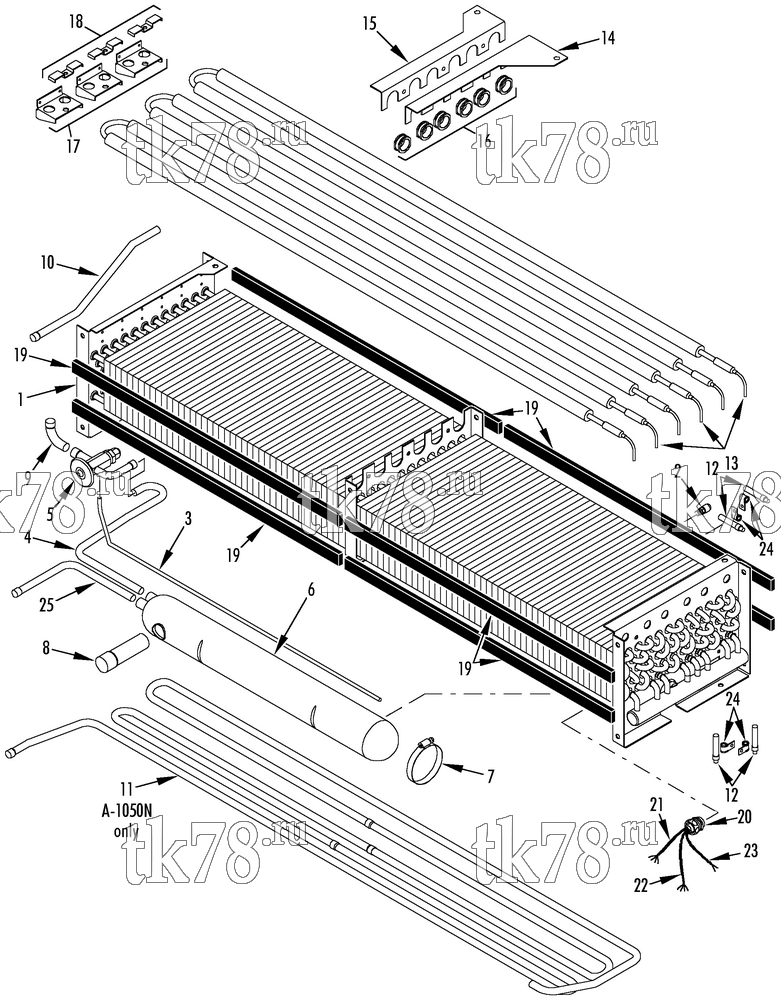

Установкa Thermo King TA-1100 & A-1050N схема EVAPORATOR GROUP – 178F1
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1875 | COIL - evaporator | 1 | |
| 2 | 11-2886 | VALVE (Schrader) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 55-6994 | SCREW - coil | 12 | ||
| 55-7170 | LOCKWASHER | 12 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 3 | 61-1827 | TUBE - equalizer | 1 | |
| 4 | 61-1814 | TUBE - expansion valve | 1 | |
| 83-258 | GROMMET - tube | 1 | ||
| 5 | 66-7447 | VALVE - expansion | 1 | |
| 51-180 | U-BOLT - valve | 1 | ||
| 55-7367 | NUT - u-bolt | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 6 | 67-2003 | HEAT EXCHANGER | 1 | |
| 7 | 55-2688 | CLAMP - heat exchanger | 1 | |
| 8 | 61-1812 | TUBE - exchanger to compressor | 1 | |
| 9 | 61-1815 | TUBE - valve to distributor | 1 | |
| 10 | 61-1813 | TUBE - distributor | 1 | |
| 11 | 61-1811 | TUBE - serpentine (A-1050N only) | 1 | |
| 12 | 40-974 | KIT - sensor (graded) | 4 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 13 | 45-2017 | ELEMENT - heating (230V, before 7/05) | 3 | |
| 45-2139 | ELEMENT - heating (230V, 7/05 & after) | 3 | ||
| 55-9554 | BUSHING (7/05 & after) | 6 | ||
| 55-9558 | NUT - bushing (7/05 & after) | 6 | ||
| 14 | 92-2435 | BRACKET - element | 1 | |
| 15 | 92-2436 | BRACKET - element (expansion valve end) | 1 | |
| 16 | 33-3655 | RING - element | 6 | |
| 17 | 92-2437 | BRACKET - element | 3 | |
| 55-2260 | RIVET - bracket | 6 | ||
| 18 | 61-1816 | CLAMP - element | 3 | |
| 55-7035 | SCREW - clamp | 3 | ||
| 55-7170 | LOCKWASHER | 12 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 55-9837 | NUT - captive | 16 | ||
| 19 | 99-8562 | STRIP - insulation | A/R | |
| 20 | 55-9838 | BUSHING - harness (before 7/05) | 1 | |
| 51-1398 | BUSHING (7/05 & after) | 1 | ||
| 51-171 | RING - sealing | 1 | ||
| 55-9559 | NUT - bushing | 1 | ||
| 21 | 41-5007 | HARNESS - evaporator (No. 1) | 1 | |
| 22 | 41-5008 | HARNESS - evaporator heaters | 1 | |
| 23 | 41-5012 | HARNESS - DAS (temperature) | 1 | |
| 24 | 55-547 | CLAMP - sensor | 4 | |
| 55-7862 | SCREW - clamp | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 25 | 61-2662 | TUBE - condenser to heat exchanger | 1 |
