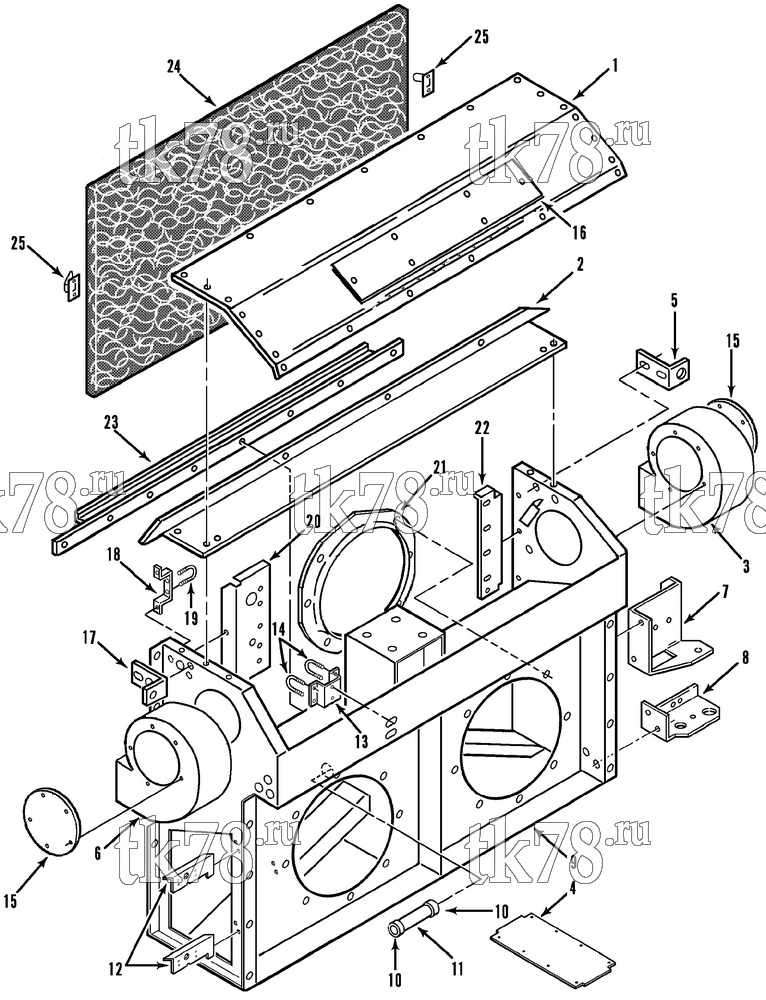

Установкa Thermo King T9-M4, M4A, M4B, M4C, M4D схема STRUCTURAL COMPONENTS - AIR FILTER – 105B12
Обновление от: 4/17/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3551 | PANEL - top | 1 | |
| 99-1908 | STRIP - sealing (50 ft) | A/R | ||
| 55-4546 | SCREW - panel | 22 | ||
| 2 | 98-3533 | FLANGE - top | 1 | |
| 99-7245 | STRIP - sealing (50 ft) | A/R | ||
| 55-4546 | SCREW - flange | 6 | ||
| 3 | 98-4194 | HOUSING - blower (curbside) | 1 | |
| 4 | 91-4009 | PLATE - duct cover | 1 | |
| 5 | 91-1002 | BRACKET - lifting (curbside) | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT (hexstop) | 2 | ||
| 6 | 98-4195 | HOUSING - blower (roadside) | 1 | |
| 55-2977 | SCREW - housing | 10 | ||
| 7 | 91-1018 | BRACKET - receiver/dehydrator | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT (hexstop) | 2 | ||
| 8 | 91-1019 | BRACKET - receiver & fitting | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT (hexstop) | 2 | ||
| 9 | 98-4193 | FRAME - assembly | 1 | |
| 10 | 91-1000 | COUPLING | 1 | |
| 11 | 91-999 | TUBE (pvc) | 1 | |
| 12 | 91-4014 | BRACKET - control box | 2 | |
| 13 | 91-1020 | BRACKET - epr valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 14 | 55-5122 | U-BOLT - valve | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 15 | 99-9316 | PLATE - blower housing cover | 2 | |
| 55-4546 | SCREW - cover | 10 | ||
| 16 | 98-3552 | PANEL - access | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-3021 | SCREW - panel | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 17 | 91-1004 | BRACKET - lifting (roadside) | 1 | |
| 55-2969 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT (hexstop) | 3 | ||
| 18 | 91-1005 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT (hexstop) | 4 | ||
| 19 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4560 | NUT (hexstop) | 2 | ||
| 20 | 91-1003 | BRACKET - coil (roadside) | 1 | |
| 55-2969 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT (hexstop) | 3 | ||
| 21 | 98-3529 | ORIFICE - condenser fan | 2 | |
| 55-1587 | SCREW - orifice | 12 | ||
| 55-3045 | WASHER - dome | 12 | ||
| 22 | 91-1001 | BRACKET - coil (curbside) | 1 | |
| 55-2969 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT (hexstop) | 3 | ||
| 23 | 98-3534 | BRACKET - air filter | 1 | |
| 55-4546 | SCREW - bracket | 10 | ||
| 24 | 91-6420 | FILTER - air | 1 | |
| 25 | 55-4422 | FASTENER - snap (filter) | 2 |
