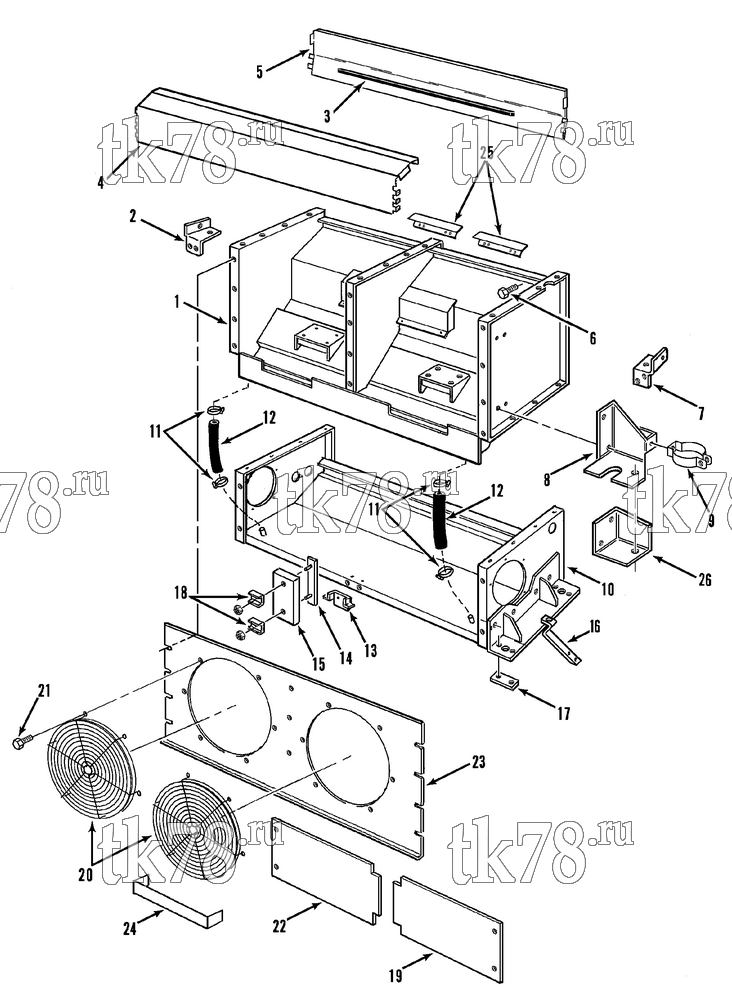

Установкa Thermo King T6-M5 схема STRUCTURAL COMPONENTS (T6-M4 & M5) – 95B2
Обновление от: 4/1/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3156 | FRAME - condenser | 1 | |
| 33-740 | GROMMET (7/16 id) | 2 | ||
| 33-367 | GROMMET (5/8 id) | 1 | ||
| 33-572 | GROMMET (3/4 id) | 3 | ||
| 2 | 99-7837 | BRACKET - lifting eye (roadside) | 1 | |
| 3 | 99-7849 | STRIP (neoprene, top edge of bulkhead, 25 ft) | A/R | |
| 4 | 98-3161 | COVER - condenser coil (rear) | 1 | |
| 5 | 98-3162 | COVER - condenser coil (front) | 1 | |
| 99-7927 | NUTSTRIP - panel | 2 | ||
| 55-1587 | SCREW - panel | 12 | ||
| 55-2086 | FLATWASHER | 24 | ||
| 55-4953 | NUT | 12 | ||
| 6 | 55-2969 | SCREW - unit | 10 | |
| 55-2959 | LOCKWASHER | 10 | ||
| 55-2958 | FLATWASHER | 10 | ||
| 7 | 99-7838 | BRACKET - lifting eye (curbside) | 1 | |
| 8 | 91-1269 | BRACKET - receiver/dehydrator | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 9 | 55-2365 | HANGER - dehydrator | 1 | |
| 55-4954 | SCREW - hanger | 1 | ||
| 55-2114 | NUT (hex) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2979 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 10 | 98-3840 | FRAME - evaporator | 1 | |
| 91-2358 | BAFFLE - frame (evaporator) | 2 | ||
| 99-1441 | EXTRUSION - rubber (baffle) | 2 | ||
| 55-5638 | SCREW - baffle | 4 | ||
| 99-7859 | NUTSTRIP - frame (3 nuts) | 1 | ||
| 99-9036 | CHANNEL - base stiffener | 2 | ||
| 99-8471 | NUTSTRIP (2 nuts, 1/4-20) | 1 | ||
| 99-9032 | NUTSTRIP (1 nut, 1/4-20) | 1 | ||
| 99-9034 | NUTSTRIP (5/16-18) | 1 | ||
| 55-3010 | RIVET - nut | 4 | ||
| 33-1715 | STRIP - evaporator to condenser (neoprene) | A/R | ||
| 11 | 55-5400 | CLAMP - hose | 4 | |
| 12 | 11-3652 | HOSE - drain | A/R | |
| 13 | 99-7861 | BRACKET - panel | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 33-489 | GROMMET | 2 | ||
| 14 | 99-7847 | BOLTSTRIP | 1 | |
| 55-3010 | RIVET - strip | 2 | ||
| 15 | 99-7860 | CHANNEL - reinforcement | 1 | |
| 55-2969 | SCREW - channel | 4 | ||
| 55-4954 | NUT | 4 | ||
| 16 | 91-1268 | BRACKET - screen support | 1 | |
| 55-2969 | SCREW - bracket | 8 | ||
| 55-2958 | FLATWASHER | 16 | ||
| 55-4954 | NUT | 8 | ||
| 17 | 99-8032 | BOLTSTRIP | 4 | |
| 55-2914 | SCREW - unit mounting | 8 | ||
| 18 | 99-7875 | CHANNEL - panel | 2 | |
| 55-4954 | NUT - channel | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 19 | 98-2728 | DOOR - evaporator (right) | 1 | |
| 20 | 98-2726 | GUARD - fan | 2 | |
| 21 | 55-1587 | SCREW - guard | 4 | |
| 55-3045 | WASHER - dome | 16 | ||
| 55-3059 | NUT - captive | 8 | ||
| 22 | 98-2727 | DOOR - evaporator (left) | 1 | |
| 23 | 98-3160 | PANEL - orifice | 1 | |
| 55-2977 | SCREW - orifice | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 12 | ||
| 24 | 99-8938 | SHIELD - evaporator fan | 2 | |
| 25 | 91-780 | SHIELD - air | 2 | |
| 55-2991 | SCREW - shield | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 26 | 91-1270 | BRACKET - receiver tank (bottom) | 1 |
