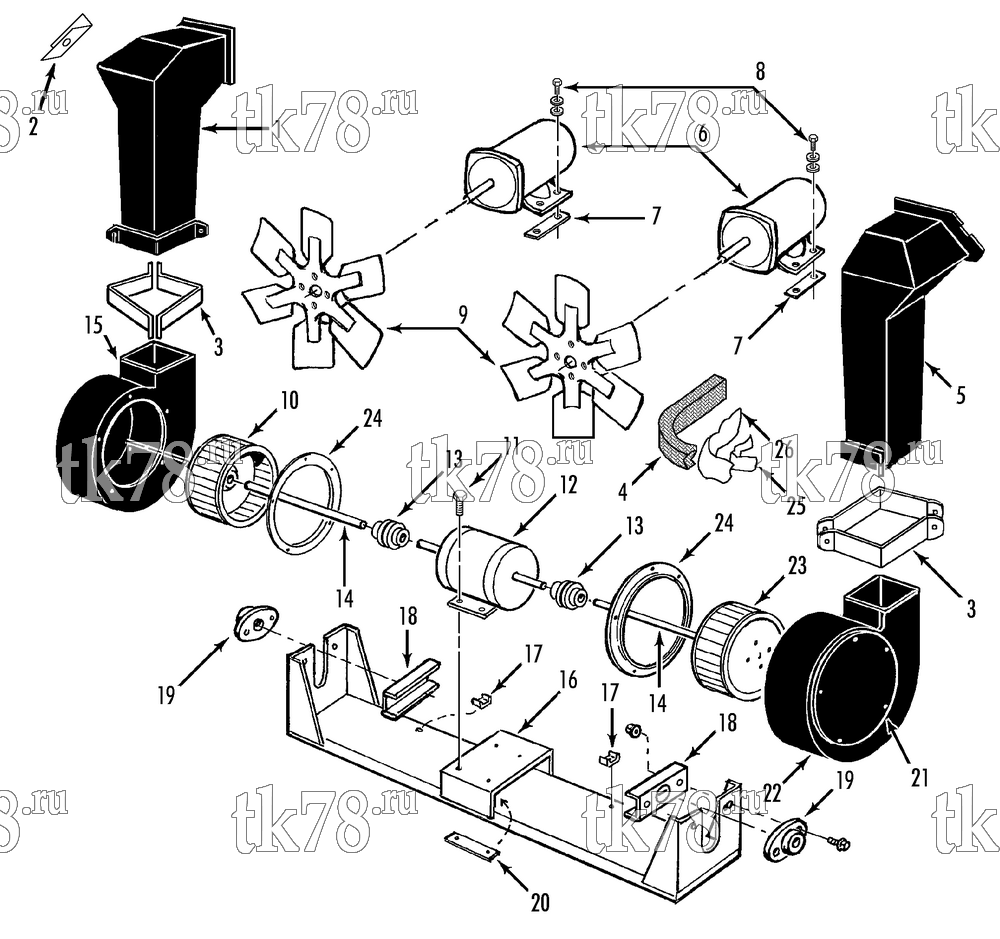

Установкa Thermo King T3-M8A схема BLOWERS & FANS – 78D6
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3157 | DUCT - roadside (102 inch) | 1 | |
| 98-3229 | DUCT - roadside (96 inch) | 1 | ||
| 99-7848 | BOLTSTRIP - duct | 2 | ||
| 55-4165 | SCREW - boltstrip | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 2 | 99-9613 | BRACKET - duct | 4 | |
| 55-2977 | SCREW - clamp | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 3 | 99-7843 | CLAMP - duct (102 inch) | 2 | |
| 99-8333 | CLAMP - duct (96 inch) | 2 | ||
| 4 | 99-7245 | STRIP - foam (1.5 wide x .38 thick) | A/R | |
| 5 | 98-3158 | DUCT - curbside (102 inch) | 1 | |
| 98-3230 | DUCT - curbside (96 inch) | 1 | ||
| 6 | 104-476 | MOTOR - condenser fan (27VDC, 3/4 hp, Ohio Electric perm magnet, see 75E7) | 1 | |
| 104-460 | MOTOR (27VDC, 0.8 hp GE tap wound field) | 1 | ||
| 7 | 99-8335 | NUTSTRIP | 4 | |
| 55-3035 | RIVET - blind | 4 | ||
| 8 | 55-2969 | SCREW - motor | 8 | |
| 55-4727 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 9 | 78-586 | FAN - complete | 2 | |
| 77-1457 | HUB - condenser fan | 2 | ||
| 10 | 77-1483 | WHEEL - blower (cw, roadside) | 1 | |
| 11 | 55-2969 | SCREW - motor | 4 | |
| 55-4727 | WASHER | 4 | ||
| 12 | 104-323 | MOTOR - evaporator blower (27VDC, 1.25 hp, Ohio Electric perm magnet, see 76C1) | 1 | |
| 104-461 | MOTOR - evaporator blower (G.E., see 77D12) | 1 | ||
| 13 | 77-2589 | COUPLING | 2 | |
| 14 | 77-1520 | SHAFT | 2 | |
| 15 | 98-3198 | HOUSING - blower (roadside, 102 inch) | 1 | |
| 98-3233 | HOUSING - blower (roadside, 96 inch) | 1 | ||
| 55-3031 | SCREW - housing | 5 | ||
| 55-3472 | NUT - jam | 3 | ||
| 55-4560 | NUT - blower | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 16 | 98-2699 | MOUNT - motor | 1 | |
| 55-2963 | SCREW - mount to frame | 8 | ||
| 55-5032 | NUT - captive | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 17 | 99-9646 | MOUNT - cable tie (0.375 dia) | 3 | |
| 99-9647 | MOUNT - cable tie (0.50 dia) | 1 | ||
| 99-9648 | MOUNT - cable tie (0.75 dia) | 1 | ||
| 18 | 99-7864 | BRACKET - bearing | 2 | |
| 19 | 77-1807 | BEARING - flange | 2 | |
| 55-3089 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 20 | 99-8335 | NUTSTRIP - motor | 2 | |
| 55-3035 | RIVET - strip | 2 | ||
| 21 | 99-9316 | PLATE - blower housing cover | 2 | |
| 55-4546 | SCREW - plate | 10 | ||
| 22 | 98-3164 | HOUSING - blower (curbside, 102 inch) | 1 | |
| 98-3232 | HOUSING - blower (curbside, 96 inch) | 1 | ||
| 55-2977 | SCREW - housing | 3 | ||
| 55-3472 | NUT - jam | 3 | ||
| 55-4953 | NUT - blower | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 23 | 77-1484 | WHEEL - blower (ccw, roadside) | 1 | |
| 24 | 77-1834 | RING - inlet | 2 | |
| 25 | 99-9553 | TAPE (2 in, aluminum) | A/R | |
| 26 | 99-9554 | TAPE - sealer (manus, 2 x 1/8 thk) | A/R |
