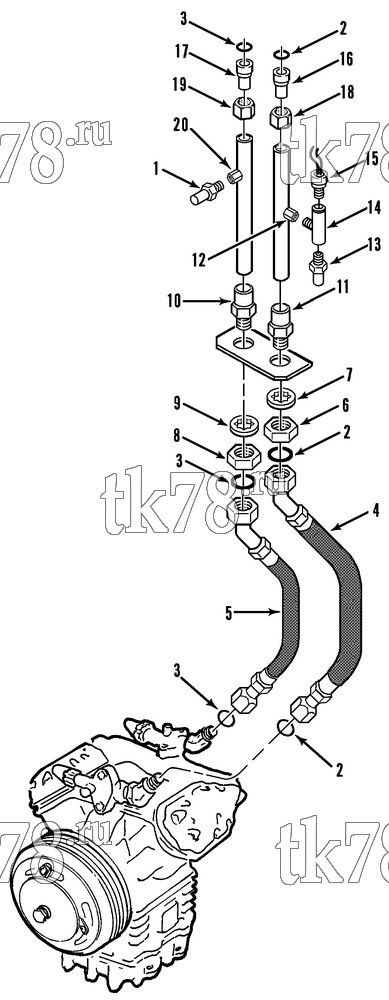

Установкa Thermo King T3-M32 схема COMPRESSOR CONNECTIONS & HOSES (813121 & 813122) – 93C10
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-2886 | VALVE (Schrader) | 1 | |
| 55-5672 | CAP - valve | 1 | ||
| 2 | 33-1777 | O-RING - suction (1/8 thk) | 3 | |
| 3 | 33-1785 | O-RING - discharge (1/8 thk) | 3 | |
| 4 | 66-5641 | HOSE - suction (#20) | 1 | |
| 5 | 66-4505 | HOSE - discharge (#16) | 1 | |
| 6 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 7 | 55-5742 | LOCKWASHER (#20) | 1 | |
| 8 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 9 | 55-5741 | LOCKWASHER (#16) | 1 | |
| 10 | 66-5247 | ADAPTER - bulkhead (#16, discharge) | 1 | |
| 11 | 55-7537 | ADAPTER - suction (bulkhead, #20) | 1 | |
| 12 | 66-3570 | FITTING - saddle | 1 | |
| 13 | 66-5642 | VALVE (Schrader) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 33-768 | GASKET - valve | 1 | ||
| 14 | 55-184 | TEE | 1 | |
| 15 | 44-6372 | SWITCH - lpco (10 psi, R22) | 1 | |
| 44-4338 | SWITCH - lpco only | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 16 | 55-5939 | SLEEVE - adapter (suction, #20) | 1 | |
| 17 | 55-5938 | SLEEVE - adapter (discharge, #16) | 1 | |
| 18 | 55-5935 | NUT - adapter (suction, #20) | 1 | |
| 19 | 55-5936 | NUT - adapter (discharge, #16) | 1 | |
| 20 | 66-4553 | FITTING - saddle | 1 |
