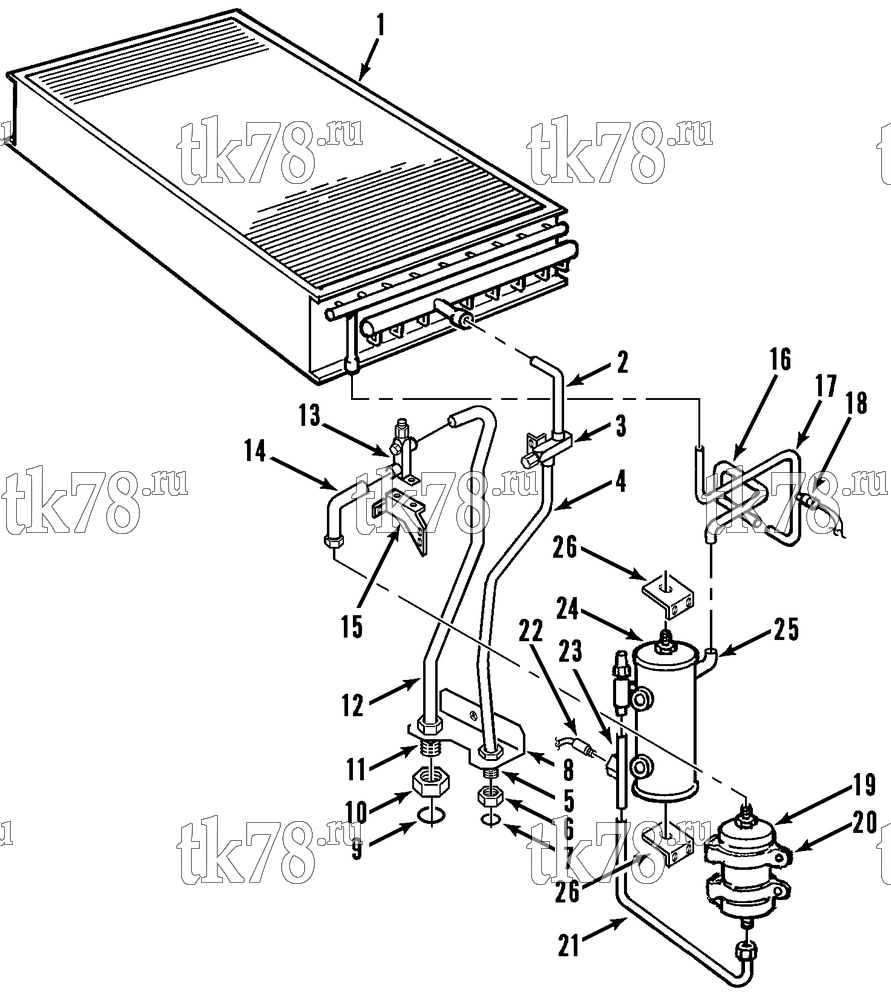

Установкa Thermo King T2C/TEU8 M2 схема CONDENSER REFRIGERATION COMPONENTS – 103C10
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-688 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 8 | ||
| 99-5966 | STRIP - sealing (50 ft) | A/R | ||
| 2 | 66-6283 | TUBE - discharge (valve to coil) | 1 | |
| 3 | 66-4172 | VALVE - shutoff | 1 | |
| 4 | 66-5564 | TUBE - valve to bulkhead | 1 | |
| 5 | 66-5247 | ADAPTER - bulkhead (#16, o-ring seal) | 1 | |
| 6 | 55-5740 | NUT - bulkhead adapter (#16) | 1 | |
| 55-5741 | LOCKWASHER | 1 | ||
| 7 | 33-1785 | O-RING - discharge (15/16 id) | 1 | |
| 8 | 91-3537 | ANGLE - adapter | 1 | |
| 91-1884 | BRACKET - adapter support | 1 | ||
| 33-810 | GROMMET | 1 | ||
| 55-1587 | SCREW - angle | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 9 | 33-2193 | O-RING - liquid (11/16 id) | 1 | |
| 10 | 55-6812 | NUT - bulkhead adapter (#12) | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 11 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 12 | 66-6216 | TUBE - bulkhead to valve | 1 | |
| 91-758 | CLAMP - tube | 1 | ||
| 55-3675 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 13 | 66-2104 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 14 | 66-6215 | TUBE - dehydrator to valve | 1 | |
| 55-4737 | NUT (hex flare) | 1 | ||
| 15 | 91-2292 | BRACKET - shutoff valve | 1 | |
| 55-1587 | SCREW - bracket/valve | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 16 | 66-3887 | TUBE - condenser to receiver | 1 | |
| 17 | 66-3885 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 18 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 19 | 66-4858 | DEHYDRATOR | 1 | |
| 20 | 55-2365 | HANGER - dehydrator | 2 | |
| 55-3675 | SCREW (1/4-20 x 1-3/4) | 2 | ||
| 55-2957 | SCREW (1/4-20 x 5/8) | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 21 | 66-6217 | TUBE - receiver to dehydrator | 1 | |
| 55-4737 | NUT (hex flare) | 1 | ||
| 22 | 44-6349 | SWITCH - 2 speed condenser fan | 1 | |
| 23 | 66-6214 | TUBE - receiver outlet | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 24 | 67-2325 | TANK - receiver (see 83B7) | 1 | |
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 25 | 55-3248 | ELBOW - receiver inlet | 1 | |
| 26 | 99-7349 | BRACKET - receiver | 2 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 |
