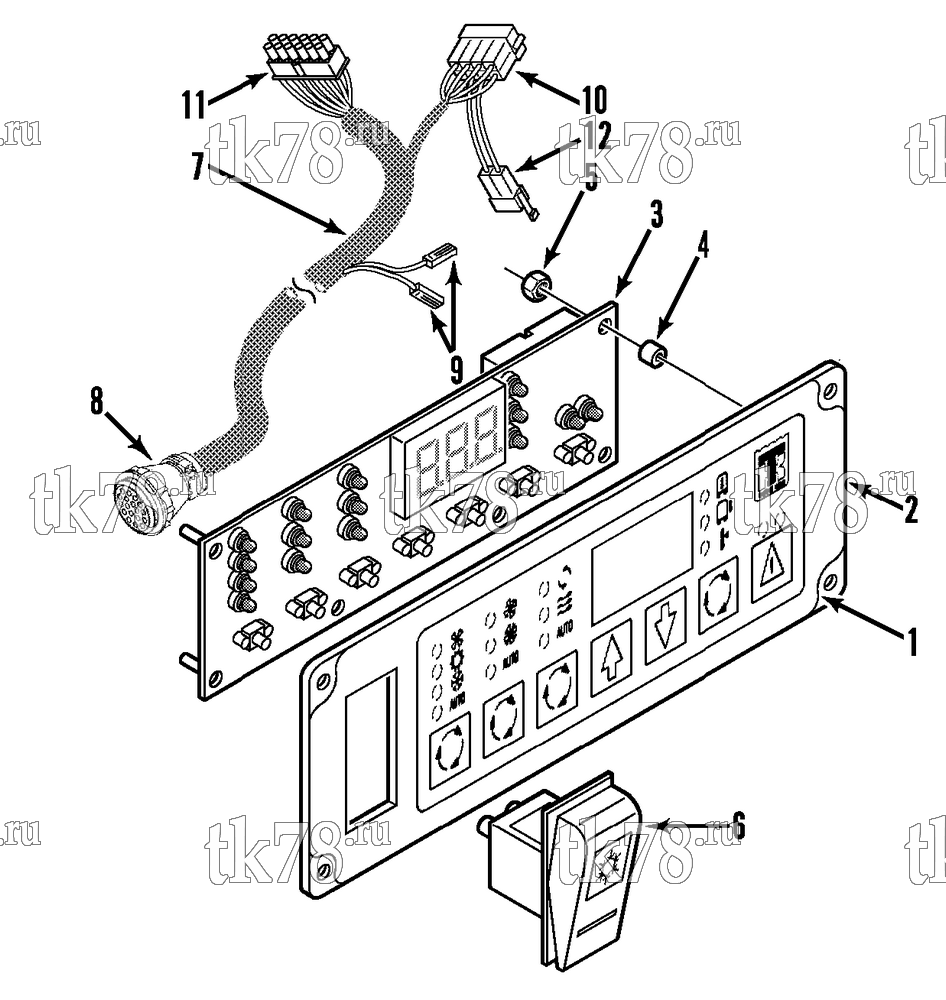

Установкa Thermo King T2-M98 схема DISPLAY PANEL - DRIVER – 187E3
Обновление от: 8/26/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1865 | PANEL - driver display | 1 | ||
| 1 | 91-7163 | NAMEPLATE - panel | 1 | |
| 2 | 91-7162 | PLATE - driver panel | 1 | |
| 3 | 41-2497 | BOARD - printed circuit display | 1 | |
| 4 | 55-8368 | SPACER - nylon | 6 | |
| 5 | 55-7778 | NUT | 6 | |
| 6 | 41-1503 | SWITCH - on/off | 1 | |
| 7 | 41-5609 | HARNESS - driver control (assembly) | 1 | |
| 8 | 41-743 | CONNECTOR - circular (14-pin) | 1 | |
| 44-9343 | PIN - connector | 14 | ||
| 44-8779 | CLAMP - connector | 1 | ||
| 9 | 44-6381 | CONNECTOR (1-pin) | 2 | |
| 10 | 41-1508 | SOCKET - special switch (8-pin) | 1 | |
| 11 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 41-1807 | TERMINAL - socket | 14 | ||
| 12 | 41-1507 | CONNECTOR - inline (2 terminal) | 1 | |
| 44-5835 | CONNECTOR - inline (2 terminal, see 115D14) | 1 | ||
| 33-739 | GROMMET (0.50 id) | 1 | ||
| 33-2110 | GROMMET (1.00 id) | 1 |
