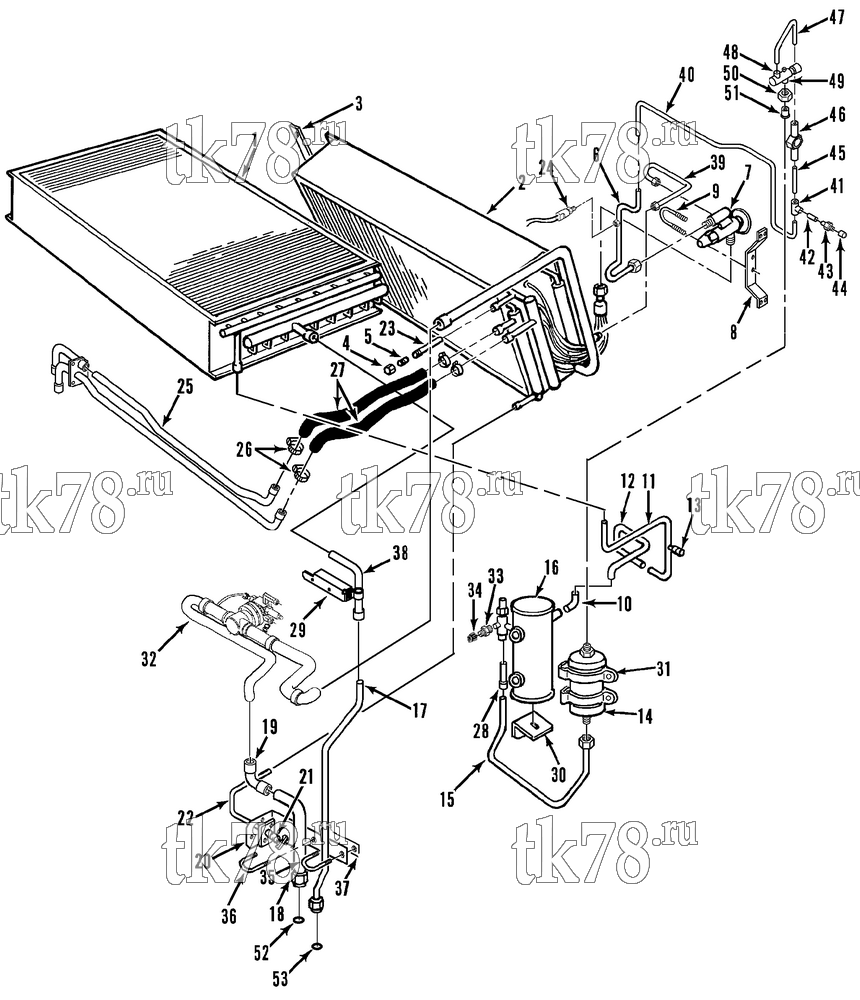

Установкa Thermo King T2-M83 схема REFRIGERATION COMPONENTS (w/ EPR VALVE) – 142A6
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 67-1617 | COIL - condenser (aluminum fin, T2-M63) | 1 |
| 67-1165 | COIL - condenser (copper fins) | 1 | |
| 55-1587 | SCREW - coil | 11 | |
| 55-2086 | FLATWASHER | 11 | |
| 55-1800 | LOCKWASHER | 1 | |
| 55-3059 | NUT - captive | 3 | |
| 55-6526 | INSERT | 8 | |
| 99-5966 | STRIP (rubber, 50 ft) | A/R | |
| 2 | 67-718 | COIL - evaporator/heater (no lacquer) | 1 |
| 67-867 | COIL - evaporator/heater (water lacquer) | 1 | |
| 3 | 99-7803 | NUTSTRIP - coil | 2 |
| 55-1714 | RIVET - strip | 4 | |
| 55-1587 | SCREW - coil | 6 | |
| 55-4742 | FLATWASHER | 6 | |
| 55-1800 | LOCKWASHER | 6 | |
| 99-2996 | STRIP (rubber, 50 ft) | A/R | |
| 4 | 11-2886 | VALVE (see 119G12) | 1 |
| 5 | 66-3895 | TUBE - adapter (air bleed) | 1 |
| 6 | 66-8829 | TUBE - bulkhead to expansion valve | 1 |
| 7 | 66-7371 | VALVE - expansion (R134a) | 1 |
| 66-7393 | VALVE - expansion (R22) | 1 | |
| 66-3592 | SCREEN - inlet | 1 | |
| 66-4213 | ELEMENT - power | 1 | |
| 66-8895 | VALVE - expansion (R407C) | 1 | |
| 8 | 99-7804 | BRACKET - expansion valve | 1 |
| 9 | 55-5211 | U-BOLT - valve | 1 |
| 55-2001 | FLATWASHER | 2 | |
| 55-4560 | NUT - u-bolt | 2 | |
| 55-2991 | SCREW - bracket | 4 | |
| 55-2001 | FLATWASHER | 8 | |
| 55-4560 | NUT | 4 | |
| 10 | 55-3248 | ELBOW - receiver inlet | 1 |
| 11 | 66-8581 | TUBE - condenser to receiver | 1 |
| 55-3295 | FITTING - saddle | 1 | |
| 12 | 66-8582 | TUBE - bulkhead | 1 |
| 13 | 66-7392 | VALVE - relief (see 119B8) | 1 |
| 10-66-7392 | Предохранительный клапан | 3 380 ₽ |
| 14 | 61-600 | DEHYDRATOR | 1 |
| US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 910 ₽ |
| PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 170 ₽ |
| 33-566 | O-RING (1/2ID) | 1 | |
| 33-2115 | O-RING (5/8ID) | 1 | |
| 15 | 66-8583 | TUBE - receiver to dehydrator | 1 |
| 16 | 67-2325 | TANK - receiver (see 128B13) | 1 |
| 55-4955 | NUT - tank | 2 | |
| 55-2641 | FLATWASHER | 2 | |
| 17 | 66-8832 | TUBE - discharge (040685 & 040687) | 1 |
| 66-9697 | TUBE - discharge (099051 & 099052) | 1 | |
| 66-8868 | TUBE - discharge (099256, T2-M63) | 1 | |
| 55-5355 | ADAPTER - discharge | 1 | |
| 66-5247 | ADAPTER - bulkhead (#16, discharge, o-ring seal) | 1 | |
| 18 | 66-5544 | TUBE - suction adapter | 1 |
| 55-7537 | ADAPTER - suction tube | 1 | |
| 19 | 66-3890 | TUBE - elbow | 1 |
| 20 | 91-1650 | BRACKET - tube (discharge/suction, 040685, 040687, 040691) | 1 |
| 91-9595 | BRACKET - tube (discharge/suction, 099051, 099052, 040661, 099264) | 1 | |
| 91-1884 | BRACKET - tube (discharge/suction, 099256, T2-M63) | 1 | |
| 55-1587 | SCREW - bracket | 2 | |
| 55-2086 | FLATWASHER | 2 | |
| 21 | 55-5128 | DRAIN COCK | 1 |
| 22 | 66-8578 | PLATE & TUBE - drain | 1 |
| 23 | 66-3894 | TUBE - drain | 1 |
| 24 | 44-6349 | SWITCH - condenser fan (24V, for connectors see 115D14) | 1 |
| 44-6427 | SWITCH - only | 1 | |
| 44-6965 | SWITCH - condenser fan (12V, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only | 1 | |
| 25 | NSS | TUBE - heater inlet/outlet (see 142E6, 145B12 or 153C6) | 1 |
| 67-1400 | TUBE - heater inlet/outlet (040705) | 1 | |
| 26 | 91-2632 | CLAMP - hose (040712, T2-M63) | 4 |
| 55-7415 | CLAMP - hose (040713) | 4 | |
| 27 | 11-5965 | HOSE - water | 2 |
| 28 | 66-5151 | TUBE - receiver tank outlet | 1 |
| 29 | 99-7827 | BRACKET - discharge tube | 1 |
| 55-2977 | SCREW - bracket | 1 | |
| 55-1800 | LOCKWASHER | 1 | |
| 55-2086 | FLATWASHER | 1 | |
| 30 | 99-7349 | BRACKET - receiver | 2 |
| 55-2977 | SCREW - bracket | 4 | |
| 55-2086 | FLATWASHER | 8 | |
| 55-4953 | NUT - bracket | 4 | |
| 31 | 55-2192 | HANGER - dehydrator | 2 |
| 55-3675 | SCREW - dehydrator | 2 | |
| 55-4953 | NUT | 2 | |
| 55-2977 | SCREW - hanger | 2 | |
| 55-2086 | FLATWASHER | 4 | |
| 55-1800 | LOCKWASHER | 2 | |
| 55-6526 | INSERT | 2 | |
| 32 | 66-5136 | VALVE - epr (R22, R407C see 142A7) | 1 |
| 66-8122 | VALVE - epr (R134a see 142A7) | 1 | |
| 33 | 66-8086 | FITTING - discharge (R134a) | 1 |
| 34 | 66-7182 | CAP - fitting (R134a) | 1 |
| 35 | 55-5122 | U-BOLT - discharge tube | 1 |
| 36 | 55-4397 | U-BOLT - suction tube | 1 |
| 55-4953 | NUT - u-bolt | 4 | |
| 37 | 99-8939 | SPACER - discharge | 1 |
| 38 | 91-5114 | CLAMP - tube | 1 |
| 55-3675 | SCREW - clamp | 1 | |
| 55-3059 | NUT - captive | 1 | |
| 55-1800 | LOCKWASHER | 2 | |
| 39 | 66-3878 | TUBE - equalizer | 1 |
| 40 | 66-8827 | TUBE - bulkhead to indicator (no driver air, T2-M63) | 1 |
| 66-8587 | TUBE - bulkhead to tee (w/ driver air) | 1 | |
| 41 | 55-2296 | TEE | 1 |
| 42 | 66-7199 | TUBE | 1 |
| 43 | 55-1610 | ADAPTER | 1 |
| 44 | 55-621 | CAP | 1 |
| 45 | 66-8395 | TUBE - sight glass to tee | 1 |
| 46 | 66-1188 | INDICATOR - liquid | 1 |
| 47 | 66-8584 | TUBE - valve to sight glass | 1 |
| 66-8836 | TUBE - dehydrator to sight glass (no shutoff) | 1 | |
| 48 | 66-8586 | VALVE - shutoff | 1 |
| 91-7826 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | |
| 55-2086 | FLATWASHER | 2 | |
| 55-1800 | LOCKWASHER | 2 | |
| 49 | 66-8585 | TUBE | 1 |
| 50 | 55-6838 | NUT | 1 |
| 51 | 55-6837 | SLEEVE | 1 |
| 52 | 33-544 | O-RING - suction adapter | 1 |
| 53 | 33-594 | O-RING - discharge adapter | 1 |
