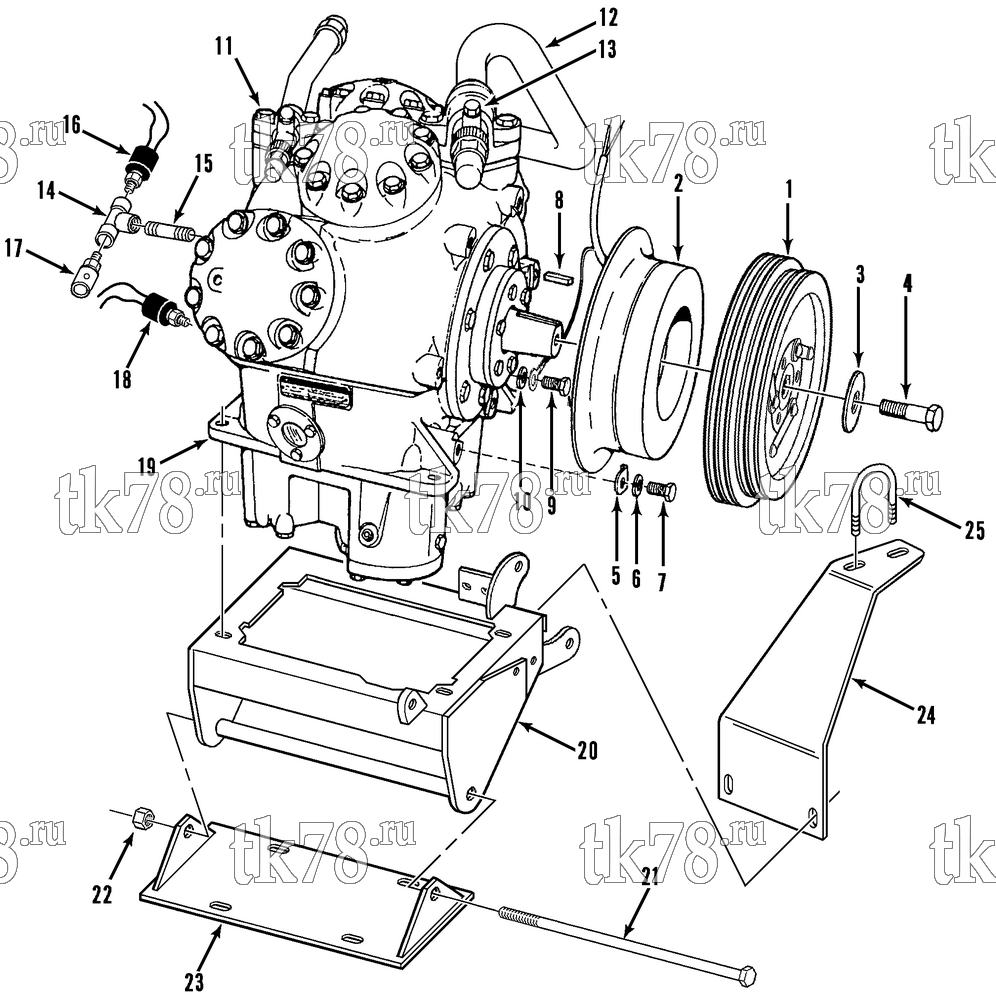

Установкa Thermo King T2-M19A & M19C схема COMPRESSOR GROUP (KIT 713991) – 105C7
Обновление от: 3/12/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 307-170 | CLUTCH - pulley (4 groove, M19C) | 1 | |
| 55-1842 | SCREW - set | 1 | ||
| 2 | 304-256 | COIL - clutch (24VDC) | 1 | |
| 3 | 305-599 | WASHER - notched | 1 | |
| 4 | 305-989 | SCREW (hh) | 1 | |
| 5 | 309-671 | RETAINER - clutch coil | 6 | |
| 6 | 55-375 | LOCKWASHER | 6 | |
| 7 | 55-329 | SCREW - coil | 6 | |
| 8 | 305-333 | KEY | 1 | |
| 9 | 55-329 | SCREW - ground terminal | 1 | |
| 10 | 305-700 | LOCKWASHER | 1 | |
| 11 | 66-6508 | VALVE & TUBE - discharge | 1 | |
| 302-101 | VALVE - service | 1 | ||
| 66-7664 | CAP - valve (brass) | 1 | ||
| 33-2648 | O-RING | 1 | ||
| 66-6506 | TUBE - discharge | 1 | ||
| 66-6507 | ADAPTER | 1 | ||
| 11-2886 | VALVE (Schrader) | 1 | ||
| 55-3674 | SCREW | 2 | ||
| 33-2805 | GASKET - discharge valve | 1 | ||
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 12 | 66-6502 | VALVE & TUBE - suction | 1 | |
| 66-6503 | TUBE | 1 | ||
| 306-804 | VALVE | 1 | ||
| 66-7665 | CAP - valve (steel) | 1 | ||
| 33-2649 | O-RING | 1 | ||
| 66-6504 | ADAPTER | 1 | ||
| 11-2886 | VALVE (Schrader) | 1 | ||
| 55-4794 | SCREW | 2 | ||
| 303-113 | GASKET - suction valve | 1 | ||
| 13 | 11-2886 | FITTING - access | 2 | |
| 14 | 55-6048 | TEE | 1 | |
| 15 | 305-352 | NIPPLE | 1 | |
| 16 | 304-1822 | SWITCH - hpco | 1 | |
| 17 | 60-248 | KIT - valve | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 66-9162 | ADAPTER | 1 | ||
| 18 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 19 | 302-140 | COMPRESSOR (4GB) | 1 | |
| 11-2886 | VALVE (Schrader) | 1 | ||
| 20 | 91-4129 | SUPPORT - compressor (M19C) | 1 | |
| 21 | 305-1324 | SCREW - support | 1 | |
| 22 | 305-1317 | NUT | 1 | |
| 23 | 309-1589 | BASE - compressor | 1 | |
| 24 | 91-4128 | BRACKET - support (tube) | 1 | |
| 25 | 55-5122 | U-BOLT | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 |
