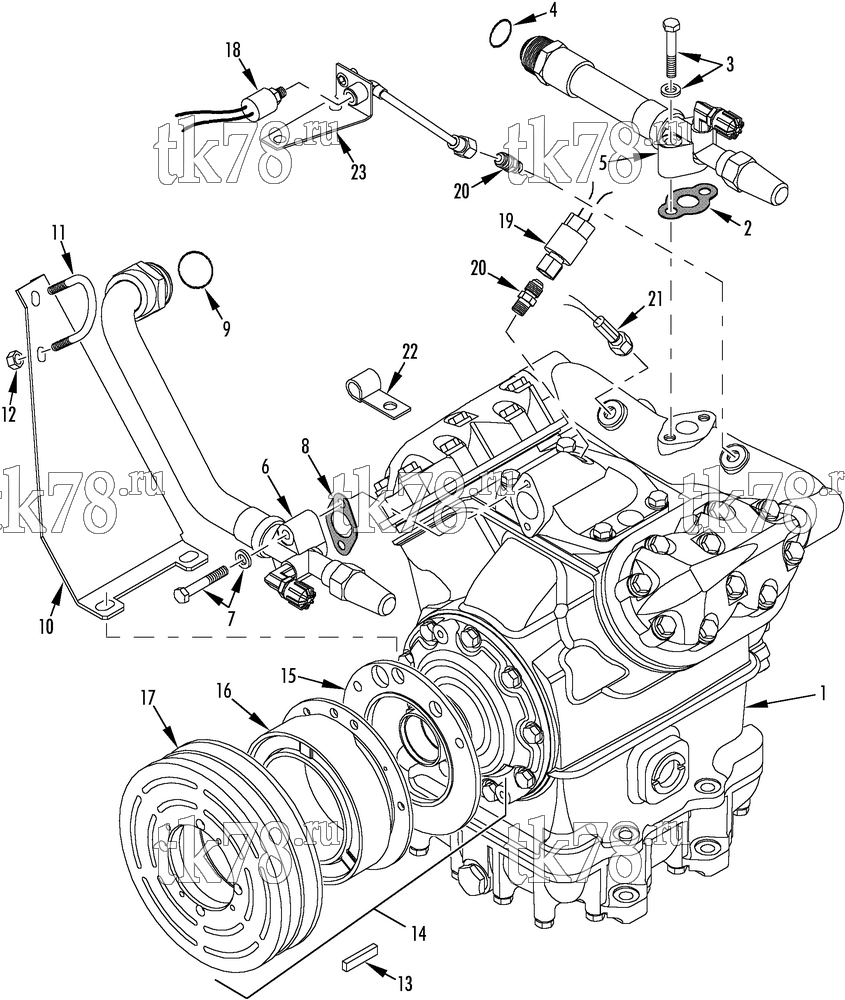

Установкa Thermo King T2-M106 схема COMPRESSOR GROUP (5D37227G43, KIT 700448) – 209D7
Обновление от: 8/29/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 2 | 33-2805 | GASKET - manifold | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 55-6776 | SCREW - discharge valve | 2 | |
| 55-6804 | WASHER - sealing | 2 | ||
| 4 | 33-594 | O-RING | 1 | |
| 5 | 66-8762 | VALVE - discharge (see 142B3) | 1 | |
| 6 | 99-9278 | VALVE - suction (see 149D9) | 1 | |
| 7 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWAHSER | 2 | ||
| 8 | 33-2541 | GASKET - suction valve | 1 | |
| 9 | 33-544 | O-RING | 1 | |
| 10 | 99-7797 | BRACKET - suction tube | 1 | |
| 55-2961 | SCREW - bracket | 2 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-4955 | NUT | 2 | ||
| 11 | 55-5122 | U-BOLT | 1 | |
| 12 | 55-4953 | NUT | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 55-9088 | KEY | 1 | |
| 14 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 153E8) | 1 | ||
| 15 | 77-1083 | PLATE | 1 | |
| 16 | 45-1998 | FIELD - clutch (after 8/01) | 1 | |
| 17 | 77-1672 | PULLEY (2-5V grooves, 7.75 in od) | 1 | |
| 18 | 41-2236 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4523 | SWITCH - only | 1 | ||
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 19 | 41-2235 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4263 | SWITCH - only | 1 | ||
| 20 | 55-459 | COUPLING | 2 | |
| 33-768 | GASKET - coupling | 2 | ||
| 21 | 41-3345 | SENSOR - discharge (for connectors see 115D14) | 1 | |
| 41-5394 | SENSOR - only | 1 | ||
| 22 | 55-5261 | CLAMP - harness (0.187 dia) | 2 | |
| 55-4383 | CLAMP - harness (0.312 dia) | 1 | ||
| 55-3024 | SCREW - clamp | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 23 | 91-8288 | BRACKET & TUBE | 1 |
