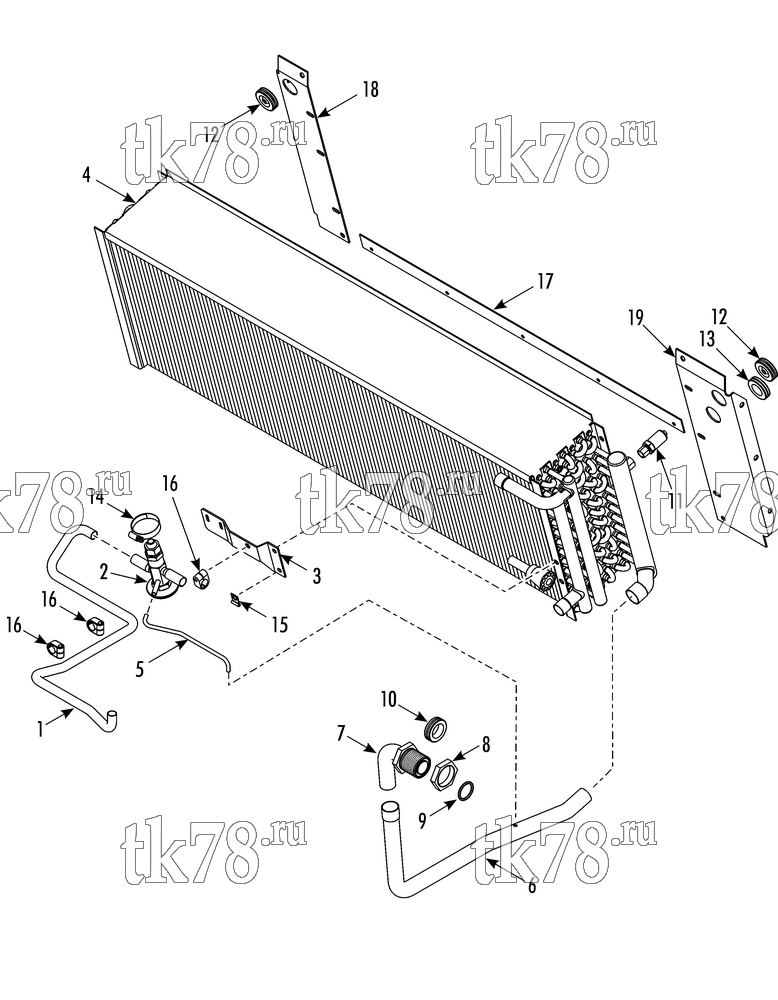

Установкa Thermo King T15-M4 схема REFRIGERATION EVAPORATOR – 264H5
Обновление от: 1/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5855 | TUBE - liquid, sightglass to valve | 1 | |
| 2 | 61-5185 | VALVE - expansion (R134a) | 1 | |
| 61-5129 | VALVE - expansion (R407c) | 1 | ||
| 3 | 92-8467 | BRACKET - valve | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 4 | 67-2506 | COIL - evaporator | 1 | |
| 55-2957 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-8711 | INSERT | 6 | ||
| 5 | 61-5180 | TUBE - equalizer | 1 | |
| 6 | 61-6385 | TUBE - suction, coil to tube | 1 | |
| 7 | 61-5857 | TUBE - suction, tube to bulkhead | 1 | |
| 55-7537 | ADAPTER - bulkhead (# 20) | 1 | ||
| 8 | 55-5739 | NUT - bulkhead | 1 | |
| 9 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 10 | 33-507 | GROMMET (7/8 id) | 1 | |
| 11 | 41-9044 | TRANSDUCER - suction | 1 | |
| 12 | 33-2110 | GROMMET (1.00 id x .125 groove) | 2 | |
| 13 | 33-1084 | GROMMET (1.00 id x .06 groove) | 1 | |
| 14 | 55-3402 | CLAMP - valve | 1 | |
| 15 | 51-2031 | CLAMP - equalizer tube (.125 id) | 1 | |
| 16 | 91-758 | CLAMP - tube (.625 id) | 3 | |
| 55-2977 | SCREW - clamp | 3 | ||
| 55-4953 | NUT | 3 | ||
| 17 | 92-8466 | PLATE - cover (evaporator bottom) | 1 | |
| 18 | 92-8464 | BRACKET - coil, roadside | 1 | |
| 19 | 92-8465 | BRACKET - coil, curbside | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-2958 | FLATWASHER | 6 |
