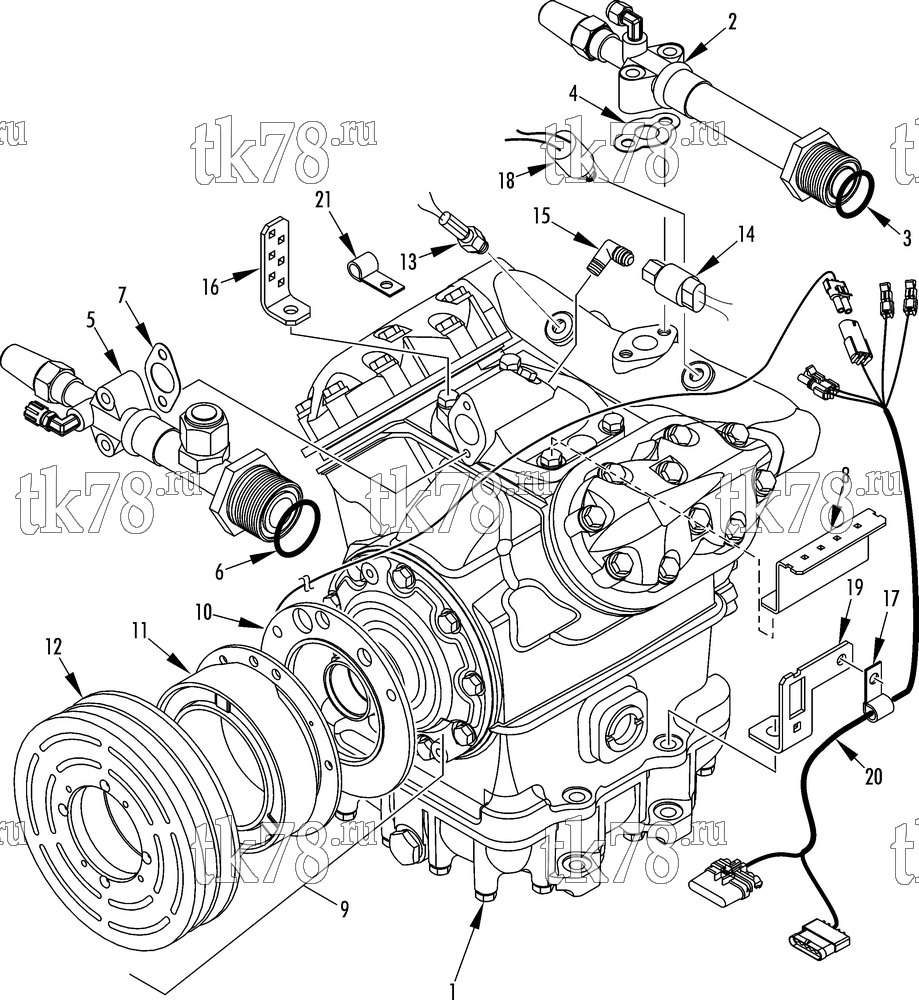

Установкa Thermo King T14-M107 схема COMPRESSOR GROUP (1E34198G03, KIT 701056) – 222B4
Обновление от: 9/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (see 228E5) | 1 | |
| 8102-917 | COMPRESSOR - X430 C5 (reman, see 228E5) | 1 | ||
| 2 | 61-277 | VALVE - discharge (see 156G4) | 1 | |
| 55-6776 | SCREW - discharge valve | 2 | ||
| 55-6804 | WASHER - sealing | 2 | ||
| 3 | 33-1785 | O-RING (#16, discharge) | 1 | |
| 4 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 61-279 | VALVE - suction (see 156G3) | 1 | |
| 55-201 | SCREW - suction valve | 2 | ||
| 55-895 | FLATWASHER | 2 | ||
| 6 | 33-1777 | O-RING (#20, suction) | 1 | |
| 7 | 33-2541 | GASKET - suction valve | 1 | |
| 8 | 92-5946 | BRACKET - compressor harness | 1 | |
| 9 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 153E8) | 1 | ||
| 10 | 77-1083 | PLATE | 1 | |
| 11 | 45-1965 | FIELD - clutch (24VDC) | 1 | |
| 12 | 77-1752 | PULLEY (2B grooved, 7.75 in od) | 1 | |
| 13 | 41-3345 | SENSOR - thermistor (discharge) | 1 | |
| 14 | 41-4558 | SWITCH - lpco | 1 | |
| 41-4559 | SWITCH - only | 1 | ||
| 15 | 55-466 | ELBOW | 1 | |
| 33-768 | GASKET - elbow | 1 | ||
| 203-393 | SEALER - thread | A/R | ||
| 16 | 92-4388 | BRACKET - compressor harness | 1 | |
| 17 | 55-9298 | CLAMP - harness | 2 | |
| 55-2957 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 18 | 41-4486 | SWITCH - hpco | 1 | |
| 41-4809 | SWITCH - only | 1 | ||
| 19 | 92-5945 | BRACKET - harness | 1 | |
| 55-3834 | SCREW - bracket | 1 | ||
| 55-2641 | LOCKWASHER | 2 | ||
| 55-4955 | NUT | 1 | ||
| 20 | 41-4810 | HARNESS - compressor (see 246D2) | 1 | |
| 21 | 55-9298 | CLAMP (0.187 dia) | 3 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 |
