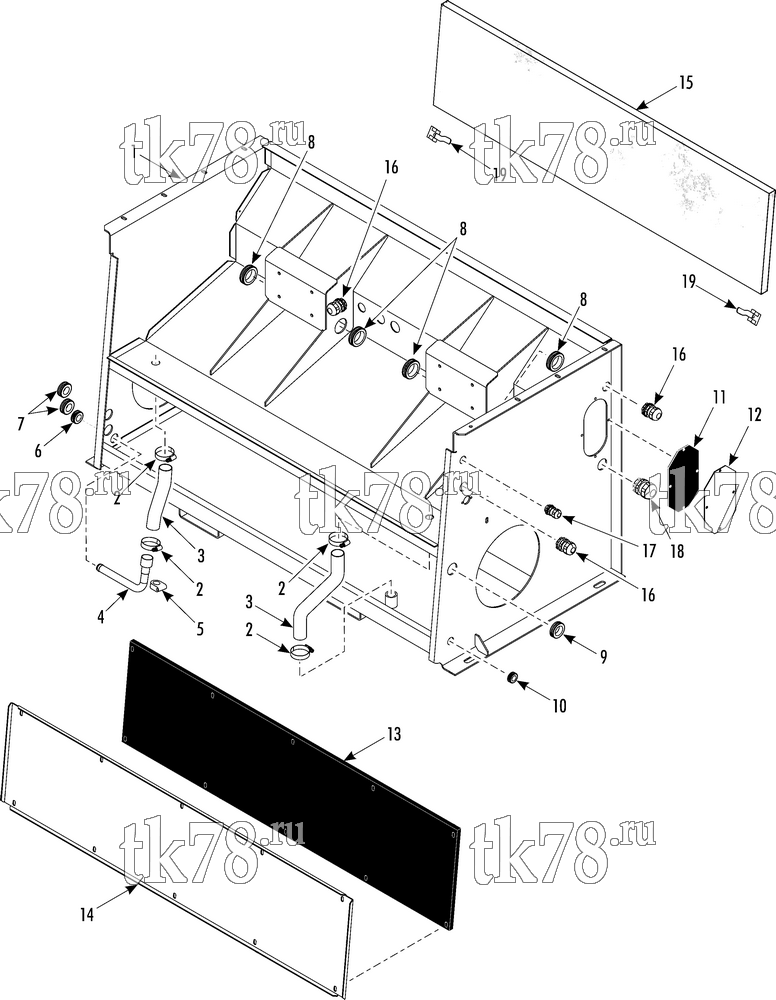

Установкa Thermo King T14-M100 схема FRAME – 244F0
Обновление от: 8/30/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8528 | FRAME | 1 | |
| 55-8979 | INSERT (.685 in long) | 21 | ||
| 55-8711 | INSERT (.585 in long) | 54 | ||
| 2 | 55-2684 | CLAMP - hose | 2 | |
| 3 | 66-8576 | HOSE - drain (1-1/4 id x 12 in long) | A/R | |
| 4 | 13-1085 | TUBE - drain | 1 | |
| 5 | 91-372 | CLAMP - tube (.75 id) | 1 | |
| 55-3344 | SCREW - clamp | 1 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-4953 | NUT | 1 | ||
| 6 | 33-810 | GROMMET (.75 id) | 1 | |
| 7 | 33-507 | GROMMET (.875 id) | 2 | |
| 8 | 33-624 | GROMMET (1.50 id) | 4 | |
| 9 | 33-2023 | GROMMET (1.125 id) | 1 | |
| 10 | 33-287 | GROMMET (.625 id) | 1 | |
| 11 | 33-4674 | INSULATION - cover | 1 | |
| 12 | 92-8458 | PLATE - fresh air | 1 | |
| 55-2991 | SCREW - cover | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 13 | 33-4675 | GASKET - cover | 1 | |
| 14 | 92-8459 | COVER - evaporator, rear | 1 | |
| 55-2977 | SCREW - cover | 10 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 15 | 92-6885 | FILTER - air, anti-microbial (optional, used with EnviroFresh option) | 1 | |
| 16 | 41-4817 | GRIP - liquid tite | 3 | |
| 17 | 41-8255 | GRIP - liquid tite | 1 | |
| 55-2699 | LOCKWASHER | 1 | ||
| 55-2836 | NUT - connector | 1 | ||
| 18 | 41-4188 | GRIP - liquid tite | 1 | |
| 41-4189 | WASHER - sealing | 1 | ||
| 55-2636 | NUT - connector | 1 | ||
| 19 | 55-4422 | FASTENER - snap | 2 | |
| 55-4580 | SCREW | 2 |
