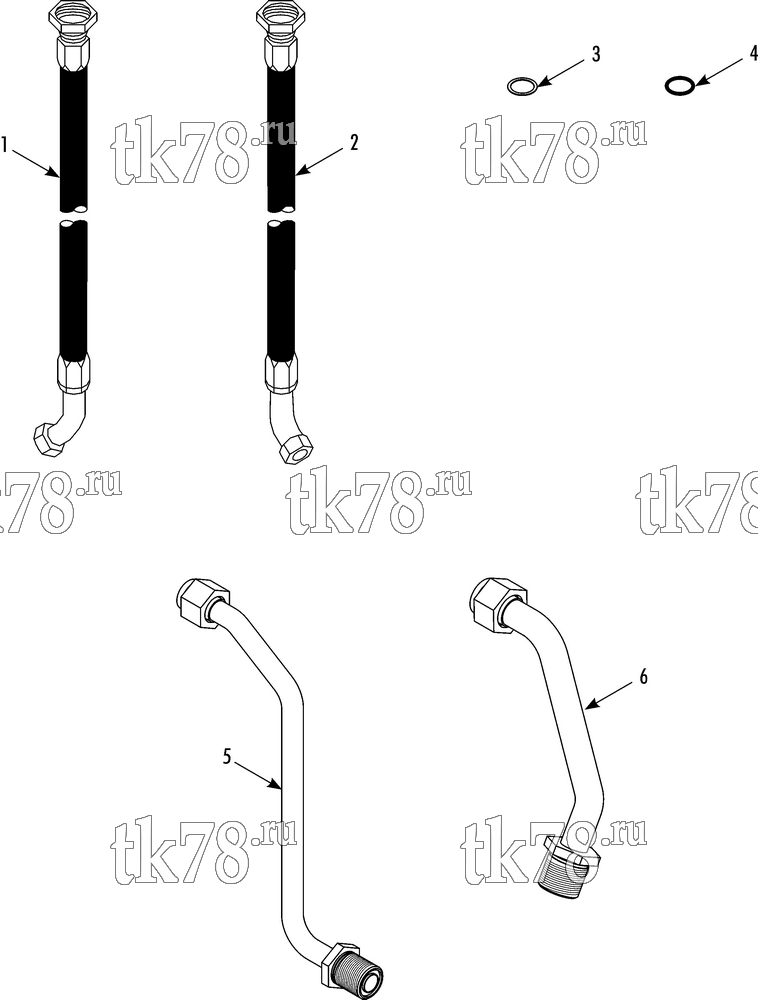

Установкa Thermo King T13-M60 схема HOSE KIT (800765) – 260G2
Обновление от: 7/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6043 | HOSE - discharge (#16, 28.25 in long) | 1 | |
| 2 | 61-6042 | HOSE - suction (#20, 29.5 in long) | 1 | |
| 3 | 33-2789 | WASHER - sealing (brass) | 3 | |
| 4 | 33-1777 | O-RING (1-3/16 id) | 3 | |
| 5 | 61-6181 | TUBE - discharge | 1 | |
| 55-5938 | SLEEVE - adapter | 1 | ||
| 55-5936 | NUT - shoulder | 1 | ||
| 66-6840 | ADAPTER (#16) | 1 | ||
| 6 | 61-6180 | TUBE - suction | 1 | |
| 55-7537 | ADAPTER (#20) | 1 | ||
| 55-5939 | SLEEVE - adapter | 1 | ||
| 55-5935 | NUT - shoulder | 1 |
