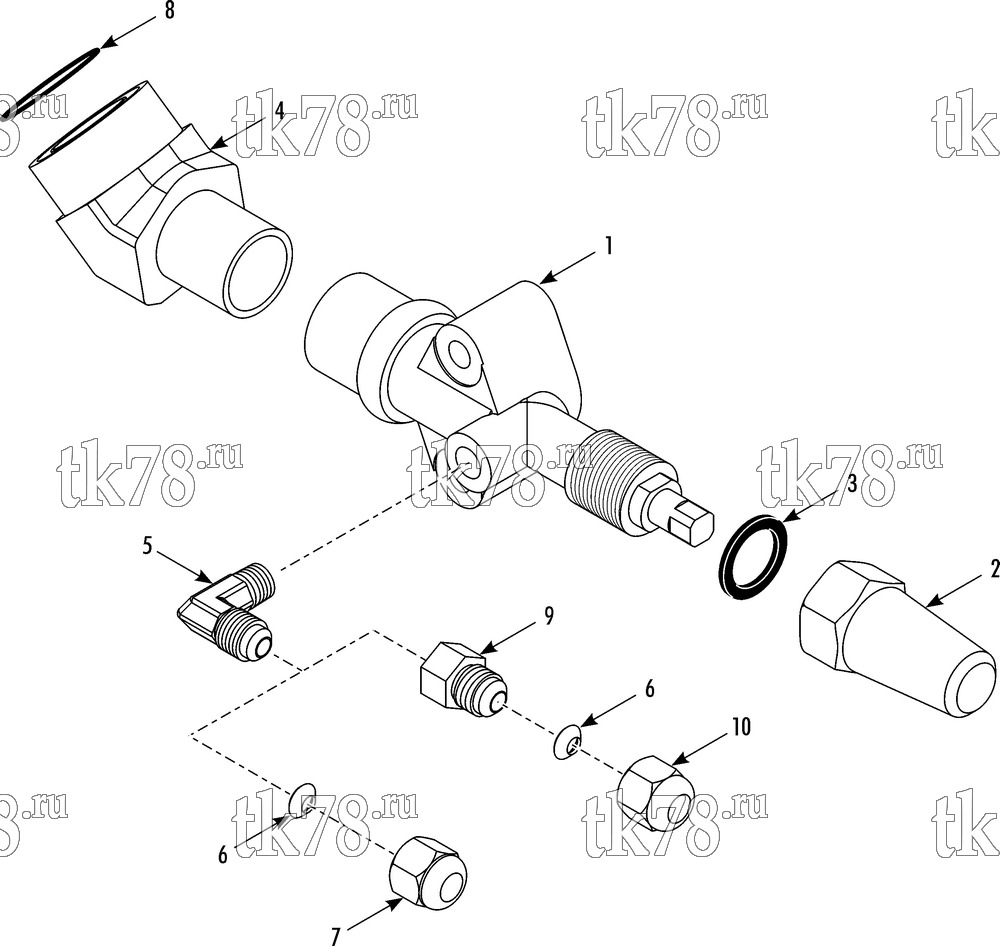

Установкa Thermo King T13-M60 схема VALVE ASSEMBLY - SUCTION – 260F0
Обновление от: 6/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 61-6179 | VALVE - suction | 1 | ||
| 1 | 66-3576 | VALVE - suction | 1 | |
| 2 | 66-3015 | CAP - service valve (brass, incl gasket) | 1 | |
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 3 | 33-350 | GASKET - cap (brass cap) | 1 | |
| 4 | 55-5887 | ADAPTER (#20) | 1 | |
| 5 | 55-466 | ELBOW | 1 | |
| 6 | 55-1983 | CAP - elbow | 1 | |
| 7 | 33-768 | GASKET - cap | 2 | |
| 8 | 33-1777 | O-RING | 1 | |
| 9 | 51-2105 | REDUCER | 1 | |
| 10 | 55-2669 | CAP | 1 |
