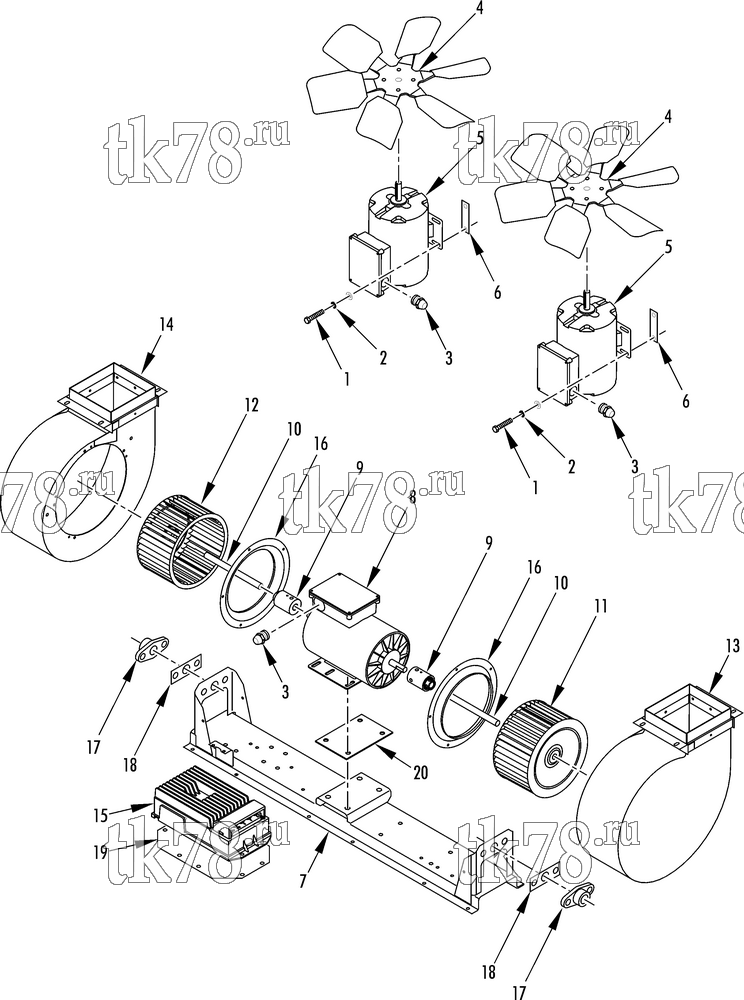

Установкa Thermo King T13-M53 схема MOTORS, BLOWERS & FANS – 230H1
Обновление от: 1/4/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2969 | SCREW - motor | 8 | |
| 2 | 55-2959 | LOCKWASHER | 8 | |
| 3 | 55-6141 | CONNECTOR (liquid tite) | 3 | |
| 55-2635 | NUT | 3 | ||
| 4 | 78-1115 | FAN | 2 | |
| 55-3089 | SCREW - fan to motor | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 77-1457 | HUB - fan | 2 | ||
| 55-2963 | SCREW - fan to hub | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 5 | 104-740 | MOTOR - condenser fan (20VAC, 3 phase) | 2 | |
| 6 | 99-8335 | NUTSTRIP | 4 | |
| 55-3035 | RIVET - blind | 4 | ||
| 7 | 98-4625 | TRAY - evaporator motor | 1 | |
| 55-2969 | SCREW - tray | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 55-8976 | INSERT - threaded | 12 | ||
| 8 | 104-741 | MOTOR - evaporator blower (20VAC, 3 phase) | 1 | |
| 55-3490 | SCREW - motor | 4 | ||
| 55-4727 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 9 | 77-2589 | COUPLING - flexible | 2 | |
| 10 | 77-2665 | SHAFT - motor | 2 | |
| 11 | 77-2519 | WHEEL - blower (ccw) | 1 | |
| 12 | 77-2518 | WHEEL - blower (cw) | 1 | |
| 13 | 98-7381 | HOUSING - blower (curbside) | 1 | |
| 14 | 98-7380 | HOUSING - blower (roadside) | 1 | |
| 55-2979 | SCREW - housing (1/4-20) | 2 | ||
| 55-4953 | NUT (1/4-20) | 2 | ||
| 55-3031 | SCREW - housing (10-32) | 10 | ||
| 55-2001 | FLATWASHER (#10) | 10 | ||
| 55-4560 | NUT (nylock, 10-32) | 10 | ||
| 55-2965 | NUT (hex, 10-32) | 10 | ||
| 15 | 41-3590 | DRIVE - motor | 1 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 40-885 | KIT - power stud cleanup (see 187F2) | 1 | ||
| 55-1587 | SCREW - drive | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 16 | 77-1834 | RING - inlet | 2 | |
| 55-4560 | NUT - ring | 10 | ||
| 17 | 77-2664 | BEARING - flange | 2 | |
| 55-2341 | SCREW - flange | 4 | ||
| 55-4931 | WASHER - spacer | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 18 | 92-761 | SPACER - bearing | 4 | |
| 19 | 91-8048 | PLATE - motor drive | 1 | |
| 55-1587 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT - threaded | 4 | ||
| 20 | 99-7780 | SPACER - motor | 1 |
