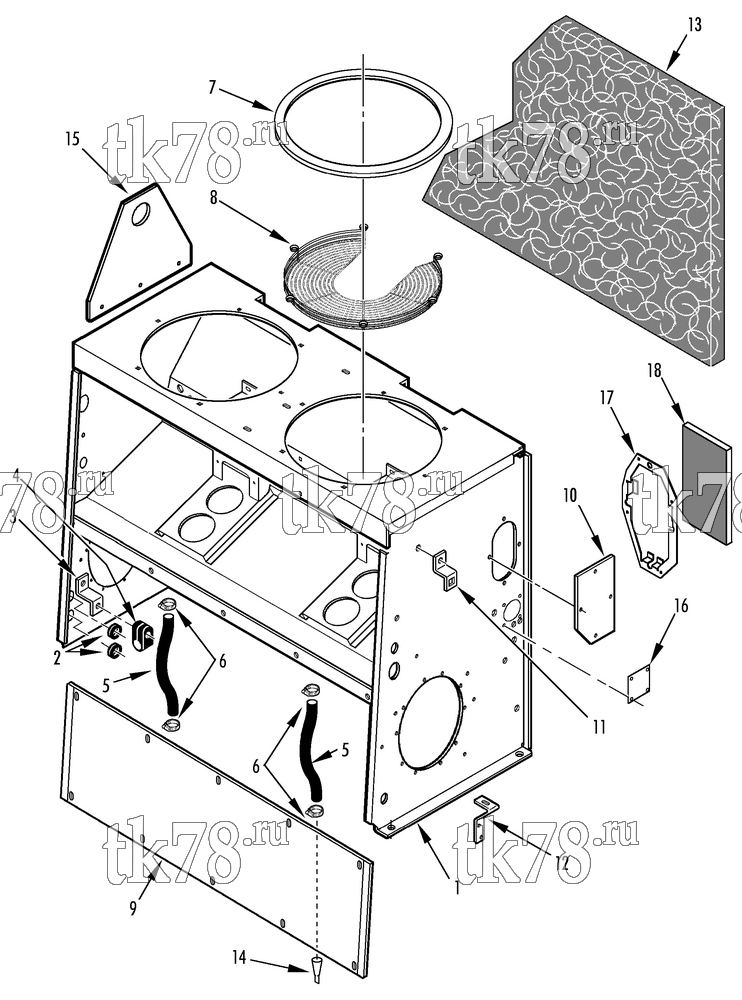

Установкa Thermo King T11-M56 схема STRUCTURAL COMPONENTS – 143F13
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5266 | FRAME (M31L, M32, M33, M34, M35, M36, M42, M44B, M48, before 6/01) | 1 | |
| 98-6589 | FRAME (M31L, M32, M32B, M33, M34, M35, M36, M42, M44B, M48, after 5/01) | 1 | ||
| 98-5263 | FRAME (M40, M43, M44, M45, M46, M46A, M47, M49, M50, M51, M54, M55, M57) | 1 | ||
| 55-8711 | INSERT | 18 | ||
| 2 | 33-507 | GROMMET (7/8 in dia) | 1 | |
| 33-629 | GROMMET (1.0 in dia) | 1 | ||
| 3 | 91-5558 | BRACKET - water line | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-6526 | INSERT - threaded | 1 | ||
| 4 | 91-372 | CLAMP - tube | 1 | |
| 55-3675 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 5 | 66-6928 | HOSE - drain | A/R | |
| 6 | 55-2684 | CLAMP - hose | 4 | |
| 7 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 55-2945 | WASHER - special | 12 | ||
| 8 | 98-5264 | GUARD - fan | 2 | |
| 55-2979 | SCREW - guard & orifice | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-3045 | LOCKWASHER - dome | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 9 | 98-4535 | COVER - rear | 1 | |
| 98-6100 | COVER - rear (M35B, M46A & M57) | 1 | ||
| 33-2855 | GASKET - cover | 1 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-2977 | SCREW - cover | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-8711 | INSERT - threaded | 10 | ||
| 10 | 98-4536 | COVER - fresh air | 1 | |
| 92-852 | INSULATION - cover | 1 | ||
| 55-2991 | SCREW - cover | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-8798 | INSERT - threaded | 4 | ||
| 11 | 91-5559 | BRACKET - shutoff valve | 1 | |
| 55-1587 | SCREW - valve | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-8711 | INSERT - threaded | 1 | ||
| 12 | 91-5563 | ANGLE - prop rod | 1 | |
| 55-2864 | RIVET - blind | 2 | ||
| 13 | 91-6423 | FILTER - air | 1 | |
| 91-6292 | FILTER - air (M43) | 1 | ||
| 91-6291 | FILTER - air (M40, M44, M44B, M45, M46, M46A, M49, M54, M56, M57) | 1 | ||
| 91-9641 | FILTER - air (M32B & M35B) | 1 | ||
| 14 | 66-1273 | VALVE - check (hose) | 2 | |
| 15 | 91-8881 | BRACKET - lifting | 2 | |
| 55-3305 | SCREW - bracket | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-8976 | INSERT | 6 | ||
| 16 | 92-853 | COVER - driver display | 2 | |
| 55-1587 | SCREW - cover | 8 | ||
| 17 | 92-2059 | PLATE - filter (M46A) | 1 | |
| 55-2260 | RIVET - switch | 4 | ||
| 18 | 92-1160 | FILTER (M46A) | 1 |
