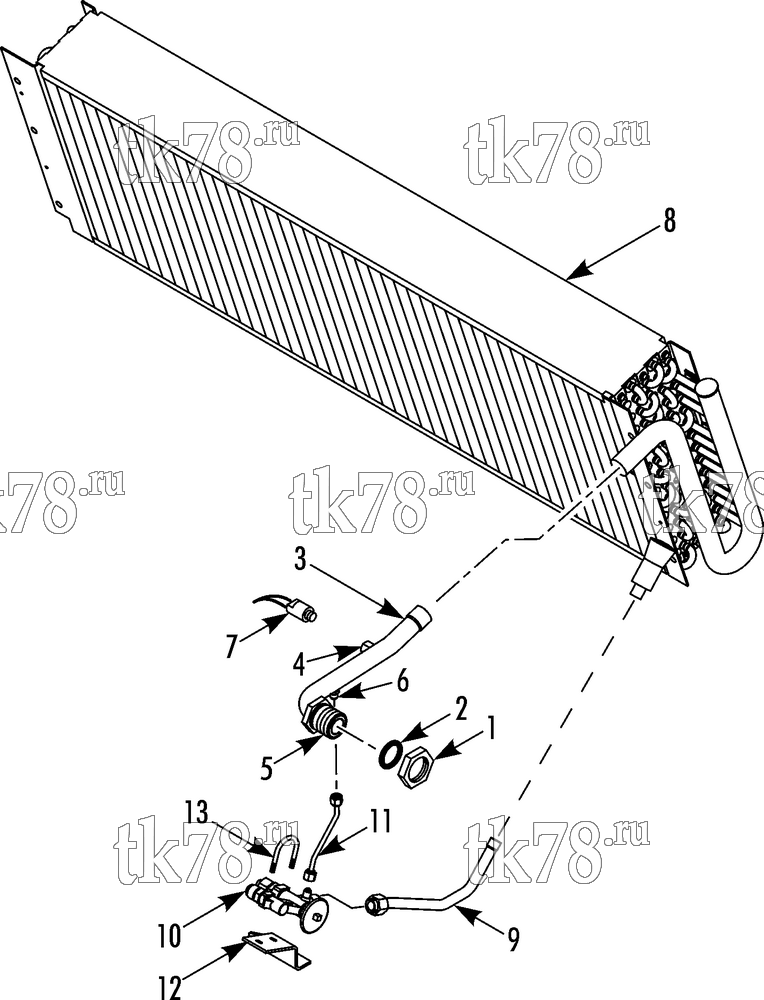

Установкa Thermo King T11-M172 схема EVAPORATOR REFRIGERATION COMPONENTS – 264A6
Обновление от: 9/6/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-5739 | NUT (#20) | 1 | |
| 2 | 33-1777 | O-RING - suction | 1 | |
| 3 | 61-3491 | TUBE - suction | 1 | |
| 4 | 66-3570 | SADDLE - transducer | 1 | |
| 5 | 55-7537 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | |
| 6 | 61-4343 | FITTING - flare | 1 | |
| 99-7809 | INSULATION - suction tube | A/R | ||
| 7 | 41-9044 | TRANSDUCER - suction | 1 | |
| 55-5742 | LOCKWASHER (#20) | 1 | ||
| 8 | 67-2132 | COIL - evaporator (lacquer coating see 174G9) | 1 | |
| 67-1768 | COIL - evaporator (see 174G9) | 1 | ||
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 9 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 55-4737 | NUT | 1 | ||
| 10 | 66-5952 | VALVE - expansion | 1 | |
| 66-4213 | ELEMENT - power | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 11 | 61-1020 | TUBE - equalizer | 1 | |
| 12 | 91-5560 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 |
