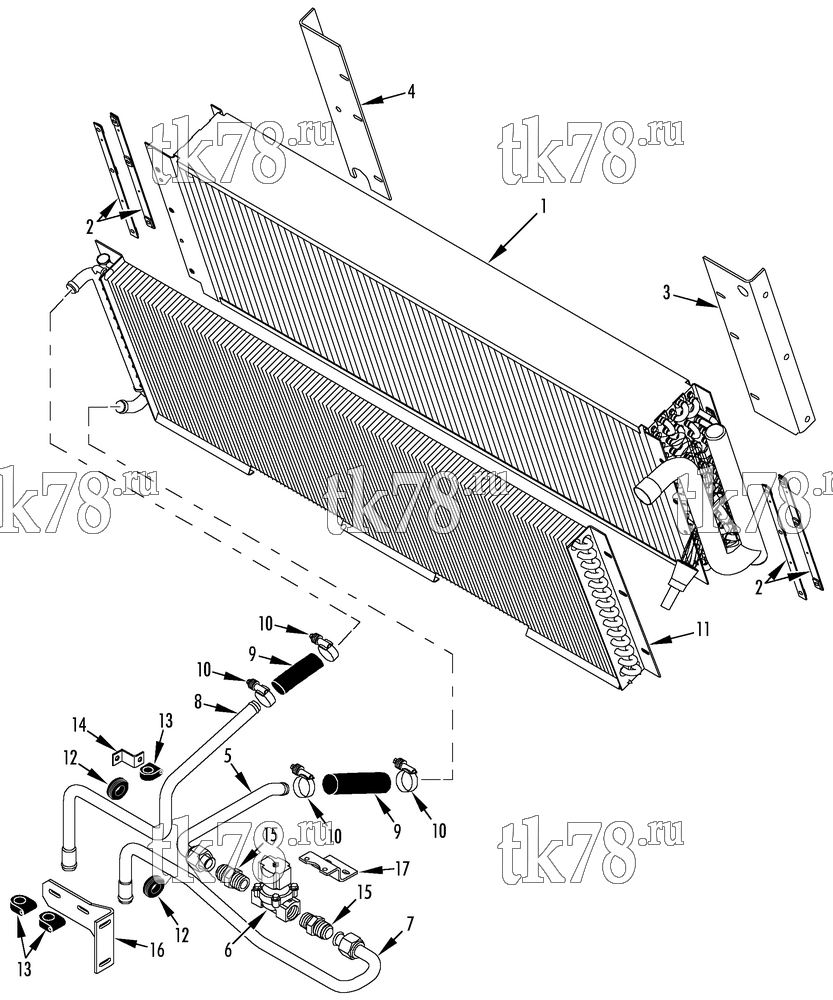

Установкa Thermo King T11-M161 схема HEATER COMPONENTS – 222A7
Обновление от: 8/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1495 | COIL - evaporator | 1 | |
| 67-1496 | COIL - evaporator (vinyl dipped) | 1 | ||
| 2 | 99-7803 | NUTSTRIP - coil | 4 | |
| 55-1714 | RIVET - nutstrip | 8 | ||
| 55-1587 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 3 | 92-1286 | BRACKET - coil (curbside) | 1 | |
| 4 | 92-1285 | BRACKET - coil (roadside) | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-8976 | INSERT - threaded | 6 | ||
| 5 | 61-2459 | TUBE - water (inlet) | 1 | |
| 55-2785 | NUT - tube | 1 | ||
| 6 | 41-5610 | VALVE - solenoid (water, 24V, see 147A1) | 1 | |
| 55-2957 | SCREW - solenoid valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 7 | 66-8978 | TUBE - water (inlet) | 1 | |
| 55-2785 | NUT - tube | 1 | ||
| 8 | 66-8977 | TUBE - water (outlet) | 1 | |
| 9 | 13-982 | HOSE - silicone (3/4 id) | A/R | |
| 10 | 91-2632 | CLAMP - spring | 4 | |
| 11 | 67-1194 | COIL - heater | 1 | |
| 11 | 67-1312 | COIL - heater (vinyl dipped) | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 33-3216 | EXTRUSION - rubber (cut to 6.0 in) | A/R | ||
| 55-1587 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 12 | 33-810 | GROMMET (3/4 id) | 2 | |
| 13 | 91-372 | CLAMP - tube | 3 | |
| 55-3675 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-4953 | NUT | 2 | ||
| 14 | 91-5558 | BRACKET - clamp | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT - threaded | 4 | ||
| 15 | 55-2787 | COUPLING - valve | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 16 | 92-2306 | BRACKET - water lines | 1 | |
| 55-2979 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 2 | ||
| 17 | 91-7086 | BRACKET - water valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 |
