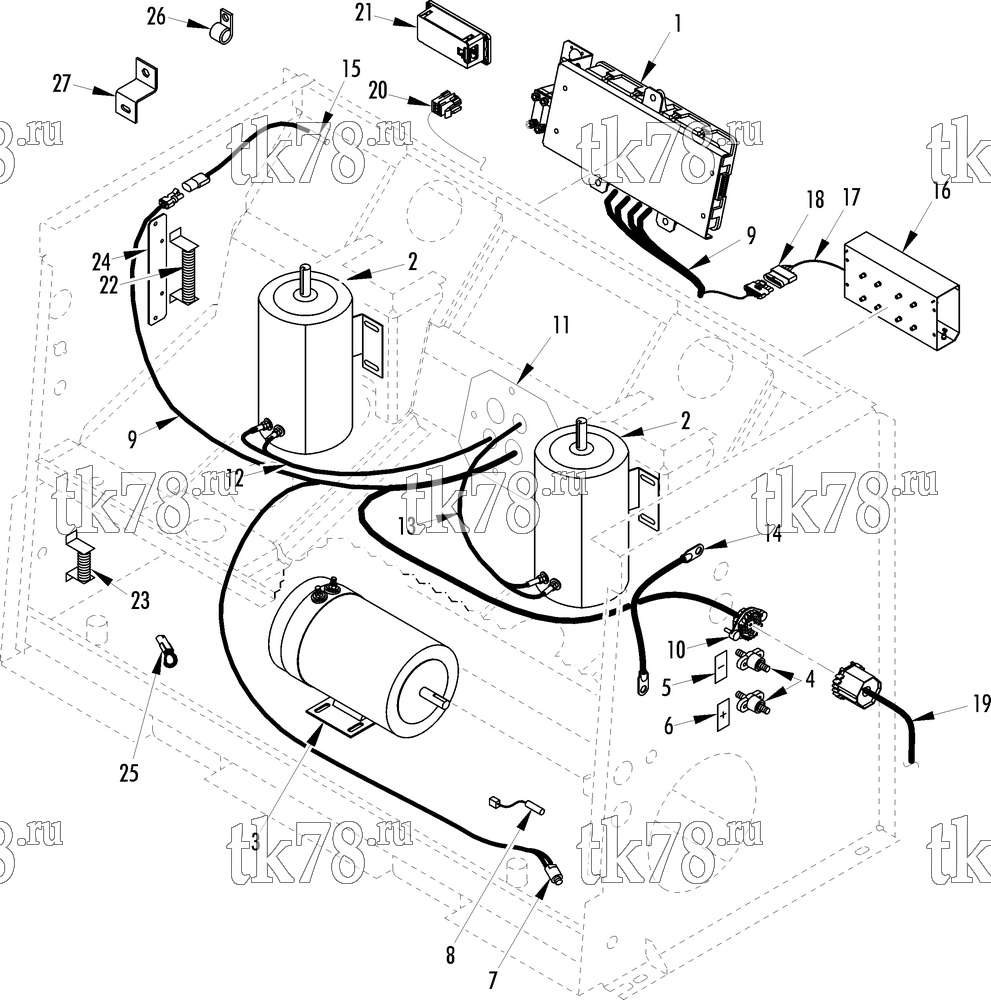

Установкa Thermo King T11-M149 схема ELECTRICAL COMPONENTS – 204H2
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE (see 172A2) | 1 | |
| 2 | 104-476 | MOTOR - condenser (see 162E1) | 1 | |
| 3 | 104-323 | MOTOR - evaporator (see 167E3) | 1 | |
| 4 | 55-9550 | STUD - terminal (red) | 1 | |
| 55-9551 | STUD - terminal (black) | 1 | ||
| 55-9700 | SCREW - stud | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6965 | SWITCH - condenser fan (for connectors see 115D14, R134a) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-6349 | SWITCH - condenser fan ( for connectors see 115D14, R22, & R407c) | 1 | ||
| 44-6427 | SWITCH - only (R22 & R407c) | 1 | ||
| 8 | 41-7706 | SENSOR - temperature | 1 | |
| 9 | 41-4774 | HARNESS - main (IntelligAIRE, see 173F8) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 1 | ||
| 11 | 92-1290 | COVER - harness, blockoff | 1 | |
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 12 | 41-4901 | HARNESS - condenser motor (1) | 1 | |
| 55-9034 | CONNECTOR | 1 | ||
| 41-4189 | CONNECTOR - liquid tite | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4902 | HARNESS - condenser motor (2) | 1 | |
| 55-9135 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 14 | 41-4913 | HARNESS (2) | 1 | |
| 41-4817 | CONNECTOR | 1 | ||
| 55-2635 | LOCKNUT | 1 | ||
| 41-5437 | HARNESS - single wire (5 inch lg) | 1 | ||
| 55-3834 | SCREW - harness | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 41-4761 | HARNESS - battery (black) | 1 | ||
| 41-4914 | HARNESS (34A) | 1 | ||
| 41-4910 | HARNESS (35) | 1 | ||
| 41-6729 | HARNESS - single wire (CH, 30 inch) | 1 | ||
| 41-6730 | HARNESS - single wire (CH, 38 in) | 1 | ||
| 41-6731 | HARNESS - single wire (34A, 90 in) | 1 | ||
| 41-6732 | HARNESS - single wire (CH, 28 in) | 1 | ||
| 41-6733 | HARNESS - single wire (34, 23 in) | 1 | ||
| 41-6734 | HARNESS - single wire (34B, 82 in) | 1 | ||
| 41-6735 | HARNESS - single wire (34B, 82 in) | 1 | ||
| 41-6736 | HARNESS - single wire (35A, 11 in) | 1 | ||
| 41-5359 | CONNECTOR - liquid tite | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 15 | 40-975 | KIT - temperature sensor | 3 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 41-5210 | COLLAR - crimp | 3 | ||
| 92-846 | HEATSHRINK (1/2 in) | 3 | ||
| 16 | 91-8062 | PANEL - solenoid (see 146C14) | 1 | |
| 17 | 41-4900 | HARNESS - brush, motors | 1 | |
| 18 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 19 | 41-4909 | HARNESS - interface (for connector see 115D14) | 1 | |
| 20 | 41-5974 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR | 1 | ||
| 41-4899 | CONNECTOR - wedge | 1 | ||
| 21 | 41-7199 | MODULE - display, standard | 1 | |
| 22 | 44-7131 | RESISTOR - condenser motor (Ohio) | 1 | |
| 23 | 44-6348 | RESISTOR - evaporator motor (Ohio) | 1 | |
| 24 | 92-2321 | PLATE - resistor | 1 | |
| 25 | 44-8197 | HARNESS - jumper | 1 | |
| 26 | 51-151 | CLAMP (0.562 in dia) | 2 | |
| 55-9311 | CLAMP (1.000 in dia) | 6 | ||
| 55-1587 | SCREW - clamp | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 27 | 92-2930 | BRACKET - support | 1 | |
| 55-2239 | CLAMP (0.375 in dia) | 1 | ||
| 55-1587 | SCREW - bracket & clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT - hex | 1 | ||
| 55-8711 | INSERT | 1 |
