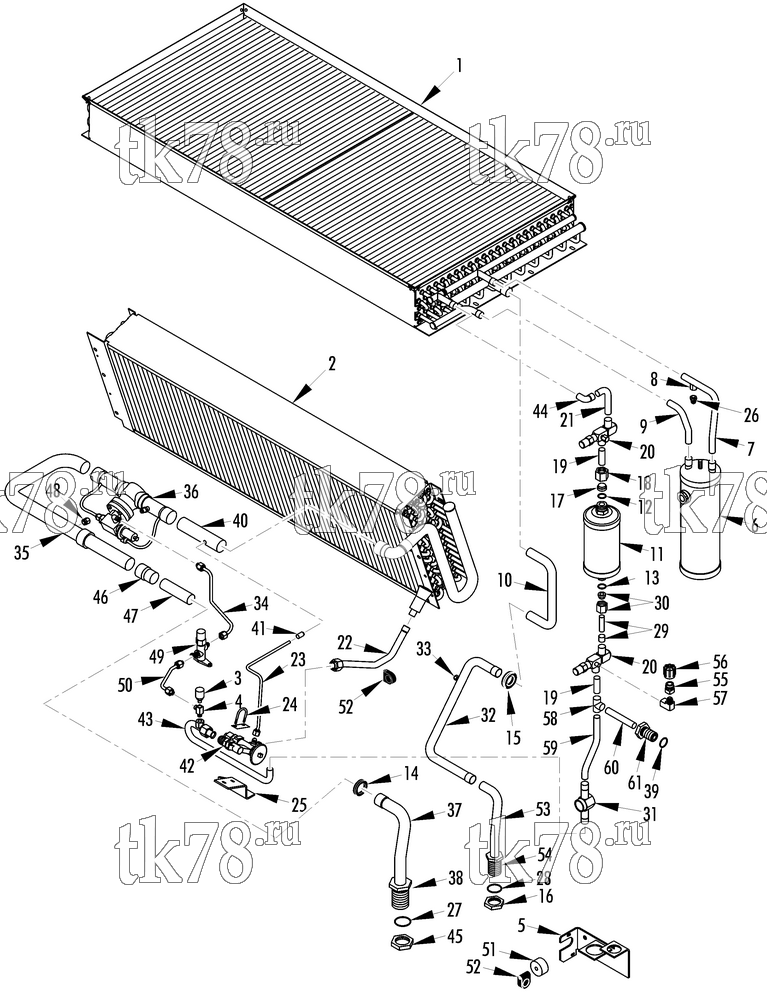

Установкa Thermo King T11-M132 & M134 (EL Dorado Honolulu) схема REFRIGERATION COMPONENTS – 226F5
Обновление от: 10/20/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1211 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-8711 | INSERT - threaded | 8 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 2 | 67-1496 | COIL - evaporator (lacquer coating, see 226F4A7) | 1 | |
| 67-1495 | COIL - evaporator | 1 | ||
| 55-8988 | ELBOW - coil | 1 | ||
| 55-1587 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 3 | 44-6965 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only | 1 | ||
| 4 | 55-2273 | TEE (fan switch) | 1 | |
| 5 | 92-4552 | BRACKET - suction/discharge tube | 1 | |
| 55-2979 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 67-1191 | TANK - receiver (see 213B8) | 1 | |
| 7 | 61-1669 | TUBE - inlet (see 176C5) | 1 | |
| 8 | 99-3060 | FITTING - saddle | 1 | |
| 9 | 61-1668 | TUBE - outlet | 1 | |
| 10 | 66-8980 | TUBE - tee to coil | 1 | |
| 33-507 | GROMMET (7/8 id) | 2 | ||
| 11 | 61-600 | FILTER - drier | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 12 | 33-2115 | O-RING (5/8) | 1 | |
| 13 | 33-566 | O-RING (1/2) | 1 | |
| 14 | 33-2023 | GROMMET | 1 | |
| 15 | 33-3956 | GROMMET (1-1/8 id) | 1 | |
| 16 | 55-7111 | NUT (#16) | 1 | |
| 55-5741 | LOCKWASHER | 1 | ||
| 17 | 55-6356 | SHOULDER | 1 | |
| 18 | 55-6396 | NUT - shoulder | 1 | |
| 19 | 66-7332 | TUBE - valve to dehydrator | 2 | |
| 20 | 306-661 | VALVE - shutoff | 2 | |
| 55-1983 | CAP - shutoff valve | 1 | ||
| 55-2963 | SCREW - valve | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 21 | 61-1671 | TUBE - subcool to valve | 1 | |
| 22 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 23 | 66-7324 | TUBE - equalizer | 1 | |
| 33-1217 | GROMMET (1.375 id) | 1 | ||
| 24 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER - expansion valve | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 25 | 91-5560 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 26 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 27 | 33-1777 | O-RING (1-3/16) | 1 | |
| 28 | 33-2789 | WASHER - sealing (brass) | 1 | |
| 33-1785 | O-RING (15/16) | 1 | ||
| 29 | 55-2182 | BUSHING | 1 | |
| 66-7666 | TUBE - dehydrator to valve | 1 | ||
| 30 | 55-6837 | SHOULDER | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 31 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 32 | 61-3017 | TUBE - discharge | 1 | |
| 33 | 61-4343 | FITTING - flare | 1 | |
| 55-1983 | CAP - fitting | 1 | ||
| 34 | 61-909 | TUBE - epr to valve | 1 | |
| 35 | 61-1675 | TUBE - epr valve to adapter | 1 | |
| 36 | 66-8122 | VALVE - epr (see 129C13) | 1 | |
| 37 | 61-3030 | TUBE - adapter | 1 | |
| 38 | 55-7537 | ADAPTER (#20) | 1 | |
| 39 | 55-6020 | CLAMP - suction tube | 2 | |
| 91-4613 | PLATE - clamp | 1 | ||
| 55-3344 | SCREW - clamp | 2 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 40 | 61-907 | TUBE - suction to valve | 1 | |
| 41 | 66-5752 | FITTING | 1 | |
| 42 | 66-6847 | VALVE - expansion | 1 | |
| 66-4212 | ELEMENT - power | 1 | ||
| 61-438 | SCREEN - inlet | 1 | ||
| 92-2016 | INSULATION - thermo bulb (cut to 7.0 in lg) | A/R | ||
| 43 | 61-2003 | TUBE - valve inlet | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 33-287 | GROMMET (5/8 id) | 1 | ||
| 44 | 55-3441 | ELBOW | 1 | |
| 45 | 55-9231 | NUT (#20) | 1 | |
| 46 | 55-2905 | COUPLING - reducing | 1 | |
| 47 | 61-1676 | TUBE - coupling | 1 | |
| 48 | 66-874 | FITTING - flare | 1 | |
| 49 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-8798 | INSERT | 2 | ||
| 50 | 61-1677 | TUBE - tee to valve | 1 | |
| 51 | 92-2343 | SPACER - tube | 1 | |
| 52 | 91-758 | CLAMP - tube | 2 | |
| 55-3344 | SCREW - clamp | 2 | ||
|
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 53 | 61-3018 | TUBE - discharge | 1 | |
| 54 | 66-6840 | ADAPTER - bulkhead (16) | 1 | |
| 55 | 66-8086 | FITTING - refrigerant | 2 | |
| 56 | 66-7182 | CAP - fitting | 2 | |
| 57 | 55-1053 | ELBOW - fitting | 1 | |
| 33-768 | GASKET - elbow | 1 | ||
| 58 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 59 | 61-2665 | TUBE - valve to sight glass | 1 | |
| 60 | 66-9451 | TUBE - tee to adapter | 1 | |
| 61 | 55-1554 | ADAPTER - tube (#8, sld) | 1 | |
| 55-9432 | ADAPTER - tube - o (#8,fl) | 1 | ||
| 55-302 | NUT - flare | 1 | ||
| 62 | 33-2747 | O-RING (1/2 id) | 1 |
