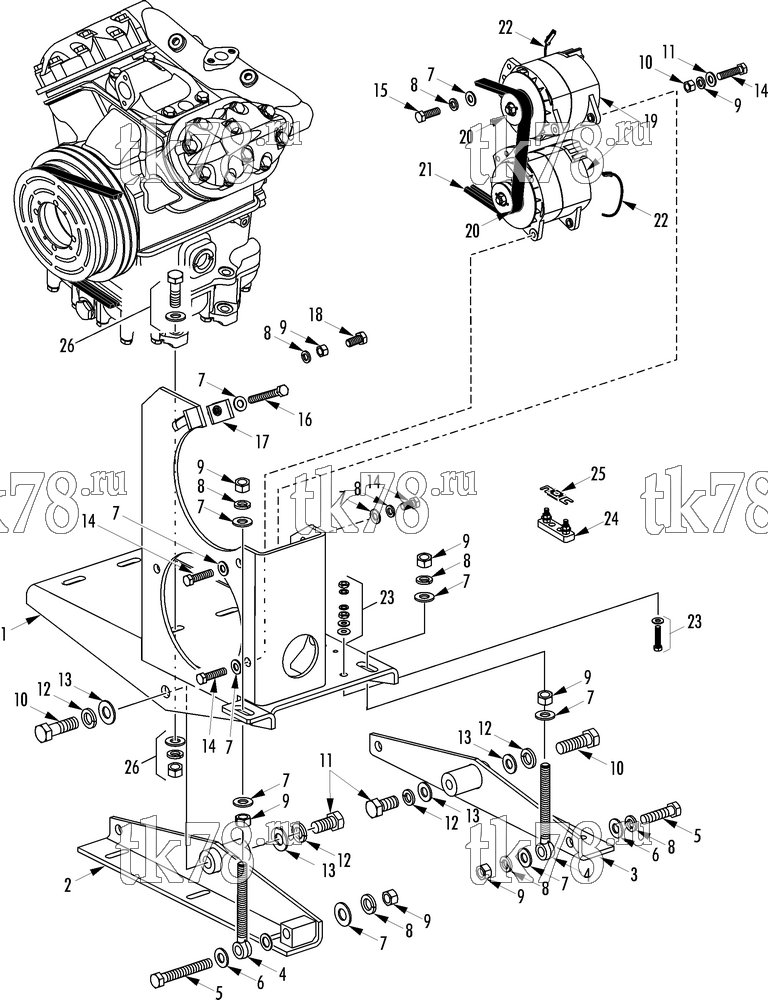

Установкa Thermo King T11-M132 & M134 (EL Dorado Honolulu) схема COMPRESSOR/ALTERNATOR MOUNTING – 226F0
Обновление от: 5/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8033 | BRACKET - compressor/alternator | 1 | |
| 2 | 92-6936 | BRACKET - compressor mount | 1 | |
| 3 | 92-6937 | BRACKET - compressor mount | 1 | |
| 4 | 92-6932 | BOLT - eye | 2 | |
| 5 | 55-3145 | SCREW - base & eyebolt | 4 | |
| 6 | 55-1129 | WASHER - spl | 2 | |
| 7 | 55-2038 | FLATWASHER | 13 | |
| 8 | 55-2159 | LOCKWASHER | 11 | |
| 9 | 55-2166 | NUT | 11 | |
| 10 | 55-5447 | SCREW - bracket to base | 2 | |
| 11 | 51-1750 | SCREW - backup | 2 | |
| 12 | 55-451 | LOCKWASHER | 4 | |
| 13 | 55-4767 | FLATWASHER | 4 | |
| 14 | 55-4794 | SCREW - alternator | 4 | |
| 15 | 55-3486 | SCREW - alternator | 2 | |
| 16 | 55-1009 | SCREW - bracket | 1 | |
| 17 | 92-6938 | BRACKET - alternator adjusting | 1 | |
| 18 | 51-2438 | SCREW - adjusting | 1 | |
| 19 | 41-3627 | ALTERNATOR (24V dc) | 2 | |
| 20 | 77-1240 | PULLEY - alternator | 2 | |
| 55-5321 | NUT - pulley | 2 | ||
| 55-5058 | FLATWASHER | 2 | ||
| 21 | 78-1222 | BELT - compressor to alternator | 1 | |
| 22 | 41-1867 | HARNESS - alternator | 2 | |
| 23 | 55-3812 | SCREW - ground | 1 | |
| 55-3066 | LOCKWASHER (int th) | 2 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-671 | NUT | 2 | ||
| 24 | 55-8708 | HOLDER FUSE (500 amp) | 2 | |
| 55-3564 | SCREW - fuse holder | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 25 | 44-8709 | FUSE (130 amp 32V) | 2 | |
| 55-4787 | SCREW - mtg compressor | 4 | ||
| 55-5620 | FLATWASHER | 4 | ||
| 55-364 | LOCKWASHER | 4 | ||
| 55-399 | WASHER - spl (15/32 id) | 4 | ||
| 55-7980 | NUT | 4 |
