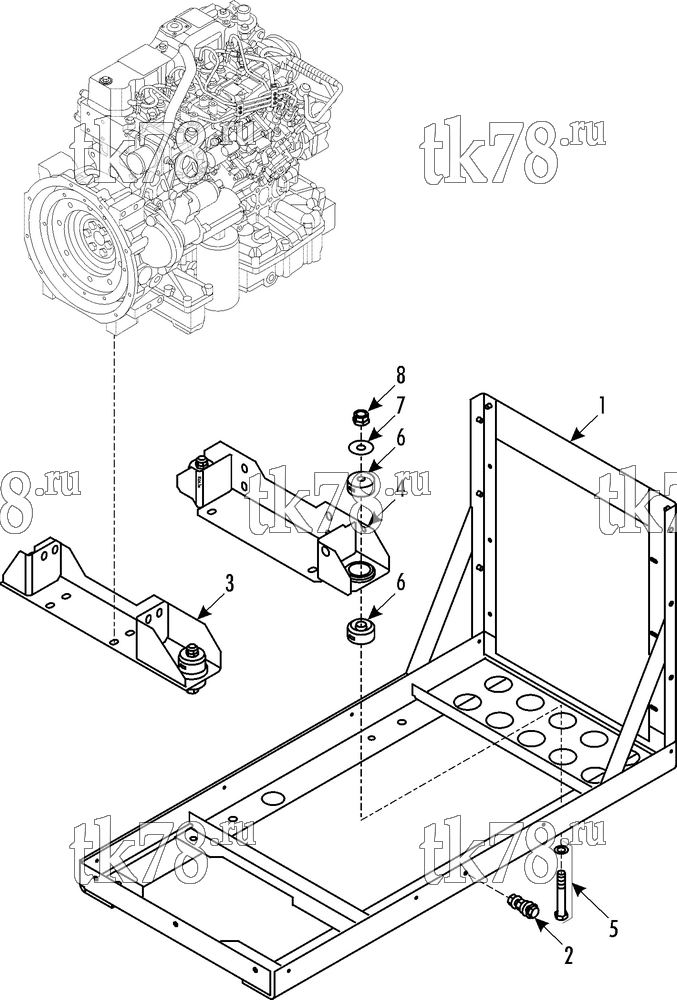

Установкa Thermo King T11-M132 & M134 (EL Dorado Honolulu) схема FRAME & ENGINE MOUNTING – 198C5
Обновление от: 9/22/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7003 | FRAME | 1 | |
| 2 | 55-6279 | SCREW - ground | 1 | |
| 55-3672 | LOCKWASHER | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 55-6573 | NUT | 2 | ||
| 3 | 98-7004 | MOUNT - engine (rear) | 1 | |
| 4 | 98-7005 | MOUNT - engine (front) | 1 | |
| 55-6836 | SCREW - mount to engine | 14 | ||
| 55-5006 | LOCKWASHER | 14 | ||
| 55-5914 | FLATWASHER | 14 | ||
| 5 | 51-1011 | SCREW - mount to frame | 4 | |
| 51-152 | FLATWASHER | 4 | ||
| 6 | 91-4159 | MOUNT - vibration | 8 | |
|
10-91-4159 | Опора двигателя, SMX/SMX-II/SB-III/SL/SLe/SLX/SLXe | 4 550 ₽ |
|
|
PP-91-4159 | Опора двигателя, SMX/SMX-II/SB-III/SL/SLe/SLX/SLXe | 500 ₽ |
|
| 7 | 55-5749 | WASHER | 4 | |
| 8 | 51-1004 | NUT | 4 |
