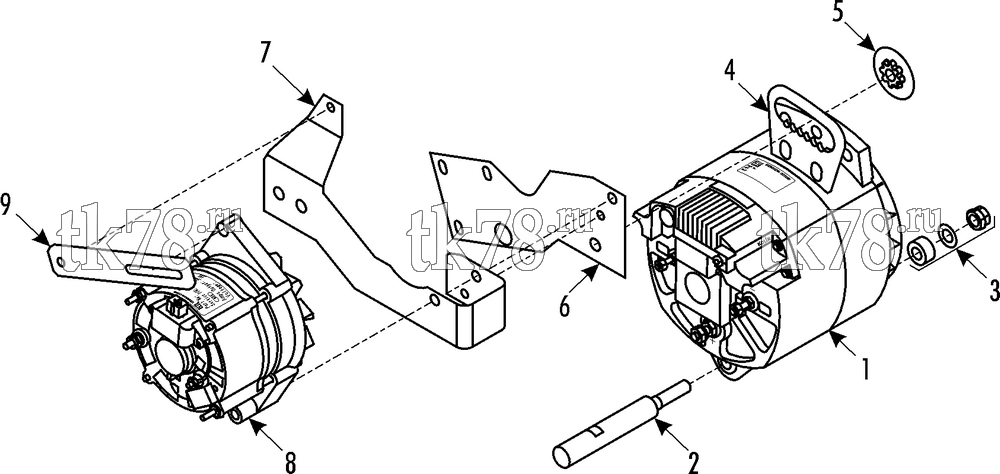

Установкa Thermo King T11-M132 & M134 (EL Dorado Honolulu) схема ALTERNATOR MOUNTING GROUP – 198C0
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3021 | ALTERNATOR (12V excitation, see 67D13) | 1 | |
| US-41-3021 | Генератор 150 А | 141 810 ₽ |
|
|
| 10-41-3021 | Генератор 24В, 150А | 92 860 ₽ |
|
|
| 41-2791 | ALTERNATOR (20/27V excitation, see 212A3) | 1 | ||
| 41-3627 | ALTERNATOR (28V output/12V excitation) | 1 | ||
| 2 | 92-4416 | SHAFT - alternator | 1 | |
| 3 | 92-4417 | SPACER | 1 | |
| 55-5914 | FLATWASHER | 1 | ||
| 55-7003 | NUT | 1 | ||
| 4 | 92-4418 | TENSIONER | 1 | |
| 55-7564 | SCREW - tensioner to alternator | 2 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 5 | 77-2815 | PULLEY - idler | 1 | |
| 55-6836 | SCREW - pulley | 1 | ||
| 55-365 | LOCKWASHER | 1 | ||
| 6 | 92-4419 | HOLDER - alternator | 1 | |
| 55-5022 | SCREW - holder to motor | 4 | ||
| 55-4613 | FLATWASHER | 4 | ||
| 7 | 92-4420 | BRACKET - alternator | 1 | |
| 55-7004 | SCREW - bracket to motor | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 55-5424 | SCREW - bracket to holder | 1 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 55-7006 | NUT | 1 | ||
| 8 | 45-2254 | ALTERNATOR (37 amp, see 108F4) | 1 | |
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 41-2659 | ALTERNATOR (37 amp, used w/ 20/27V alternator, see 212A3) | 1 | ||
| 55-8586 | SCREW - alternator to bracket | 1 | ||
| 55-4625 | FLATWASHER | 2 | ||
| 55-7005 | NUT | 1 | ||
| 9 | 92-4421 | BRACKET - adjusting | 1 | |
| 55-5424 | SCREW - adjusting bracket to alternator bracket | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 55-7006 | NUT | 1 | ||
| 55-4012 | WASHER | 1 |
