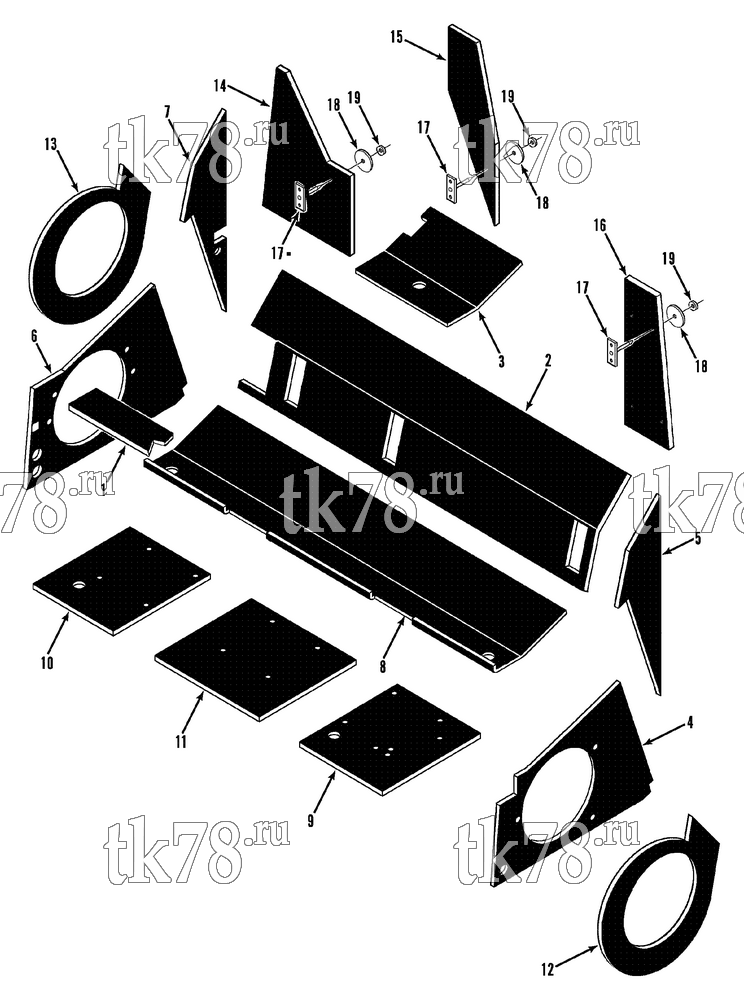

Установкa Thermo King T11-M1 thru M21 & THU11-M1 схема INSULATION (M21) – 132B4
Обновление от: 4/29/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7443 | INSULATION - blockoff panel (rear) | 1 | |
| 2 | 91-7442 | INSULATION - blockoff panel (front) | 1 | |
| 3 | 91-7444 | INSULATION - blockoff panel | 1 | |
| 4 | 91-7434 | INSULATION (curbside) | 1 | |
| 5 | 91-7435 | INSULATION (curbside) | 1 | |
| 6 | 91-7436 | INSULATION (roadside) | 1 | |
| 7 | 91-7437 | INSULATION (roadside) | 1 | |
| 8 | 91-7441 | INSULATION (front, bottom) | 1 | |
| 9 | 91-7440 | INSULATION (bottom, curbside) | 1 | |
| 10 | 91-7438 | INSULATION (bottom, roadside) | 1 | |
| 11 | 91-7439 | INSULATION (bottom, center) | 1 | |
| 12 | 91-7447 | INSULATION - inside housing (curbside) | 1 | |
| 13 | 91-7448 | INSULATION - inside housing (roadside) | 1 | |
| 14 | 91-5550 | INSULATION (lower, roadside, in bus) | 1 | |
| 91-5552 | PLATE - stud weld | 5 | ||
| 55-5035 | RIVET - blind | 10 | ||
| 55-7703 | WASHER - special | 5 | ||
| 55-7704 | NUT - speed (push-on) | 5 | ||
| 15 | 91-5549 | INSULATION (upper, roadside, in bus) | 1 | |
| 91-5552 | PLATE - stud weld | 2 | ||
| 55-5035 | RIVET - blind | 4 | ||
| 55-7703 | WASHER - special | 2 | ||
| 55-7704 | NUT - speed (push-on) | 2 | ||
| 16 | 91-5548 | INSULATION (curbside, in bus) | 1 | |
| 91-5552 | PLATE - stud weld | 5 | ||
| 55-5035 | RIVET - blind | 10 | ||
| 55-7703 | WASHER - special | 5 | ||
| 55-7704 | NUT - speed (push-on) | 5 | ||
| 17 | 91-5552 | PLATE - stud weld | 5 | |
| 55-5035 | RIVET - blind | 10 | ||
| 18 | 55-7703 | WASHER - special | 5 | |
| 19 | 55-7704 | NUT - speed (push-on) | 5 |
