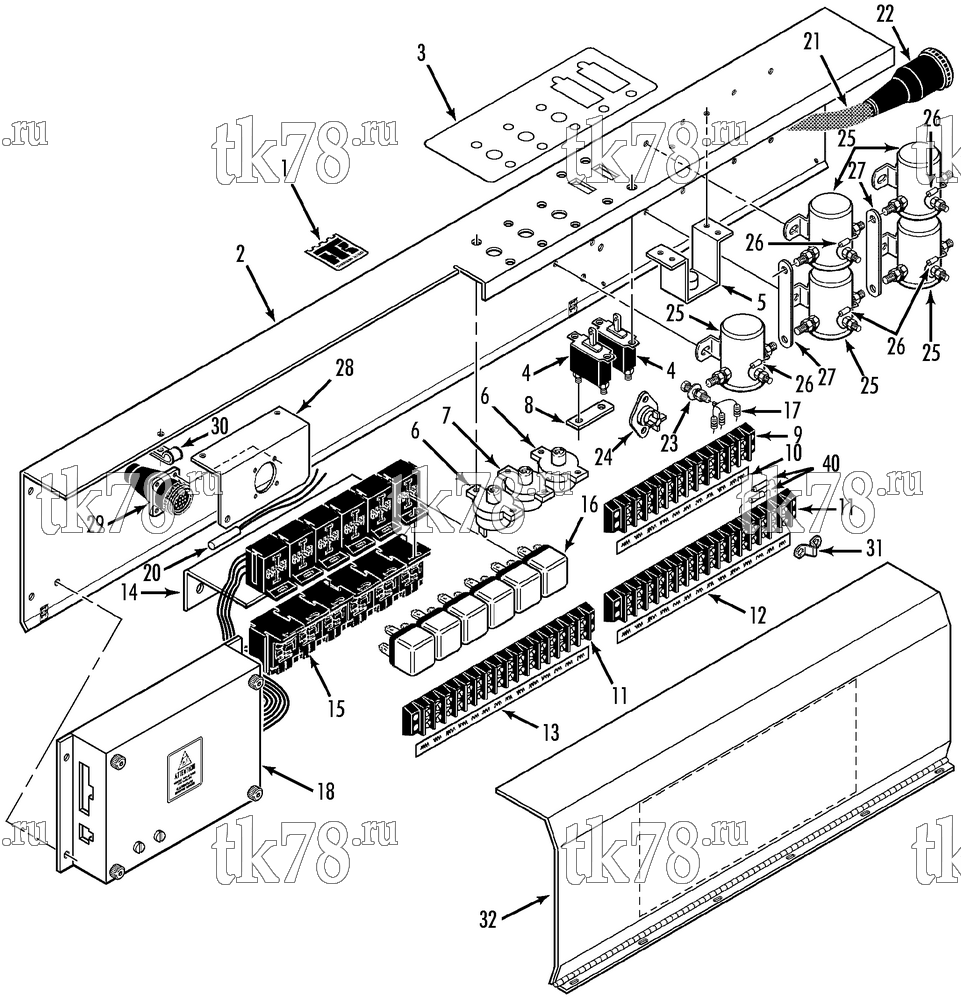

Установкa Thermo King T11-M1 thru M21 & THU11-M1 схема CONTROL PANEL ASSEMBLY (M6) – 126B7
Обновление от: 7/29/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6709 | PANEL - control | 1 | |
| 55-6774 | INSERT (6-32) | 10 | ||
| 55-5206 | INSERT (10-32) | 8 | ||
| 55-6863 | INSERT (1/4-20) | 12 | ||
| 55-7062 | INSERT (10-32) | 6 | ||
| 55-1587 | SCREW - panel | 7 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 2 | 91-5930 | NAMEPLATE - TK logo | 1 | |
| 3 | 91-5923 | NAMEPLATE - control panel | 2 | |
| 4 | 41-653 | BREAKER - circuit (85 amp) | 2 | |
| 5 | 41-1221 | SENSOR - fire | 1 | |
| 55-3513 | SCREW - breaker | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 6 | 41-651 | BREAKER - circuit (10 amp) | 2 | |
| 7 | 41-652 | BREAKER - circuit (15 amp) | 1 | |
| 55-4523 | SCREW - breaker | 6 | ||
| 55-3800 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 8 | 44-8094 | JUMPER - circuit breaker | 1 | |
| 9 | 44-4062 | BOARD - terminal | 1 | |
| 10 | 91-6710 | MARKSTRIP | 1 | |
| 11 | 44-5980 | BOARD - terminal | 2 | |
| 55-4487 | SCREW - board | 6 | ||
| 55-2998 | LOCKWASHER | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 12 | 91-6711 | MARKSTRIP | 1 | |
| 13 | 91-5929 | MARKSTRIP | 1 | |
| 14 | 91-5926 | BRACKET - relay support | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 15 | 41-1224 | SOCKET - relay | 1 | |
| 44-5537 | SOCKET - relay | 12 | ||
| 41-650 | CONNECTOR - inline (18 terminal) | 1 | ||
| 55-5975 | SCREW - socket | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 16 | 44-9112 | RELAY (1pdt) | 10 | |
| 17 | 44-8765 | DIODE | 3 | |
| 18 | NSS | CONTROLLER (see 127A10) | 1 | |
| 19 | 41-7706 | SENSOR - temperature | 1 | |
| 41-1225 | HARNESS - sensor | 1 | ||
| 20 | 55-2272 | CLAMP - sensor | 1 | |
| 55-5975 | SCREW - clamp | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 21 | 41-655 | HARNESS - control | 1 | |
| 22 | 41-656 | CONNECTOR - inline (24 terminal) | 1 | |
| 23 | 55-3031 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 1 | ||
| 24 | 44-4035 | RECTIFIER | 1 | |
| 55-3513 | SCREW | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 25 | 41-3987 | SOLENOID | 5 | |
| 55-3018 | SCREW | 10 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 15 | ||
| 55-2993 | LOCKWASHER | 10 | ||
| 26 | 44-6007 | DIODE | 5 | |
| 27 | 44-7472 | STRAP - jumper | 2 | |
| 28 | 91-6712 | BRACKET - connector (diagnostic) | 1 | |
| 55-5975 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 29 | 41-1226 | HARNESS - diagnostic | 1 | |
| 55-3513 | SCREW | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 30 | 55-3510 | CLAMP | 1 | |
| 55-2995 | SCREW | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 31 | 44-3579 | STRIP - jumper | 1 | |
| 32 | 91-6713 | COVER | 6 | |
| 55-2991 | SCREW | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 33 | 44-5994 | DIODE | 2 |
