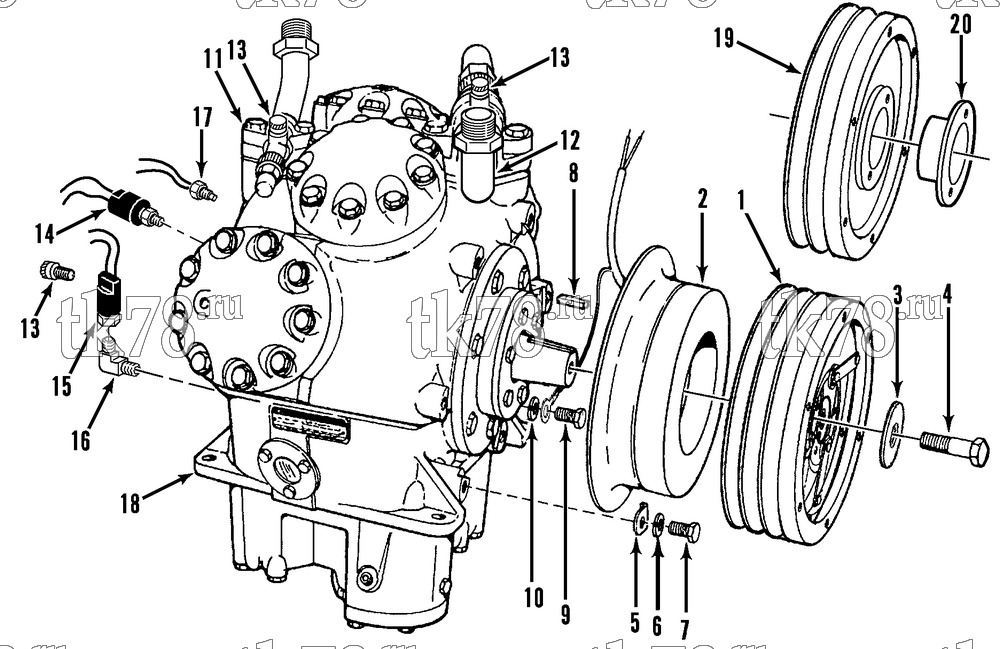

Установкa Thermo King T11-M1 thru M21 & THU11-M1 схема COMPRESSOR GROUP (KIT 714714) – 124D4
Обновление от: 7/31/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 307-172 | CLUTCH - pulley (3-3V groove) | 1 | |
| 55-1842 | SCREW - set | 1 | ||
| 2 | 304-256 | COIL - clutch (24VDC) | 1 | |
| 3 | 305-599 | WASHER - notched | 1 | |
| 4 | 305-988 | SCREW (hh) | 1 | |
| 5 | 309-671 | RETAINER - clutch coil | 6 | |
| 6 | 55-375 | LOCKWASHER | 6 | |
| 7 | 55-329 | SCREW - coil | 6 | |
| 8 | 305-333 | KEY | 1 | |
| 9 | 55-329 | SCREW | 1 | |
| 10 | 305-700 | LOCKWASHER | 1 | |
| 11 | 66-7882 | VALVE & TUBE - discharge (see 127D13) | 1 | |
| 55-3674 | SCREW | 2 | ||
| 33-2805 | GASKET - discharge valve | 1 | ||
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 12 | 66-7884 | VALVE & TUBE - suction (see 127E1) | 1 | |
| 55-4794 | SCREW | 2 | ||
| 303-700 | GASKET - suction service valve | 1 | ||
| 13 | 11-2886 | VALVE (see 119B13) | 3 | |
| 14 | 304-747 | SWITCH - hpco | 1 | |
| 15 | 44-6263 | SWITCH - lpco | 1 | |
| 16 | 55-308 | ELBOW | 1 | |
| 17 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 41-623 | SENSOR - only | 1 | ||
| 18 | 302-140 | COMPRESSOR (4GB, see 95D5, 95D7, 95D9, 105C5) | 1 | |
| 19 | 77-2466 | PULLEY - pto | 1 | |
| 20 | 77-2086 | BUSHING | 1 | |
| 55-5788 | SCREW - soc head | 2 |
