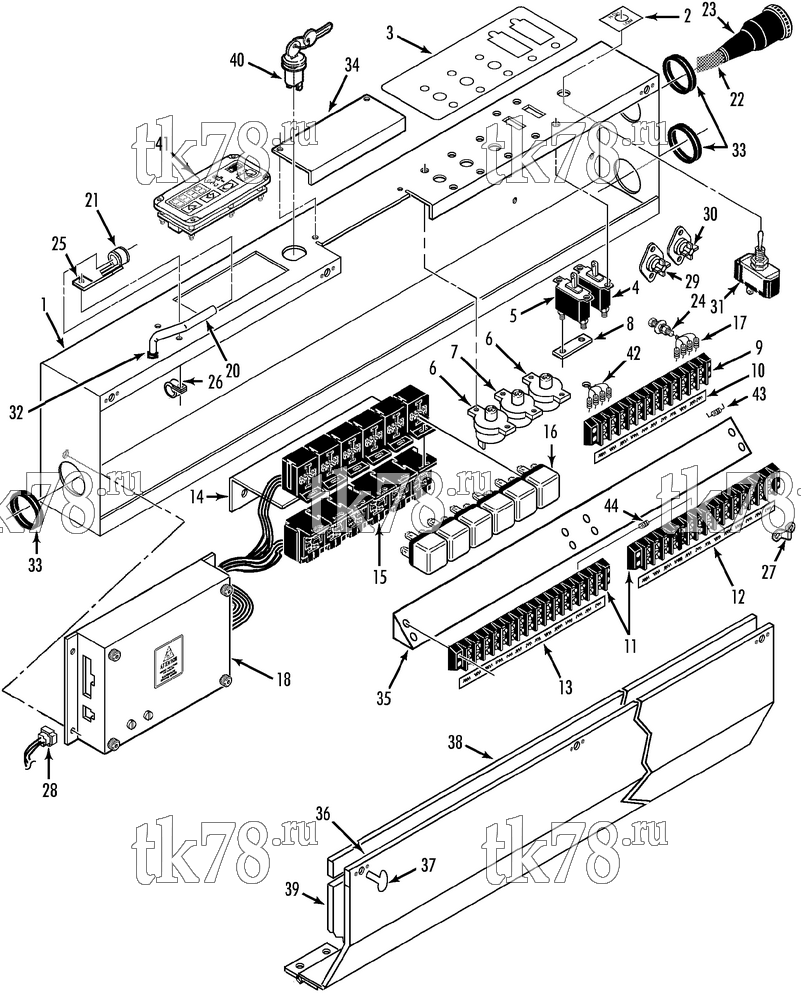

Установкa Thermo King T10-M14 схема CONTROL PANEL ASSEMBLY – 140C13
Обновление от: 7/29/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8070 | PANEL - control | 1 | |
| 55-6774 | INSERT (6-32) | 10 | ||
| 55-5206 | INSERT (10-32) | 13 | ||
| 55-1587 | SCREW - panel | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 2 | 91-8072 | NAMEPLATE - switch | 1 | |
| 3 | 91-5923 | NAMEPLATE - control panel | 1 | |
| 4 | 41-2455 | BREAKER - circuit (85 amp) | 1 | |
| 5 | 44-5494 | BREAKER - circuit (65 amp, M6, M8, M11) | 1 | |
| 41-2455 | BREAKER - circuit (85 amp, M12, M13) | 1 | ||
| 55-3513 | SCREW - breaker | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 6 | 41-651 | BREAKER - circuit (10 amp) | 2 | |
| 7 | 41-652 | BREAKER - circuit (15 amp) | 1 | |
| 55-4523 | SCREW - breaker | 6 | ||
| 55-3800 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 8 | 44-8094 | JUMPER - circuit breaker | 1 | |
| 9 | 44-4062 | BOARD - terminal | 1 | |
| 10 | 91-6710 | MARKSTRIP | 1 | |
| 11 | 44-5980 | BOARD - terminal | 2 | |
| 55-4487 | SCREW - board | 6 | ||
| 55-2998 | LOCKWASHER | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 12 | 91-6711 | MARKSTRIP | 1 | |
| 13 | 91-5929 | MARKSTRIP | 1 | |
| 14 | 91-7450 | BRACKET - relay support | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-7062 | INSERT | 2 | ||
| 15 | 41-1224 | SOCKET - relay | 1 | |
| 41-650 | CONNECTOR - inline (18 terminal) | 1 | ||
| 44-5537 | SOCKET - relay | 12 | ||
| 55-5975 | SCREW - socket | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 16 | 41-896 | RELAY (1pdt) | 12 | |
| 17 | 44-8765 | DIODE | 4 | |
| 18 | NSS | CONTROLLER (see 144A1) | 1 | |
| 19 | 55-7777 | SCREW | 2 | |
| 20 | 41-7706 | SENSOR - temperature | 1 | |
| 41-1225 | HARNESS - sensor (for connectors see 115D14) | 1 | ||
| 21 | 55-5294 | CLAMP - sensor | 1 | |
| 55-2995 | SCREW - clamp | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 22 | 41-655 | HARNESS - control | 1 | |
| 23 | 41-656 | CONNECTOR (24-pin) | 1 | |
| 24 | 55-3031 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 1 | ||
| 25 | 91-6756 | BRACKET - sensor | 1 | |
| 26 | 55-5294 | CLAMP | 2 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 27 | 44-3579 | STRIP - jumper | 1 | |
| 28 | 41-1237 | HARNESS - controller | 1 | |
| 41-654 | CONNECTOR - inline (4 terminal) | 1 | ||
| 29 | 41-2547 | DIODE - assembly | 1 | |
| 44-4109 | RECTIFIER (15 amp) | 1 | ||
| 55-3256 | SCREW - rectifier | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 30 | 41-2548 | DIODE | 1 | |
| 44-4035 | RECTIFIER (10 amp) | 1 | ||
| 31 | 44-5861 | SWITCH | 1 | |
| 32 | 83-258 | GROMMET | 1 | |
| 33 | 33-1879 | GROMMET | 3 | |
| 34 | 91-8073 | PLATE - blockoff | 1 | |
| 55-2955 | SCREW | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 35 | 91-8071 | PANEL - terminal | 1 | |
| 55-6721 | INSERT | 3 | ||
| 55-2995 | SCREW | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 36 | 91-8074 | COVER - control panel | 1 | |
| 37 | 55-4441 | FASTENER - wing screw | 3 | |
| 55-870 | WASHER | 3 | ||
| 38 | 99-7246 | STRIP - sealing (50 ft) | A/R | |
| 39 | 99-8986 | STRIP - sealing (25 ft) | A/R | |
| 40 | 41-1239 | SWITCH (w/ 2 keys) | 1 | |
| 41-1240 | HARNESS - display panel | 1 | ||
| 41 | 41-2009 | PANEL - driver display (see 140G4) | 1 | |
| 55-8369 | SCREW | 4 | ||
| 42 | 41-2261 | RESISTOR | 4 | |
| 43 | 41-2263 | DIODE | 2 | |
| 44 | 41-2262 | DIODE | 1 |
