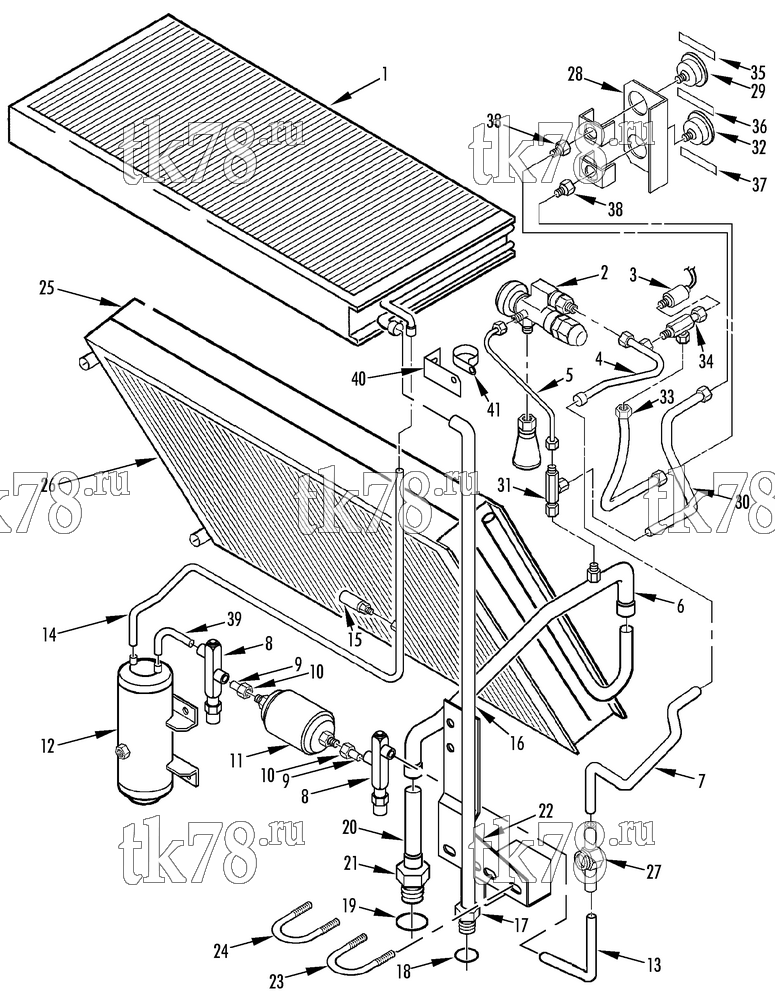

Установкa Thermo King T10-M11 схема REFRIGERATION COMPONENTS – 140C8
Обновление от: 4/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1085 | COIL - condenser | 1 | |
| 91-2711 | NUTSTRIP - coil | 2 | ||
| 55-2977 | SCREW - coil (1.0 in long) | 6 | ||
| 55-1587 | SCREW - coil (3/4 in long) | 3 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 9 | ||
| 55-4953 | NUT | 9 | ||
| 2 | 66-5952 | VALVE - expansion (R22) | 1 | |
| 66-4213 | ELEMENT - power | 1 | ||
| 61-438 | SCREEN - inlet | 1 | ||
| 66-6847 | VALVE - expansion (R134a) | 1 | ||
| 66-4212 | ELEMENT - expansion valve | 1 | ||
| 66-7115 | ADAPTER | 1 | ||
| 66-6610 | FITTING | 1 | ||
| 55-3547 | U-BOLT - valve | 1 | ||
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 44-6349 | SWITCH - 2 speed fan (R22) | 1 | |
| 44-6427 | SWITCH - only (R22) | 1 | ||
| 44-6965 | SWITCH (2 speed fan, R134a) | 1 | ||
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 4 | 66-6521 | TUBE - tube to expansion valve | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 5 | 66-8751 | TUBE - equalizer | 1 | |
| 6 | 66-5160 | TUBE - suction from coil | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 7 | 66-8750 | TUBE - liquid indicator to tube (until 6/94) | 1 | |
| 66-7789 | TUBE - liquid indicator to tube (beginning 6/94) | 1 | ||
| 8 | 66-7899 | VALVE - shutoff | 2 | |
| 9 | 66-6518 | TUBE - dehydrator to valve | 2 | |
| 10 | 55-4737 | NUT | 2 | |
| 11 | 66-4858 | DEHYDRATOR (see 121F5) | 1 | |
| 12 | 306-343 | RECEIVER - liquid | 1 | |
| 306-854 | SIGHT GLASS (1.875 in dia) | 1 | ||
| 303-354 | O-RING (for 306-854) | 1 | ||
| 66-6612 | SIGHT GLASS (1.25 in dia) | 1 | ||
| NSS | GASKET (teflon, for 66-6612) | 1 | ||
| 55-2977 | SCREW - receiver | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 13 | 66-6517 | TUBE - receiver to valve | 2 | |
| 14 | 66-6519 | TUBE - receiver inlet | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-6523 | TUBE - discharge | 1 | |
| 17 | 55-5355 | ADAPTER - discharge tube | 1 | |
| 18 | 33-594 | O-RING - discharge | 1 | |
| 19 | 33-544 | O-RING - suction | 1 | |
| 20 | 66-6522 | TUBE - suction | 1 | |
| 21 | 55-4185 | ADAPTER - suction tube | 1 | |
| 22 | 91-8649 | BRACKET - adapter | 1 | |
| 55-2969 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 23 | 55-4397 | U-BOLT - discharge tube | 1 | |
| 24 | 55-5122 | U-BOLT - suction tube | 1 | |
| 55-4953 | NUT | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 25 | 67-1514 | COIL - evaporator | 1 | |
| 26 | 67-1513 | COIL - heater (M6 , M7, M8, M11, see 140C12; M12, M13, see 144A12) | 1 | |
| 27 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 28 | 91-8044 | BRACKET - gauge | 1 | |
| 55-2977 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 29 | 66-4839 | GAUGE - pressure (suction) | 1 | |
|
10-66-4839 | Манометр фреона, SB-II/III | 8 570 ₽ |
|
| 91-870 | LENS - gauge | 1 | ||
| 30 | 66-8753 | TUBE - tee to suction gauge | 1 | |
| 31 | 66-8754 | TEE | 1 | |
| 32 | 66-8085 | GAUGE - pressure (discharge) | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 33 | 66-8752 | TUBE - tee to discharge gauge | 1 | |
| 34 | 55-2273 | TEE | 1 | |
| 35 | 91-8045 | NAMEPLATE - suction | 1 | |
| 36 | 91-8046 | NAMEPLATE - refrigerant pressure | 1 | |
| 37 | 91-8047 | NAMEPLATE - discharge | 1 | |
| 38 | 55-1253 | COUPLING | 2 | |
| 39 | 66-9178 | TUBE - receiver to valve | 1 | |
| 40 | 91-8730 | BRACKET - clamp | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 41 | 91-5114 | CLAMP - tube | 1 | |
| 55-3675 | SCREW - clamp | 1 |
