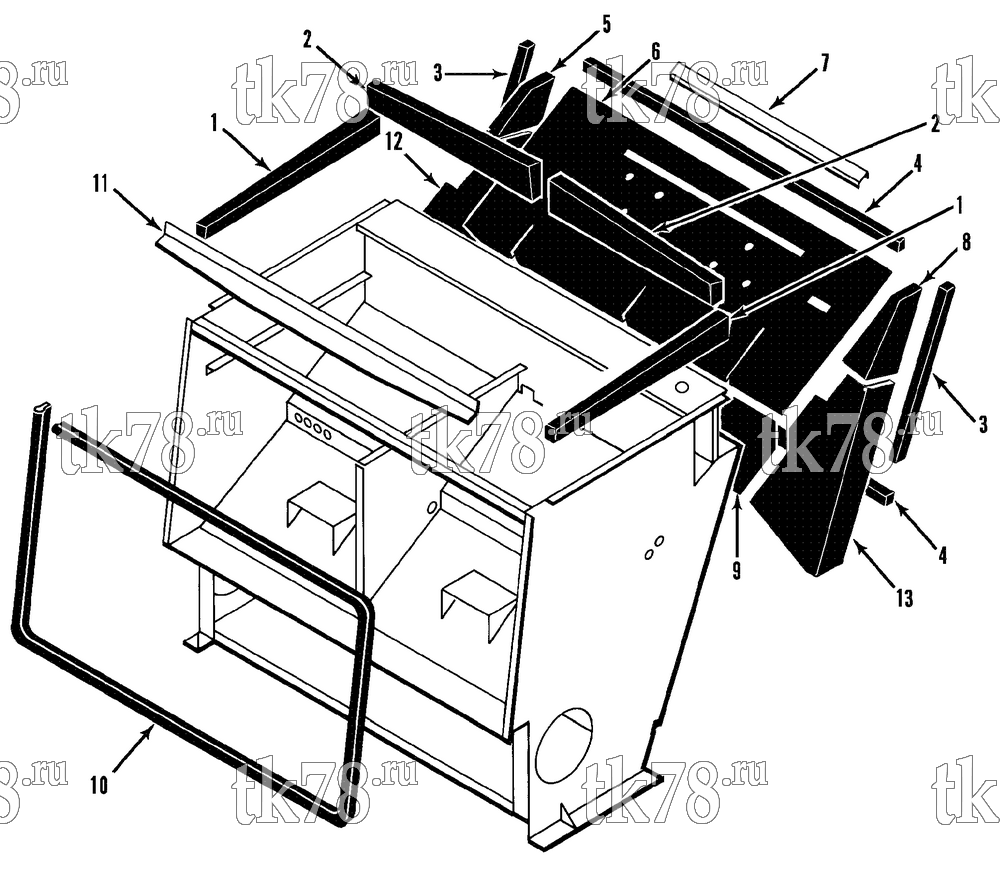

Установкa Thermo King T10-M11 схема INSULATION – 140C11
Обновление от: 4/19/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-2003 | INSULATION (top, side) | 2 | |
| 2 | 33-2002 | INSULATION (top, center) | 2 | |
| 3 | 33-2004 | INSULATION - gasket (side) | 2 | |
| 4 | 33-2005 | INSULATION - gasket (top & bottom) | 2 | |
| 5 | 91-8054 | INSULATION (leftside, upper) | 1 | |
| 6 | 33-2363 | INSULATION - upper | 1 | |
| 7 | 91-4054 | PLATE - fresh air blockoff | 1 | |
| 55-5640 | SCREW - plate | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 8 | 91-8053 | INSULATION (rightside, upper) | 1 | |
| 9 | 33-1947 | INSULATION - air return (lower) | 1 | |
| 10 | 91-1063 | EXTRUSION - rubber (15 ft) | 1 | |
| 11 | 91-1062 | FLANGE - gasket (top) | 1 | |
| 55-145 | SCREW - flange | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 12 | 91-8052 | INSULATION (leftside, lower) | 1 | |
| 13 | 91-8051 | INSULATION (rightside, lower) | 1 |
