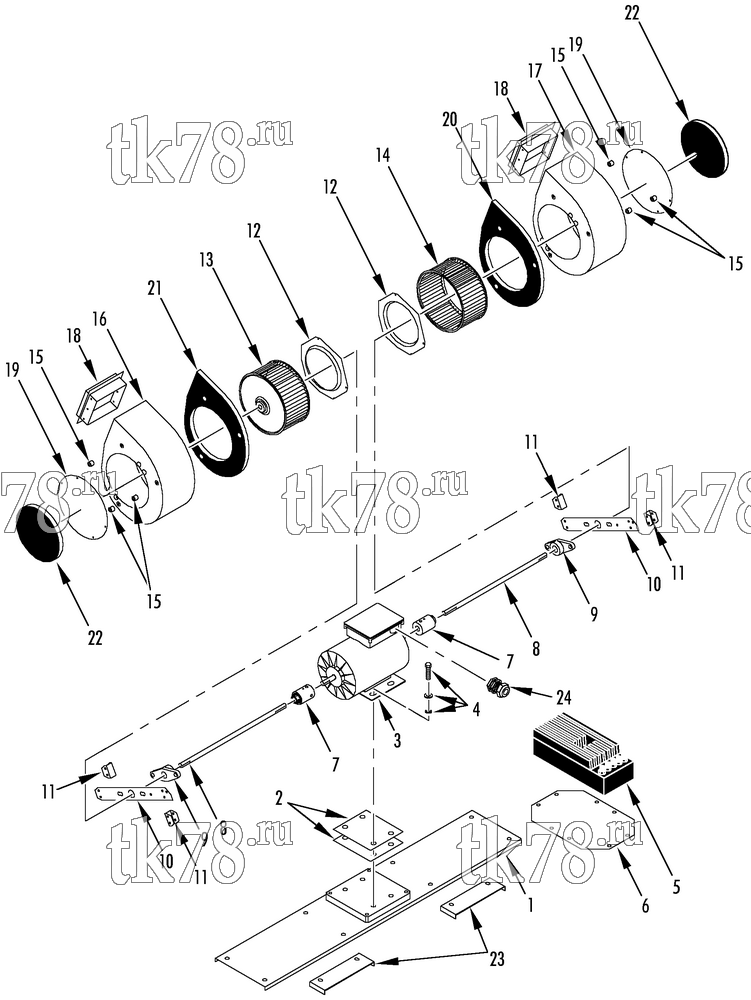

Установкa Thermo King T1-M84 схема EVAPORATOR BLOWERS – 171E0
Обновление от: 5/1/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4556 | CHANNEL - motor mount | 1 | |
| 55-2969 | SCREW - channel | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-6526 | INSERT | 4 | ||
| 2 | 99-7780 | SPACER - motor mount | 2 | |
| 3 | 104-741 | MOTOR - evaporator blower (see 153G9, for connectors see 115D14) | 1 | |
| 4 | 55-2969 | SCREW - motor | 4 | |
| 55-2959 | LOCKWASHER | 4 | ||
| 55-4727 | FLATWASHER | 4 | ||
| 55-6713 | INSERT - threaded | 4 | ||
| 5 | 41-3590 | DRIVE - motor (see 177B4) | 1 | |
| 841-3590 | DRIVE - motor (remanufactured) | 1 | ||
| 40-885 | KIT - power stud cleanup (see 187F2) | 1 | ||
| 55-2977 | SCREW - controller | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 6 | 91-8048 | PLATE - controller | 1 | |
| 55-2991 | SCREW - plate | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-6721 | INSERT - threaded | 4 | ||
| 7 | 77-2589 | COUPLING - flexible | 2 | |
| 8 | 77-2669 | SHAFT - blower | 2 | |
| 9 | 77-2664 | BEARING - flange | 2 | |
| 55-2961 | SCREW - bearing | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-4955 | NUT | 4 | ||
| 10 | 91-4664 | PLATE - bearing | 2 | |
| 55-1587 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-7422 | INSERT - threaded | 8 | ||
| 11 | 91-4243 | CHANNEL - standoff (bearing plate) | 4 | |
| 55-1587 | SCREW - channel | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 12 | 77-1843 | RING - inlet | 2 | |
| 55-5639 | SCREW - ring | 6 | ||
| 13 | 77-2517 | WHEEL - blower (ccw, roadside) | 1 | |
| 14 | 77-2516 | WHEEL - blower (cw, curbside) | 1 | |
| 15 | 99-6872 | SPACER - blower housing | 6 | |
| 16 | 98-7362 | HOUSING - blower (roadside, before 2/06) | 1 | |
| 98-7362 | HOUSING - blower (roadside, incl adapters & insulation, 2/06 & after) | 1 | ||
| 17 | 98-7361 | HOUSING - blower (curbside, before 2/06) | 1 | |
| 98-7361 | HOUSING - blower (curbside, incl adapters & insulation, 2/06 & after) | 1 | ||
| 55-2979 | SCREW - housing | 6 | ||
| 55-4953 | NUT | 6 | ||
| 18 | 98-2541 | ADAPTER - air outlet | 2 | |
| 55-3588 | RIVET - adapter | 12 | ||
| 33-3041 | GASKET - adapter | 2 | ||
| 19 | 99-9316 | PLATE - blower housing cover (before 10/00) | 2 | |
| 99-7868 | PLATE - blower housing cover (after 10/00) | 2 | ||
| 33-3627 | GASKET - plate (before 10/00) | 2 | ||
| 55-5639 | SCREW - plate (before 10/00) | 10 | ||
| 55-1683 | NUT - speed (before 10/00) | 10 | ||
| 55-4744 | RIVET - plate (after 9/00) | 10 | ||
| 20 | 91-363 | INSULATOR - housing (inside) | 1 | |
| 21 | 91-358 | INSULATOR - housing (inside) | 1 | |
| 22 | 91-365 | INSULATOR - cover (before 1/01) | 2 | |
| 23 | 92-2117 | PLATE - channel | 2 | |
| 24 | 55-6141 | CONNECTOR - liquid tite | 1 | |
| 55-2635 | NUT - connector | 1 |
