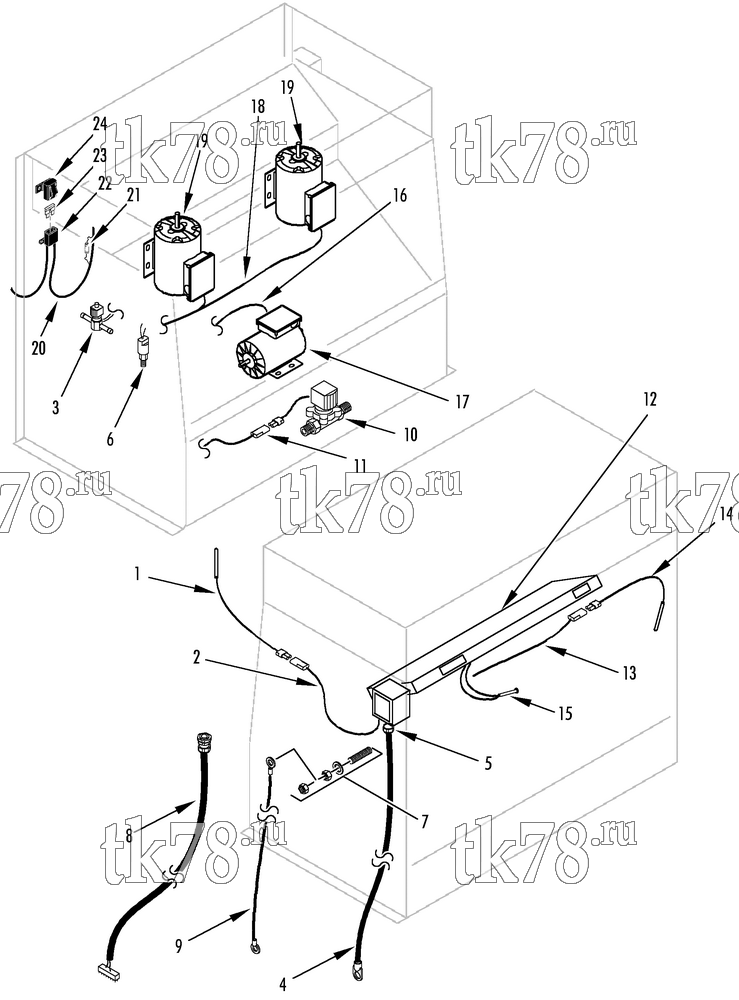

Установкa Thermo King T1-M68 схема ELECTRICAL GROUP (T1-M57, M68) – 157C5
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-975 | KIT - temperature sensor (ambient air) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 2 | 41-2279 | HARNESS - sensor | 1 | |
| 3 | 66-8900 | VALVE - solenoid | 1 | |
| 66-8901 | COIL - valve | 1 | ||
| 4 | 41-1823 | HARNESS - positive | 1 | |
| 41-3549 | HARNESS (35) | 1 | ||
| 41-3550 | HARNESS - connector | 1 | ||
| 5 | 55-5900 | CONNECTOR - harness (liquid tite) | 3 | |
| 55-6141 | CONNECTOR - harness (liquid tite) | 1 | ||
| 55-5111 | CONNECTOR - harness (liquid tite) | 1 | ||
| 55-5018 | NUT - connector | 2 | ||
| 6 | 41-2268 | SWITCH - hpco | 1 | |
| 7 | 55-3167 | STUD - terminal (negative) | 1 | |
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER (brass) | 4 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 8 | 41-2125 | HARNESS - control | 1 | |
| 9 | 44-9576 | HARNESS - negative | 1 | |
| 10 | 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | |
| 11 | 41-793 | HARNESS - valve (for connectors see 115D14) | 1 | |
| 12 | NSS | CONTROL - panel (see 142G10) | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 13 | 41-3531 | HARNESS - coil temperature sensor | 1 | |
| 14 | 40-975 | KIT - temperature sensor (coil) | 1 | |
|
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 40-975 | SENSOR - ungraded (18 in, NSS) | 1 | ||
|
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 15 | 41-7706 | SENSOR - temperature (return air, see 142G10) | 1 | |
| 16 | 41-3551 | HARNESS - drive, evaporator (T1-M63 & T1-M68) | 1 | |
| 41-3534 | HARNESS - drive, evaporator (T1-M57) | 1 | ||
| 17 | 104-741 | MOTOR - evaporator blower (see 153G9) | 1 | |
| 18 | 41-3533 | HARNESS - drive, condenser | 1 | |
| 19 | 104-740 | MOTOR - condenser fan | 2 | |
| 20 | 41-2280 | HARNESS - hot gas control | 1 | |
| 21 | 44-5763 | DIODE | 1 | |
| 22 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 23 | 44-9758 | FUSE (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 24 | 41-1769 | HOLDER - fuse | 2 | |
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
