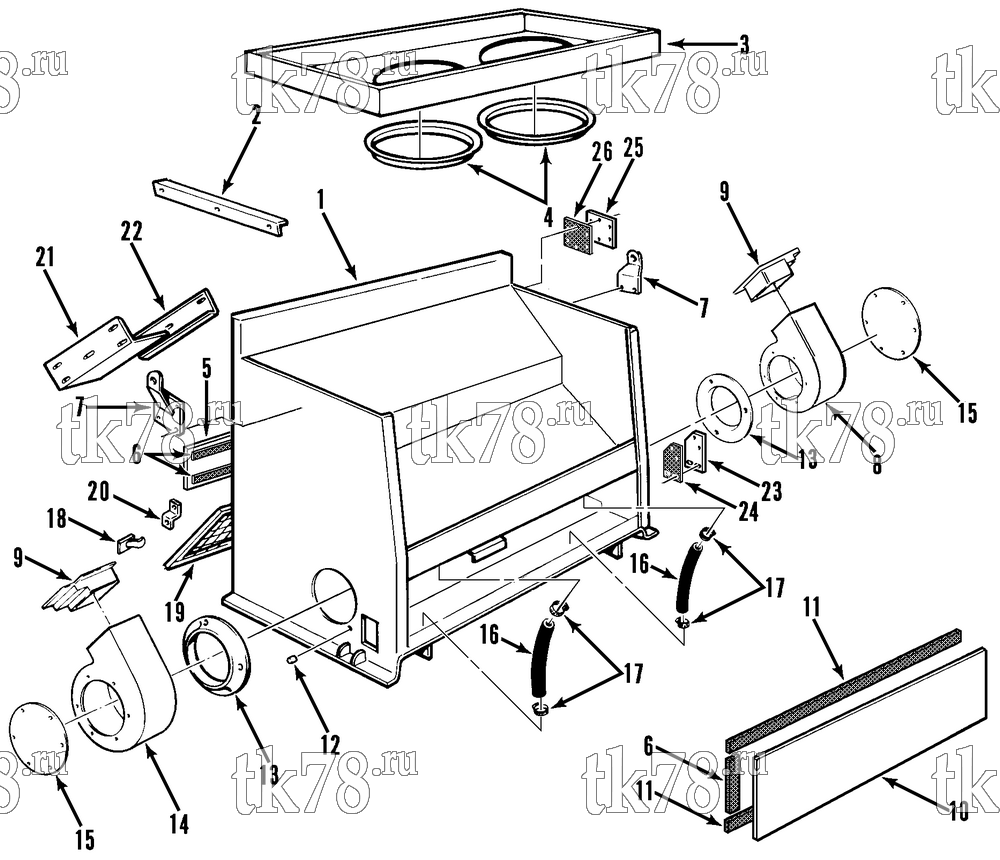

Установкa Thermo King T1-M41 схема STRUCTURAL COMPONENTS – 130F4
Обновление от: 7/16/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4198 | FRAME (M41) | 1 | |
| 98-4549 | FRAME - assembly (M43) | 1 | ||
| 98-5046 | FRAME - assembly (M44, M46) | 1 | ||
| 98-5047 | FRAME - assembly (M45) | 1 | ||
| 55-4415 | NUT - captive | 6 | ||
| 55-3059 | NUT - captive | 35 | ||
| 2 | 99-6860 | ANGLE - coil support | 2 | |
| 55-2683 | SCREW - angle | 6 | ||
| 55-4955 | NUT | 6 | ||
| 3 | 98-3599 | PLENUM | 1 | |
| 55-1587 | SCREW - plenum | 11 | ||
| 55-4953 | NUT | 11 | ||
| 4 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 55-2977 | SCREW - orifice | 12 | ||
| 55-3045 | WASHER - dome | 12 | ||
| 55-3059 | NUT | 12 | ||
| 5 | 98-2380 | PANEL - front | 1 | |
| 55-1587 | SCREW - panel | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 6 | 99-5966 | STRIP - gasket (50 ft) | A/R | |
| 7 | 99-7773 | BRACKET - lifting | 2 | |
| 8 | 98-3378 | HOUSING - blower (curbside) | 1 | |
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 9 | 98-2541 | ADAPTER - air outlet | 2 | |
| 55-3588 | RIVET | 12 | ||
| 10 | 98-2674 | PANEL - rear access | 1 | |
| 55-1587 | SCREW - panel | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 11 | 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | |
| 12 | 99-6872 | SPACER - blower housing | 8 | |
| 13 | 77-1843 | RING - inlet | 2 | |
| 55-5639 | SCREW - ring | 6 | ||
| 14 | 98-3379 | HOUSING - blower (roadside) | 1 | |
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | NUT | 3 | ||
| 15 | 99-9316 | PLATE - blower housing cover | 2 | |
| 55-5639 | SCREW - cover | 10 | ||
| 55-1683 | NUT | 10 | ||
| 16 | 66-6928 | HOSE - drain (25 ft, cut to 11.3 in) | A/R | |
| 17 | 55-2684 | CLAMP - hose | 4 | |
| 18 | 55-4422 | FASTENER - snap (filter) | 2 | |
| 55-2995 | SCREW - fastener | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 19 | 91-6293 | FILTER - air (M41, M43, M44, M46) | 1 | |
| 11-5458 | FILTER - air (M45) | 1 | ||
| 99-1908 | STRIP - gasket (25 ft) | A/R | ||
| 20 | 99-6877 | BRACKET - expansion valve | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 55-5211 | U-BOLT - expansion valve | 1 | ||
| 55-4560 | NUT | 2 | ||
| 21 | 91-4663 | BRACKET - coil (left) | 1 | |
| 22 | 98-2418 | BRACKET - coil (right) | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-4954 | NUT | 6 | ||
| 23 | 91-4826 | PLATE - cover | 1 | |
| 55-1587 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 24 | 33-2432 | GASKET - plate | 1 | |
| 25 | 91-4827 | COVER - junction box | 1 | |
| 26 | 33-2433 | GASKET - cover | 1 | |
| 55-3555 | SCREW - cover | 4 |
