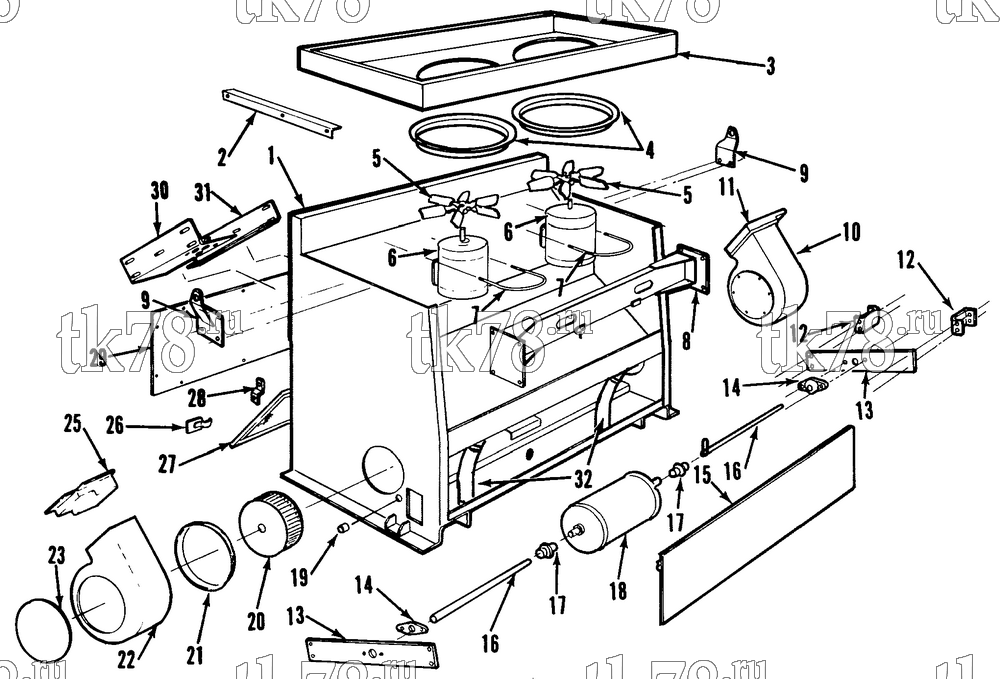

Установкa Thermo King T1-M4 схема STRUCTURAL COMPONENTS - MOTORS & FANS – 65G5
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2755 | FRAME | 1 | |
| 2 | 99-6860 | ANGLE - coil support | 2 | |
| 55-3048 | SCREW - angle | 6 | ||
| 55-4955 | LOCKNUT | 6 | ||
| 3 | 98-2377 | PLENUM | 1 | |
| 99-6141 | NAMEPLATE - Caution Fan | 4 | ||
| 55-1587 | SCREW - plenum | 11 | ||
| 55-4953 | LOCKNUT | 11 | ||
| 4 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 55-1587 | SCREW - orifice | 12 | ||
| 55-3045 | WASHER - dome | 12 | ||
| 5 | 78-533 | FAN - condenser (assembly) | 2 | |
| 6 | 104-655 | MOTOR - condenser fan (G.E.) | 2 | |
| 44-4435 | BRUSH (set of 4) | 1 | ||
| 77-1498 | BEARING (opposite shaft end) | 1 | ||
| 77-1106 | BEARING (shaft end) | 1 | ||
| 33-1087 | SEAL - shaft | 1 | ||
| 44-6004 | RESISTOR (15 ohm, 25W) | 2 | ||
| 99-2675 | NAMEPLATE - arrow | 2 | ||
| 99-6861 | NUTSTRIP - motor | 4 | ||
| 55-3035 | RIVET - strip | 8 | ||
| 55-5016 | SCREW - motor | 8 | ||
| 7 | 99-6862 | U-BOLT - motor | 2 | |
| 55-4953 | LOCKNUT | 4 | ||
| 8 | 98-2412 | BRACKET - motor | 1 | |
| 55-2683 | SCREW - bracket | 8 | ||
| 55-4931 | WASHER | 4 | ||
| 55-4955 | LOCKNUT | 8 | ||
| 9 | 99-7773 | BRACKET - lifting | 2 | |
| 10 | 98-2672 | HOUSING - blower (right) | 1 | |
| 99-7331 | INSULATOR - housing (inside) | 1 | ||
| 99-6865 | INSULATOR - housing (outside) | 1 | ||
| 99-7332 | INSULATOR - housing (peripheral) | 1 | ||
| 11 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 | ||
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 12 | 99-7333 | CHANNEL - standoff (bearing plate) | 4 | |
| 55-1587 | SCREW - channel | 8 | ||
| 55-4953 | LOCKNUT | 8 | ||
| 13 | 99-7334 | PLATE - bearing | 2 | |
| 55-1587 | SCREW - plate | 8 | ||
| 55-4953 | LOCKNUT | 8 | ||
| 14 | 77-1221 | BEARING - flange | 2 | |
| 55-2683 | SCREW - bearing | 4 | ||
| 55-4955 | NUT | 4 | ||
| 15 | 98-2674 | PANEL - rear access | 1 | |
| 99-7779 | INSULATOR - panel | 1 | ||
| 99-5966 | STRIP - gasket (horizontal) | 2 | ||
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 55-1587 | SCREW - panel | 11 | ||
| 16 | 77-1511 | SHAFT - blower | 2 | |
| 17 | 77-2589 | COUPLING - flexible | 2 | |
| 18 | 104-656 | MOTOR - evaporator blower | 1 | |
| 44-4435 | BRUSH (set of 4) | 1 | ||
| 77-1106 | BEARING (brush end) | 1 | ||
| 77-1498 | BEARING (opposite brush end) | 1 | ||
| 44-6053 | RESISTOR (5 ohm, 50W) | 1 | ||
| 99-2675 | NAMEPLATE - arrow | 1 | ||
| 99-6871 | NUTSTRIP - motor | 2 | ||
| 55-3035 | RIVET - strip | 4 | ||
| 55-5016 | SCREW - motor | 4 | ||
| 19 | 99-6872 | SPACER - blower housing | 6 | |
| 20 | 77-1483 | WHEEL - blower (cw, roadside) | 1 | |
| 77-1484 | WHEEL - blower (ccw, curbside) | 1 | ||
| 21 | 77-1834 | RING - inlet | 2 | |
| 55-4339 | SCREW - ring | 10 | ||
| 22 | 98-2673 | HOUSING - blower (left) | 1 | |
| 99-7337 | INSULATOR - housing (inside) | 1 | ||
| 99-6874 | INSULATOR - housing (outside) | 1 | ||
| 99-7332 | INSULATOR - housing (peripheral) | 1 | ||
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 23 | 99-9316 | PLATE - blower housing cover | 2 | |
| 99-6876 | INSULATOR - cover | 2 | ||
| 55-4339 | SCREW - cover | 10 | ||
| 25 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 | ||
| 26 | 55-4422 | FASTENER - snap (filter) | 4 | |
| 55-2995 | SCREW - fastener | 4 | ||
| 55-5015 | LOCKNUT | 4 | ||
| 27 | 11-5458 | FILTER - air | 1 | |
| 99-1908 | STRIP - gasket (0.6 wide) | A/R | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 28 | 99-6877 | BRACKET - expansion valve | 1 | |
| 55-5211 | U-BOLT - expansion valve | 1 | ||
| 55-4560 | NUT (hexstop) | 2 | ||
| 29 | 98-2380 | PANEL - front | 1 | |
| 55-1587 | SCREW - panel | 11 | ||
| 33-1487 | GASKET - panel | 1 | ||
| 99-2789 | NAMEPLATE - TK Logo | 1 | ||
| 30 | 98-2417 | BRACKET - coil (left) | 1 | |
| 31 | 98-2418 | BRACKET - coil (right) | 1 | |
| 55-5033 | SCREW - bracket | 10 | ||
| 55-5035 | LOCKNUT | 10 | ||
| 32 | 98-780 | HOSE - drain (25 ft) | 2 | |
| 55-2684 | CLAMP - hose | 4 |
