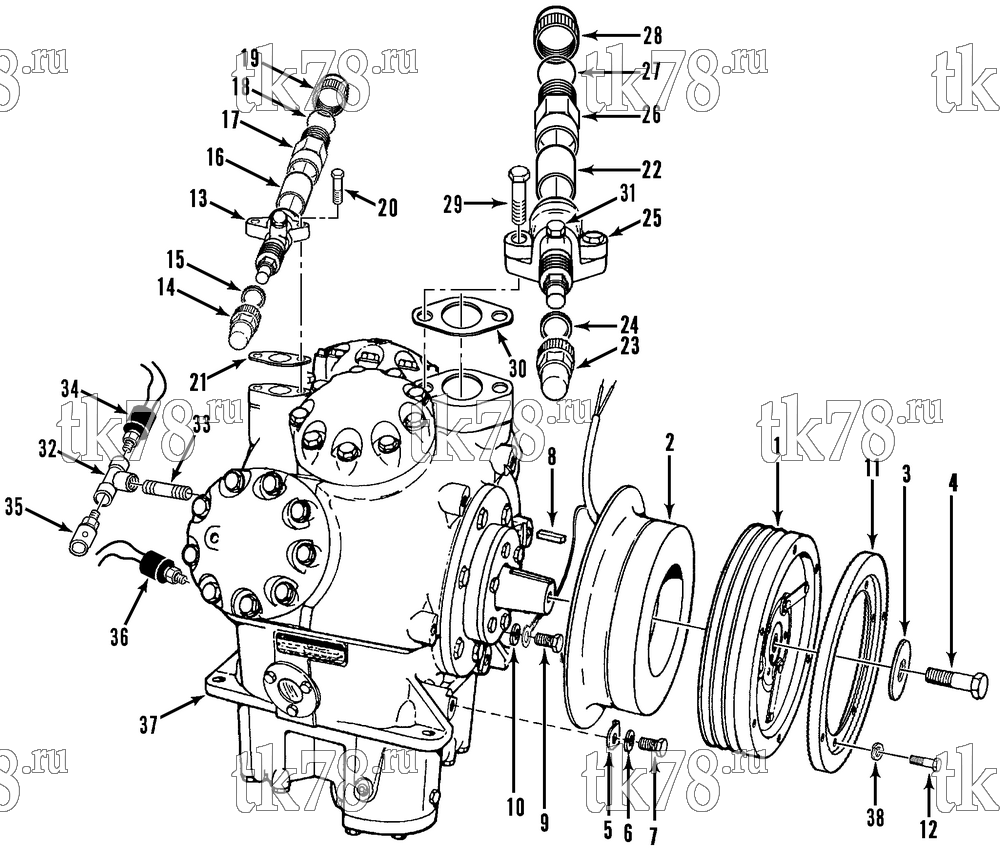

Установкa Thermo King T1-M26 схема COMPRESSOR GROUP (KIT 713466) – 103B10
Обновление от: 3/6/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 307-172 | CLUTCH - pulley (3-3V groove) | 1 | |
| 2 | 44-9345 | COIL - clutch (24VDC) | 1 | |
| 3 | 305-599 | WASHER - notched | 1 | |
| 4 | 305-988 | SCREW - pulley | 1 | |
| 5 | 309-671 | RETAINER - clutch coil | 6 | |
| 6 | 55-375 | LOCKWASHER | 6 | |
| 7 | 55-329 | SCREW - coil | 6 | |
| 8 | 55-8128 | KEY | 1 | |
| 9 | 55-329 | SCREW | 1 | |
| 10 | 305-700 | LOCKWASHER | 1 | |
| 11 | 309-360 | DAMPER - viscous | 1 | |
| 12 | 305-494 | SCREW | 6 | |
| 66-6241 | VALVE & TUBE - discharge (complete) | 1 | ||
| 13 | 302-101 | VALVE - service | 1 | |
| 14 | 66-7664 | CAP - valve (brass) | 1 | |
| 15 | 33-2648 | O-RING | 1 | |
| 16 | 306-1248 | TUBE - discharge | 1 | |
| 17 | 305-111 | ADAPTER | 1 | |
| 18 | 303-245 | O-RING | 1 | |
| 19 | 304-672 | CAP - adapter | 1 | |
| 20 | 55-3674 | SCREW | 2 | |
| 21 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 306-1163 | VALVE & TUBE - suction | 1 | ||
| 22 | 306-971 | TUBE | 1 | |
| 23 | 66-7665 | CAP - valve (steel) | 1 | |
| 24 | 33-2649 | SEAL - cap | 1 | |
| 25 | 306-804 | VALVE | 1 | |
| 26 | 305-109 | ADAPTER | 1 | |
| 27 | 303-289 | O-RING | 1 | |
| 28 | 305-783 | CAP | 1 | |
| 29 | 55-4794 | SCREW | 2 | |
| 30 | 303-700 | GASKET - suction service valve | 1 | |
| 31 | 11-2886 | FITTING - access | 2 | |
| 32 | 55-6048 | TEE | 1 | |
| 33 | 305-352 | NIPPLE | 1 | |
| 34 | 304-746 | SWITCH - hpco | 1 | |
| 35 | 60-248 | KIT - valve | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 66-9162 | ADAPTER - valve | 1 | ||
| 36 | 304-763 | SWITCH - lpco | 1 | |
| 37 | 55-366 | LOCKWASHER | 6 | |
| 38 | 302-138 | COMPRESSOR (4GB) | 1 |
