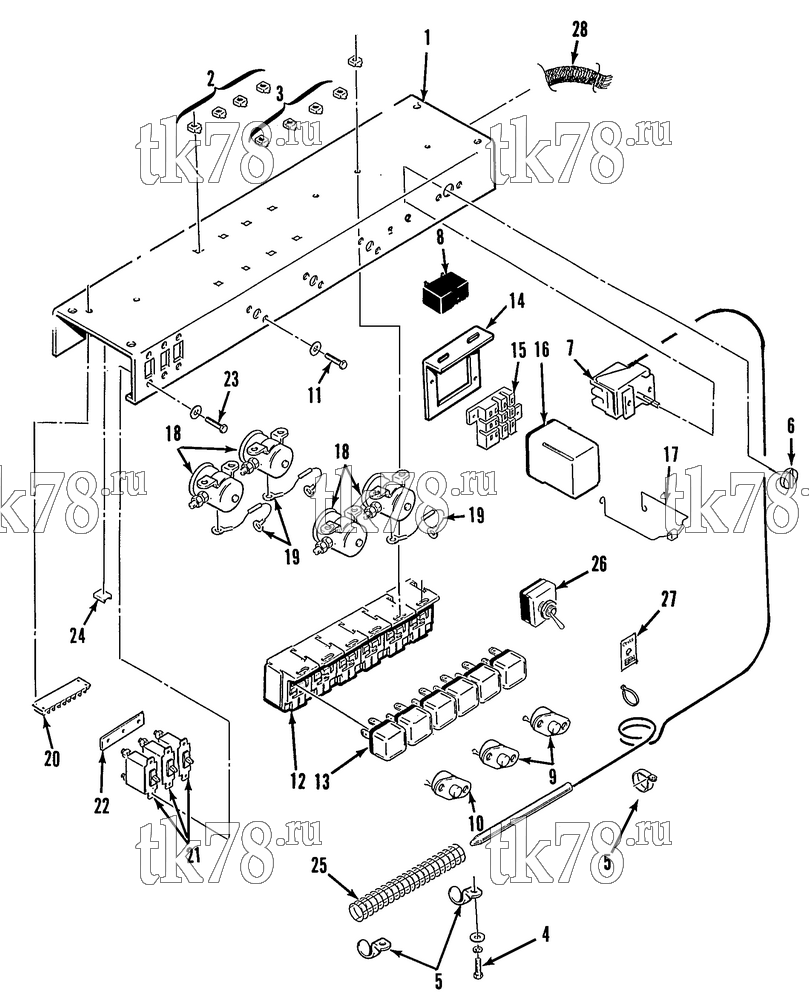

Установкa Thermo King T1-M24 схема CONTROL PANEL (T1-M24) – 84G8
Обновление от: 3/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2670 | PANEL - control | 1 | |
| 91-716 | NAMEPLATE - switch panel | 1 | ||
| 2 | 55-6826 | NUT - captive (1/4-20) | 8 | |
| 3 | 55-3493 | NUT - captive (10-32) | 5 | |
| 4 | 55-3444 | SCREW - clamp | 3 | |
| 55-1511 | LOCKWASHER (#10) | 3 | ||
| 55-431 | FLATWASHER (#10) | 3 | ||
| 55-2752 | NUT | 3 | ||
| 5 | 55-3357 | CLAMP - thermostat bulb | 3 | |
| 6 | 44-1222 | KNOB - temperature control | 1 | |
| 7 | 44-6043 | THERMOSTAT - return air | 1 | |
| 55-1466 | SCREW - thermostat | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER (#6) | 2 | ||
| 8 | 44-6428 | TIMER - solid state | 1 | |
| 55-5279 | SCREW - timer | 1 | ||
| 55-3233 | LOCKWASHER | 1 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-3519 | NUT | 1 | ||
| 9 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 10 | 44-7217 | BREAKER - circuit (15 amp) | 1 | |
| 11 | 55-3843 | SCREW - breaker | 6 | |
| 55-2964 | LOCKWASHER (#10) | 6 | ||
| 55-2001 | FLATWASHER (#10) | 6 | ||
| 55-2965 | NUT (10-32, hex) | 6 | ||
| 12 | 44-5537 | SOCKET - relay | 6 | |
| 55-3027 | SCREW - socket | 2 | ||
| 55-2964 | LOCKWASHER (#10) | 2 | ||
| 55-2001 | FLATWASHER (#10) | 2 | ||
| 13 | 44-9112 | RELAY - mini | 6 | |
| 14 | 99-4268 | BRACKET - socket | 1 | |
| 15 | 44-3184 | SOCKET - relay | 1 | |
| 44-3400 | DIODE - silicone | 1 | ||
| 55-3027 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER (#10) | 2 | ||
| 55-2001 | FLATWASHER (#10) | 2 | ||
| 16 | 44-4025 | RELAY (3pdt, 24V) | 1 | |
| 17 | 99-2027 | SPRING - holddown | 1 | |
| 55-2648 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 18 | 41-3987 | SOLENOID | 4 | |
| 55-145 | SCREW - solenoid | 8 | ||
| 55-419 | LOCKWASHER | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 19 | 44-6007 | DIODE | 3 | |
| 20 | 44-5057 | BOARD - terminal | 1 | |
| 91-717 | MARKSTRIP | 1 | ||
| 55-5903 | SCREW - terminal board | 2 | ||
| 55-5761 | LOCKWASHER (#8) | 2 | ||
| 55-406 | FLATWASHER (#8) | 2 | ||
| 55-295 | NUT (8-32, hex) | 2 | ||
| 21 | 44-5494 | BREAKER - circuit (65 amp) | 3 | |
| 22 | 44-6044 | JUMPER - circuit breaker | 1 | |
| 23 | 55-1466 | SCREW - breaker | 6 | |
| 55-3233 | LOCKWASHER | 6 | ||
| 55-1266 | FLATWASHER (#6) | 6 | ||
| 24 | 99-3281 | MOUNT - cable tie | 5 | |
| 55-5904 | RIVET | 5 | ||
| 25 | 99-6851 | RETAINER - bulb | 1 | |
| 26 | 44-2368 | SWITCH - cycle/reheat | 1 | |
| 27 | 91-718 | NAMEPLATE | 1 | |
| 28 | 44-7809 | HARNESS - control | 1 |
